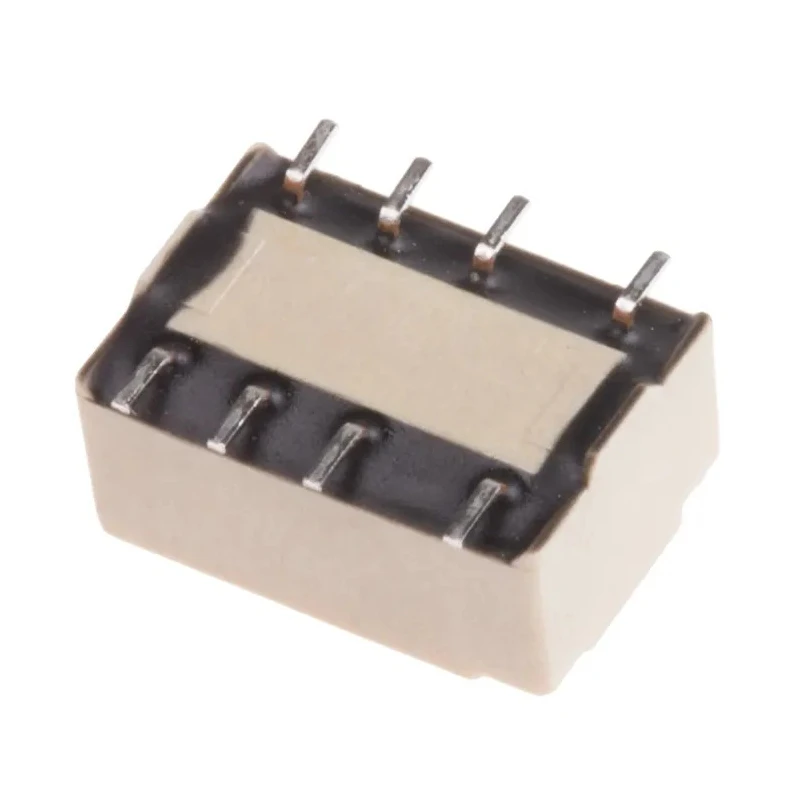

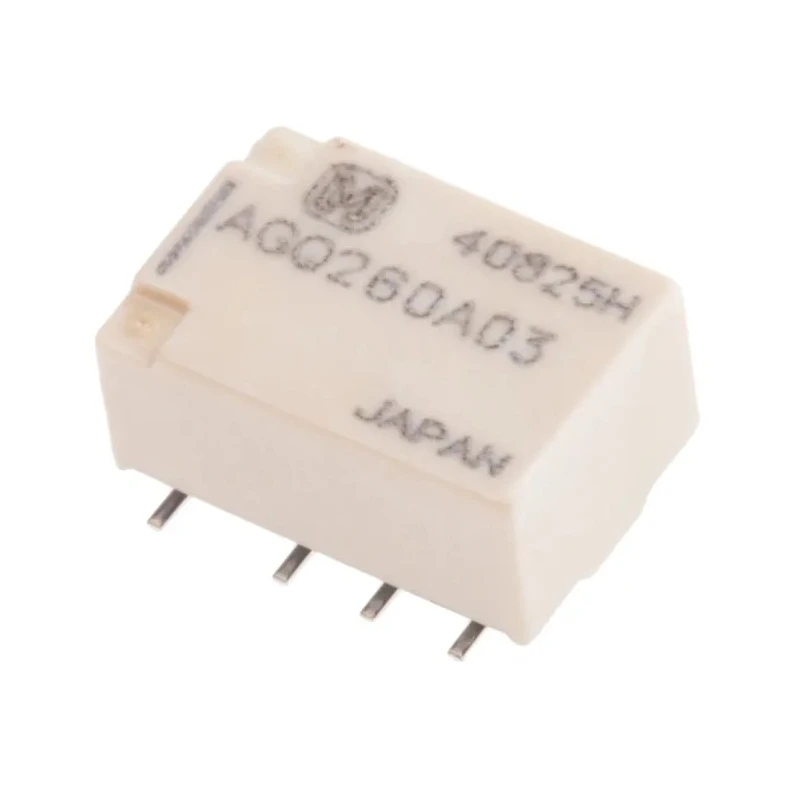

Panasonic PCB Signal Relay 3V DC Coil 1A DPDT AGQ260A03

Free Delivery in India | Lowest Global Shipping Charges

Panasonic PCB Signal Relay 3V DC Coil 1A DPDT AGQ260A03

Name: Panasonic PCB Signal Relay 3V DC Coil 1A DPDT AGQ260A03
Brand: Panasonic
SKU: 213989
Price: 4.76 USD
Availability: InStock



Category Signal Relay Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Height	5.2mm
Length	10.6mm
Model	AGQ260A03
Width	7.7mm
Mount Type	PCB
Contact Material	Gold Plated Silver Aluminium
Series	FTR-C1
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	1A
Terminal type	PCB Terminal
Standards/Approvals	RoHS
Coil Resistance	90Ω
Coil Voltage	3V dc
Switching DC Voltage	110V dc
Switching AC Voltage	125V ac
Coil Power	100mW

Key Features

This relay features a compact design measuring 10.6 x 7.7 x 5.2 mm for PCB mounting.
Coil resistance is 90Ω with coil power consumption at 100mW.
It supports switching AC voltage up to 125V and DC voltage up to 110V.
Constructed with gold plated silver aluminium contact material for enhanced conductivity and durability.
Designed for demanding applications with a temperature range from -40°C to 85°C.
Offers superior surge resistance and vibration/shock resistance for industrial reliability.
Sealed construction allows automatic washing and protects internal components.
Typical usage includes telecommunications, measurement equipment, and consumer electronic applications.

Product Description

Panasonic AGQ260A03 PCB Signal Relay features a 3V DC coil voltage and a switch current rating of 1A in a DPDT (Double Pole Double Throw) contact configuration. Its compact size of 10.6 x 7.7 x 5.2 mm makes it ideal for PCB mounting applications where space and reliability are critical.

This relay belongs to the FTR-C1 series, known for its high sensitivity and outstanding surge resistance, rated at 2500V 2x10 μs and 1500V 2x160 μs. The coil resistance of 90 ohms and power consumption of only 100mW contribute to efficient operation with minimal power loss.

Its gold plated silver aluminium contacts provide superior conductivity and long service life. The relay operates reliably within a wide temperature range from -40°C to 85°C, making it suitable for harsh industrial conditions.

The sealed construction ensures protection from environmental factors and enables automatic washing processes, extending the relay's durability. This makes it a preferred choice for telecommunications equipment, telephone switchboards, security systems, measurement instruments, and consumer electronic devices, where compact, reliable switching is essential.

Compact design with small footprint and low height for efficient PCB integration. High surge resistance enables operation in demanding electrical environments. Functional shock and vibration resistance support stable performance under mechanical stress.

Sealed construction suitable for automated washing and harsh conditions. Applications include telecommunications, security systems, measurement equipment, and consumer electronics. Gold plated contacts for enhanced electrical performance and longevity.

Meets RoHS standards ensuring environmental compliance.

Manufactured in Japan, Panasonic's AGQ260A03 relay combines technical excellence with superior build quality. Ideal for industrial, laboratory, construction, and electronics assembly uses requiring reliable Signal Relay switching with minimal footprint.
