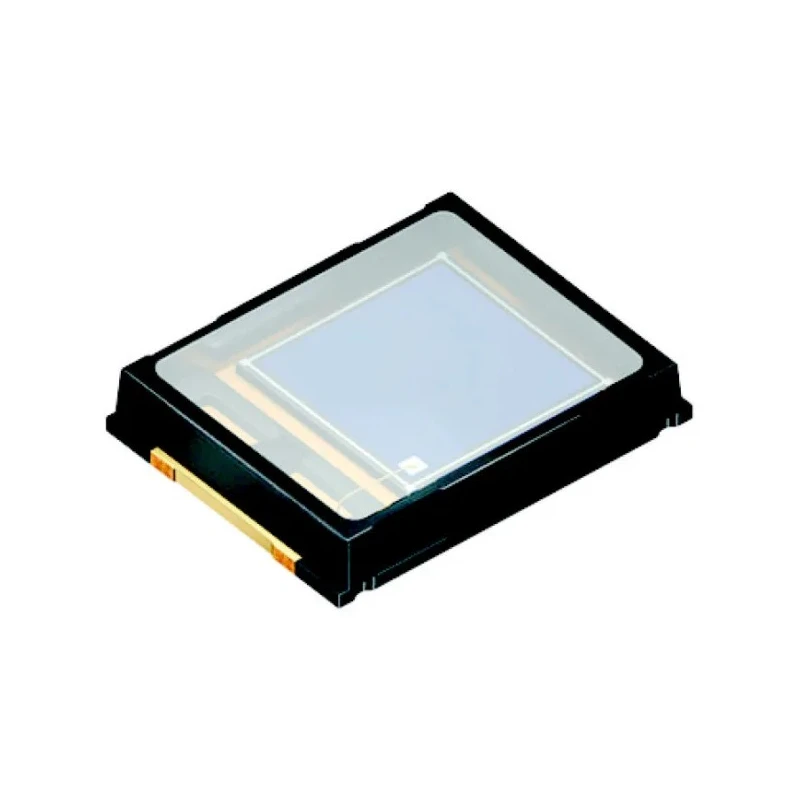

ams OSRAM Photodiode 400 to 1100 nm, ±60 ° Angle of Half Sensitivity, Surface Mount Top LED SFH 2201

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM Photodiode 400 to 1100 nm, ±60 ° Angle of Half Sensitivity, Surface Mount Top LED SFH 2201

Name: ams OSRAM Photodiode 400 to 1100 nm, ±60 ° Angle of Half Sensitivity, Surface Mount Top LED SFH 2201
Brand: ams OSRAM
SKU: 419478
Price: 0.72 USD
Availability: InStock



Category LED Brand ams OSRAM Condition New

Specifications

Country of Origin	Malaysia
Brand	ams OSRAM
Height	0.85mm
Length	5.09mm
Model	SFH 2201
Packaging	Tape & Reel
Width	5.1mm
Mount Type	Surface
Series	SFH
Short Circuit Current	71μA
Maximum Operating Temperature	85°C
Package Type	Top LED
Minimum Operating Temperature	-40°C
Polarity	Forward
Dark Current	1nA
Open Circuit Voltage	365V
Standards/Approvals	EIA 481-D, ANSI/ESDA/JEDEC JS-001 - HBM, JEDEC J-STD-020E, IEC 60286-3
Number of Pins	2
Typical Fall Time	2μs
Wavelength of Peak Sensitivity	950nm
Spectrums Detected	400 to 1100 nm
Breakdown Voltage	20V
Minimum Wavelength Detected	300nm
Maximum Wavelength Detected	1100nm
Angle of Half Sensitivity	±60 °

Key Features

Detects light in 400 to 1100 nm wavelength range with ±60 ° angle sensitivity.
Peak sensitivity wavelength is 950 nm for precise detection.
Compact surface mount Top LED package with 2 pins.
Wide operating temperature range from -40°C to 85°C.
Typical rise and fall times of 2 microseconds enable fast response.
Breakdown voltage of 20V and open circuit voltage of 365V.
Low dark current of 1 nA and short circuit current of 71 μA.
Meets standards EIA 481-D, ANSI/ESDA/JEDEC JS-001, JEDEC J-STD-020E, IEC 60286-3.

Product Description

ams OSRAM SFH 2201 is a high-sensitivity photodiode optimized for detection of light in the 400 to 1100 nm spectrum. The device incorporates a surface mount Top LED package featuring a compact 5.09 mm length, 5.1 mm width, and 0.85 mm height, with a ±60 ° angle of half sensitivity. This photodiode is ideal for industrial and electronic applications requiring precise light detection with rapid response times.

Designed for reliability, the SFH 2201 operates efficiently in a wide temperature range from -40°C to 85°C. It demonstrates low dark current of 1 nA and a short circuit current of 71 μA, enabling accurate light measurement under various environmental conditions.

The photodiode features a peak sensitivity wavelength of 950 nm and is suitable for use in optical sensing, light measurement, and other optoelectronics industrial applications. Its package is supplied on tape and reel, facilitating automated pick-and-place assembly. The device adheres to international standards such as EIA 481-D, ANSI/ESDA/JEDEC JS-001, JEDEC J-STD-020E, and IEC 60286-3, ensuring high quality and compatibility in manufacturing processes.

This photodiode series is manufactured in Malaysia, holding ams OSRAM's reputation for precision and performance. It is extensively used in electronics components manufacturing, industrial automation, and sensor technologies.

The photodiode has a peak sensitivity wavelength of 950 nm. Compact surface mount package with Top LED and 2 pins. Operating temperature: -40°C to 85°C for wide environmental tolerance. Fast typical rise and fall times of 2 μs enable rapid light detection.

Low dark current of 1 nA supports high accuracy measurements. Breakdown voltage rated at 20V, open circuit voltage at 365V. Complies with industry standards for quality and reliability. Packaging on tape and reel for seamless automated assembly.
