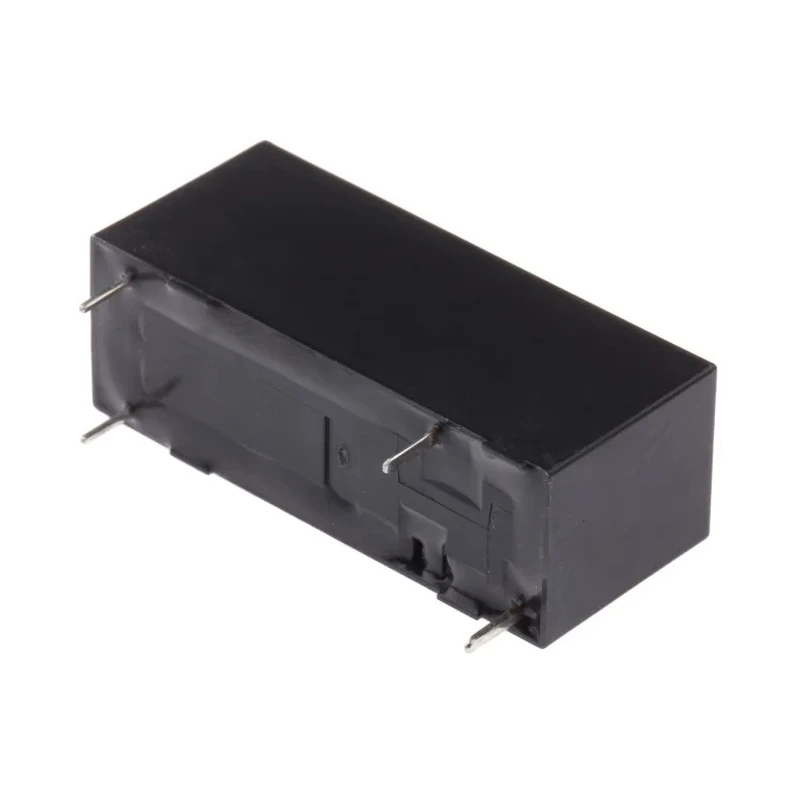

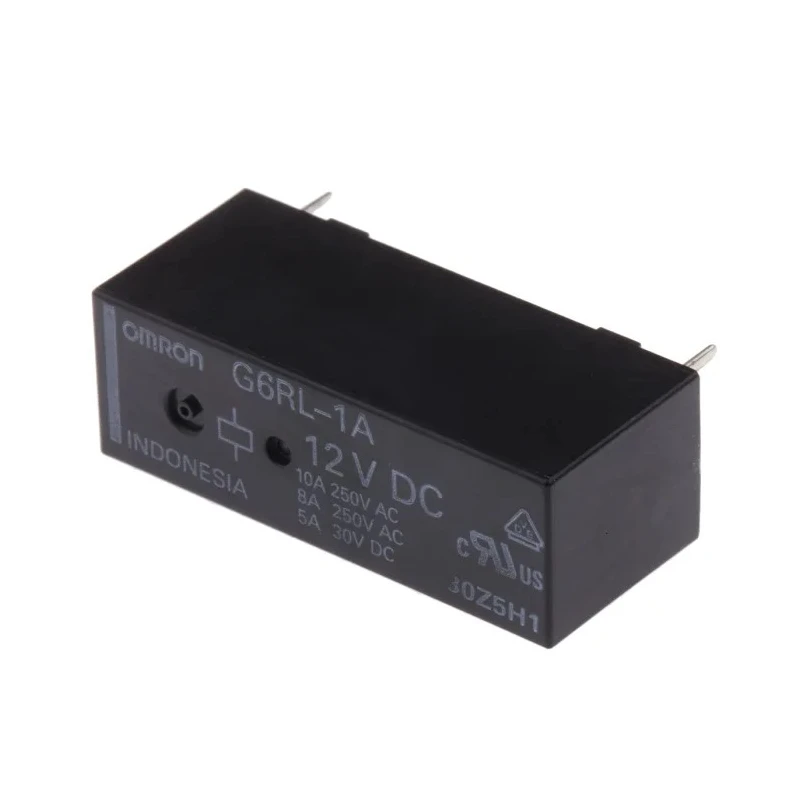

Omron PCB Power Relay, 12V DC Coil, 10A Switching Current, SPST Contact Configuration G6RL-1A DC12
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | G6RL-1A DC12 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Low Profile | 12.3mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 654Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 220mW |
| Low coil power consumption | 220mW (typical) |
Key Features
- This relay is designed for PCB mounting and employs solder terminal type.
- It has a low coil power consumption of 220mW typical, improving energy efficiency.
- The device supports switching DC voltage up to 300V and AC voltage up to 400V.
- The relay operates reliably within a temperature range of -40°C to 85°C.
- Constructed with silver alloy contacts to ensure durability and reduce contact resistance.
- Compact low-profile design with maximum height of 12.3mm enables efficient spacing on PCBs.
- The coil resistance measures 654Ω contributing to stable operation.
- The switching power rating is 2.5kVA, suitable for various electrical control applications.
Product Description
Omron G6RL-1A DC12 is a high-quality PCB power relay designed with a 12V DC coil and supports a 10A switching current in an SPST (Single Pole Single Throw) contact configuration. This relay is engineered for reliable and efficient switching applications in industrial electronics and automation systems.
Its compact size with a low profile height of 12.3 mm allows for space-saving PCB mounting, while solder terminals provide secure electrical connections. The relay features silver alloy contacts for enhanced conductivity and longevity, and a typical coil power consumption of just 220mW, which optimizes energy usage.
The relay supports switching of DC voltage up to 300V and AC voltage up to 400V, with switching power capacity of 2.5 kVA, making it suitable for a wide range of control and signal conditioning applications in manufacturing, automation, and other electrical systems.
Operating temperature ranges from -40°C to 85°C, ensuring dependable performance under varying environmental conditions. The coil resistance is 654Ω, contributing to stable coil operation and reduced energy waste.
This product complies with RoHS standards, indicating its environmental safety and suitability for use in modern electrical equipment. Originating from Indonesia, the G6RL-1A DC12 relay is ideal for industrial, manufacturing, laboratory, and commercial use cases requiring efficient and precise power relay switching.
This relay supports PCB mounting and uses solder terminals. Low coil power consumption of 220mW reduces energy costs. Switching current capacity of 10A for robust electrical control. Supports switching voltages of 300V DC and 400V AC.
Compact design with a 12.3mm max height fits limited PCB space. Silver alloy contacts provide durability and low resistance. Broad temperature range operation (-40°C to 85°C) ensures reliability. Compliant with RoHS standards for environmental safety.
Explore more Power Relays and related products at EnvMart for your industrial and electrical automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum switching current of 10A.

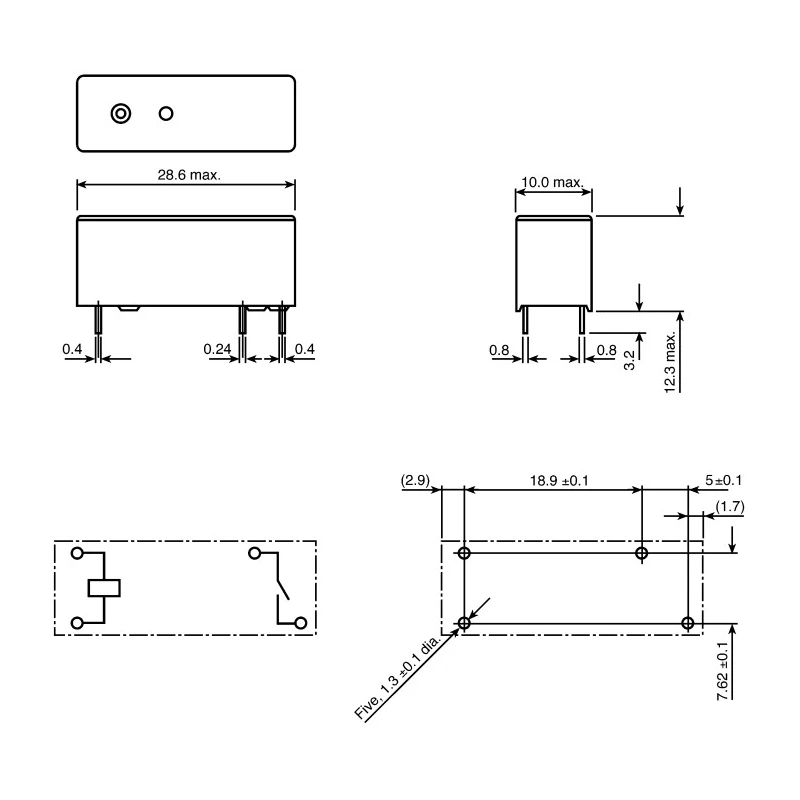

The relay has a height of 12.3mm, a length of 28.5mm, and a width of 10mm.
The coil voltage for this relay is 12V DC.
It features a Single Pole Single Throw (SPST) contact configuration.
This relay operates reliably within a temperature range of -40°C to 85°C.
It uses solder terminals for secure electrical connections.
The coil resistance is measured at 654Ω.
It supports switching DC voltage up to 300V and AC voltage up to 400V.
The contacts are made of silver alloy, which enhances conductivity and reduces contact resistance.
The typical coil power consumption is 220mW, which contributes to energy efficiency.
Yes, it complies with RoHS standards for environmental safety.
The switching power rating is 2.5 kVA, suitable for various electrical control applications.
