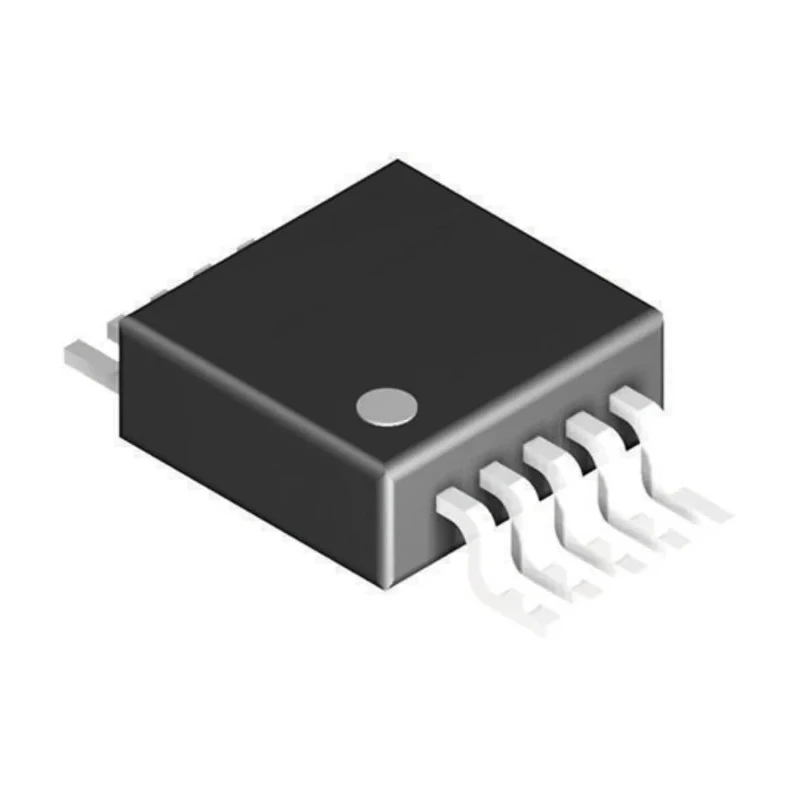

Texas Instruments Operational Amplifier 31 MHz, 10-Pin VSSOP, 5.5V OPA2835IDGS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.95mm |
| Length | 3.1mm |
| Model | OPA2835IDGS |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | OPA2835 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | VSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 10 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 31MHz |
| Input Bias Current | 530 nA |
| Slew Rate | 160V/μs |
| Input Offset Current | 100 nA |
Key Features
- Dual channel operational amplifier suitable for precision analog signal applications.
- Package type VSSOP with a compact form factor of 3.1 mm × 3.1 mm × 0.95 mm.
- Low input offset voltage of 1850 microvolts for high accuracy.
- Wide operating temperature range from -40°C to 125°C for industrial uses.
- Slew rate of 160 V/μs ensures rapid response in dynamic circuits.
- Maximum output current of 40mA for driving moderate loads.
- Input bias current of 530 nA, minimizing power consumption in sensitive inputs.
- Compliant with RoHS environmental standards for safe and sustainable use.
Product Description
Texas Instruments OPA2835IDGS is a dual channel operational amplifier designed for use in electronic components requiring precise and fast analog signal amplification. Operating with a gain bandwidth product of 31 MHz, this device is packaged in a low-profile 10-Pin VSSOP form factor measuring 3.1mm in length, 3.1mm in width, and 0.95mm in height, making it suitable for compact PCB designs.
The amplifier supports supply voltages ranging from 2.5V to a maximum of 5.5V, enabling flexibility in design power requirements. It offers an input offset voltage of 1850 μV and an input bias current of 530 nA, which contribute to high accuracy and low noise performance. The fast slew rate of 160 V/μs facilitates rapid amplification response, critical for dynamic and high-frequency applications.
Designed to operate reliably over temperature extremes from -40°C to 125°C, this amplifier is suitable for demanding industrial and automotive environments. It provides a maximum output current of 40mA, suitable for driving intermediate loads without additional amplification stages.
Compliant with RoHS directives, the OPA2835IDGS meets environmental and safety regulations for electronics manufacturing. The device’s surface mount VSSOP package supports high-density PCB layouts and automated assembly processes.
Common applications include signal conditioning, data acquisition systems, industrial instrumentation, and communication devices requiring precise operational amplifiers with low offset and high-speed capabilities.
Dual channel operational amplifier with 31 MHz gain bandwidth. Compact 10-Pin VSSOP surface mount package. Wide supply voltage range from 2.5V to 5.5V. Low input offset voltage and bias current. High slew rate for rapid signal response.
Wide operating temperature range suitable for industrial use. RoHS compliant for environmental safety. Explore more high-performance Operational Amplifiers and related electronic components at EnvMart for your industrial and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 31 MHz, making it suitable for high-speed applications.
It operates reliably over a wide temperature range from -40°C to 125°C, suitable for industrial environments.
The maximum supply voltage for this operational amplifier is 5.5V, allowing flexibility in design power requirements.
It can provide a maximum output current of 40mA, suitable for driving moderate loads.
The input offset voltage is 1850 μV, which contributes to its high accuracy in signal amplification.
It is packaged in a 10-Pin VSSOP format, with dimensions of 3.1 mm × 3.1 mm × 0.95 mm, suitable for compact PCB designs.
The slew rate is 160 V/μs, ensuring rapid response in dynamic circuits.
The input bias current is 530 nA, which helps minimize power consumption in sensitive applications.
Yes, this operational amplifier is compliant with RoHS environmental standards, ensuring safe and sustainable use.
The dimensions are 3.1 mm in length, 3.1 mm in width, and 0.95 mm in height, making it compact for various applications.
It is commonly used in signal conditioning, data acquisition systems, industrial instrumentation, and communication devices.
This operational amplifier features two channels, allowing for dual signal amplification.
