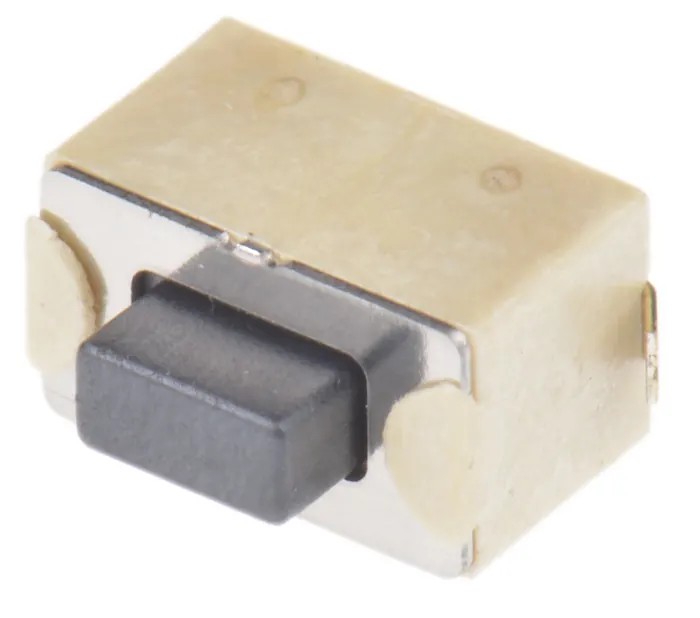

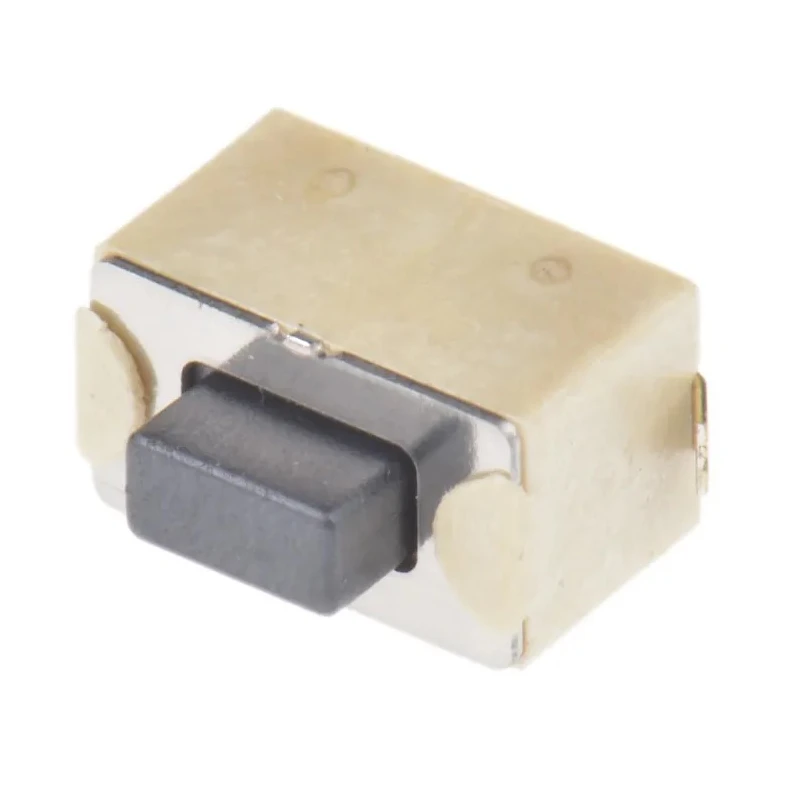

Wurth Elektronik Black Tactile Switch SPST 50mA 12 V dc Surface Mount 1.5 mm Actuator 434123050816

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Black Tactile Switch SPST 50mA 12 V dc Surface Mount 1.5 mm Actuator 434123050816

Name: Wurth Elektronik Black Tactile Switch SPST 50mA 12 V dc Surface Mount 1.5 mm Actuator 434123050816
Brand: Wurth Elektronik
SKU: 417464
Price: 70.72 INR
Availability: InStock



Category Tactile Switch Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	5mm
Length	6mm
Width	3.5mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-40°C
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Black
Actuator Length	1.5mm
Contact DC Voltage	12V dc
Actuator Style	Tactile
Actuator Orientation	Straight
Switch Contact Current	50mA
Operating Force	1.57N
Mechanical Life	50000Cycles

Key Features

The switch has a mechanical life of 50000 cycles guaranteeing durable performance.
It operates over a temperature range from -40°C to 85°C with a 1.57N operating force.
Constructed with silver cladded stainless steel contacts and a stainless steel cover for reliability.
Designed for momentary switch operation with straight tactile actuator style.
Compact size with length 6 mm, width 3.5 mm, and height 5 mm.
Non-illuminated actuator suitable for PCB surface mounting applications.

Product Description

Wurth Elektronik model 434123050816 is a black tactile switch with a 1.5 mm actuator designed for surface mounting in electronic and electrical applications. It features a Single Pole Single Throw (SPST) contact configuration that supports an operating current of 50mA at 12 V dc. The switch operates momentarily with a straight tactile actuator style and a tactile operating feel, ideal for precise and reliable user input.

The switch dimensions are compact, measuring 6 mm in length, 3.5 mm in width, and 5 mm in height, making it suitable for dense PCB layouts. It is built with silver cladded stainless steel contacts and a stainless steel cover, ensuring mechanical and environmental durability.

Designed to withstand harsh environments, this tactile switch operates between -40°C and 85°C and endures up to 50000 mechanical cycles. Its operating force of 1.57N provides consistent tactile feedback. The switch is RoHS compliant, confirming environmentally friendly manufacturing standards.

This component is commonly used in industrial automation systems, electrical equipment, control panels, and instrumentation where reliable momentary tactile feedback is required. The switch features a black actuator color and a straight actuator orientation suitable for surface mounting.

The tactile switch is non-illuminated and designed specifically for momentary switching applications. Its single pole, single throw configuration supports reliable on-off switching functions. The compact size and robust materials make it suitable for industrial and electronic control use cases.

Designed according to JEDEC J-STD 020 standards for soldering and thermal resistance. Explore the full range of Tactile Switches in the Electronics & Electricals > Switches & Sockets category at EnvMart for compatible and complementary products.
