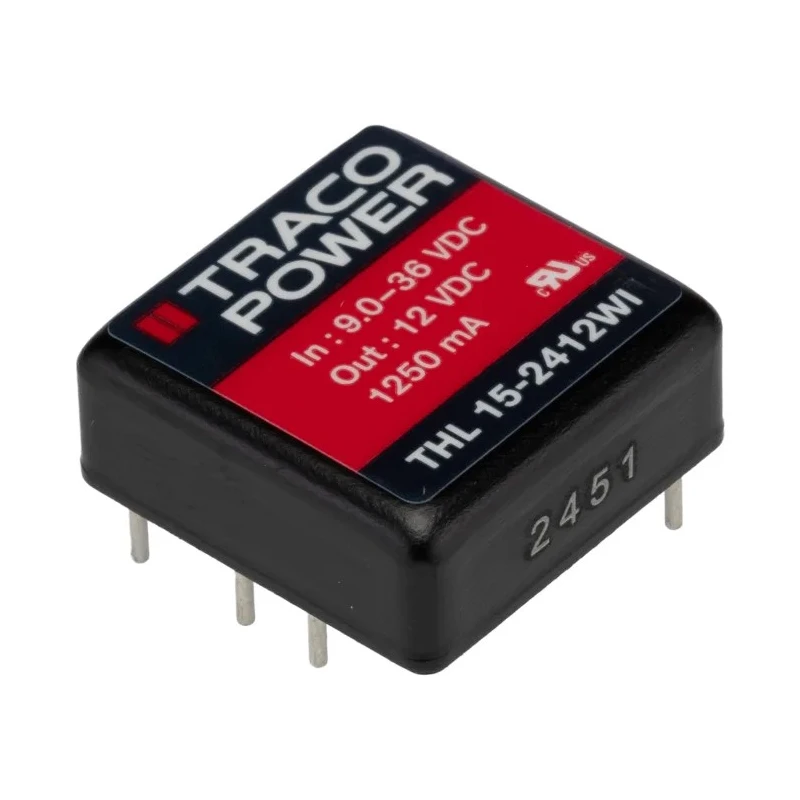

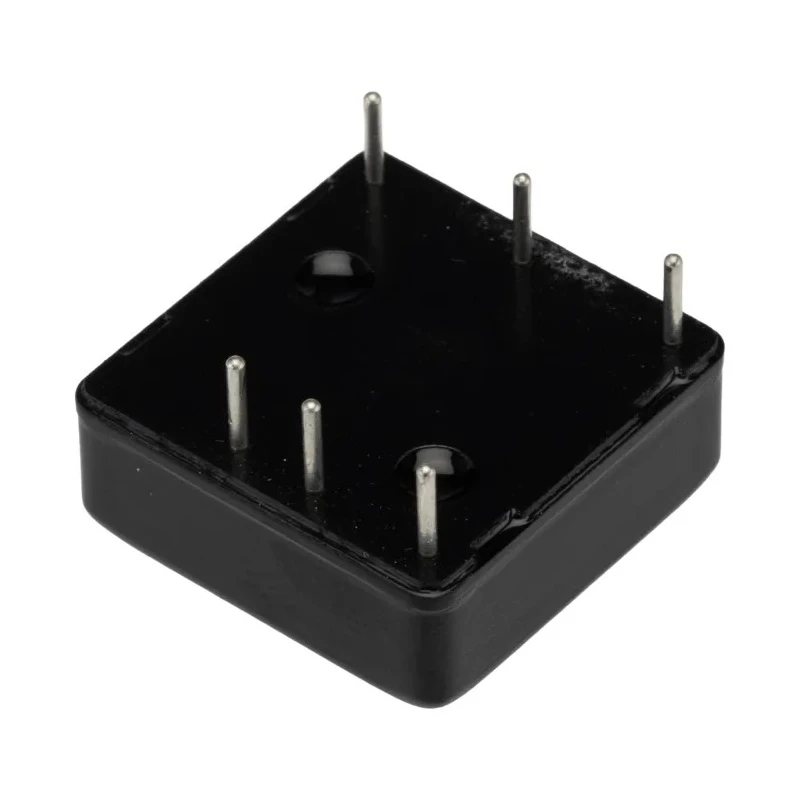

TRACOPOWER DC/DC Converter 12V DC Output 1.25A 15W 9-36V DC Input Metal PCB Mount THL 15-2412WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THL 15WI DC/DC Converter, 12V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 25.4mm |
| Model | THL 15-2412WI |
| Depth | 10.16mm |
| Width | 25.4mm |
| Mount Type | PCB |
| Series | THL 15WI |
| Maximum Operating Temperature | 70°C |
| Package Type | Metal |
| Minimum Operating Temperature | -40°C |
| MTBF | 1374700h |
| Number of outputs | 1 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1.25A |
| Isolation Voltage | 1kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Compact 1 x 1 inch metal package with PCB mount design.
- High efficiency of up to 88%, suitable for extended operation.
- Isolation voltage rating of 1kV DC ensures safety in industrial applications.
- Operating temperature range from -40°C to 70°C without derating.
- Includes internal Class A filter for low noise operation.
- Overload, overvoltage and short circuit protection included.
- Remote On/Off and output trim functionality for precise control.
- Mean time between failures (MTBF) of 1,374,700 hours for reliability.
Product Description
TRACOPOWER THL 15-2412WI DC/DC Converter offers a robust and efficient solution for power conversion needs in industrial and electronic applications. Featuring a 12V DC output at 1.25A within a compact and shielded metal 25.4mm x 25.4mm x 10.16mm PCB mount package, this 15 Watt converter is designed for reliability and performance.
The wide 9-36V input voltage range with a 4:1 ratio allows it to adapt seamlessly to variable power sources, ensuring versatility across mobile, instrumentation, and communication equipment. The internally encapsulated design includes a fully integrated Class A filter which greatly reduces electromagnetic interference and noise.
Its operational temperature range from -40°C to +70°C without derating makes it suitable for harsh environments. Protection features such as overload, overvoltage, and short circuit guards enhance safety and durability.
The 1kV DC isolation voltage adds an extra layer of insulation between input and output, critical for sensitive electronics. The unit supports remote On/Off switching and output voltage trim for fine-tuned voltage management.
This converter series demonstrates a high mean time between failures (MTBF) of 1,374,700 hours, indicating exceptional reliability for demanding industrial and commercial uses. Typical uses include distributed power architectures, industrial electronics, communication systems, and mobile equipment requiring steady DC voltage conversion with low noise and high efficiency.
Compact 1 x 1 inch metal package with PCB mount design. Wide 9-36V DC input voltage range with 4:1 ratio. Output voltage of 12V DC at 1.25A current rating. 15 Watt maximum output power with 88% efficiency. Isolation voltage of 1kV DC for enhanced safety.
Operating temperature from -40°C to 70°C without derating. Protection features include overload, overvoltage, and short circuit. Remote On/Off and output voltage trim features. Includes Class A internal EMI filter for low noise operation.
Reliable MTBF of 1,374,700 hours. Optimize your power systems with the TRACOPOWER THL 15-2412WI DC/DC Converter, engineered for industrial, telecommunications, instrumentation, and mobile power applications. Explore more DC/DC Converters and voltage converters in the Electronics & Electricals category at EnvMart for your power supply requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TRACOPOWER THL 15-2412WI provides a 12V DC output with a current rating of 1.25A.
This converter accepts a wide input voltage range of 9-36V DC, allowing for a 4:1 input ratio.
The maximum output power of this model is 15W.
The dimensions of the TRACOPOWER THL 15-2412WI are 25.4mm x 25.4mm x 10.16mm.
It has an efficiency rating of up to 88%.
The operating temperature range is from -40°C to +70°C without derating.
This converter includes overload, overvoltage, and short circuit protection features.
Yes, it supports remote On/Off switching for precise control.
The isolation voltage rating is 1kV DC, ensuring safety in industrial applications.
The mean time between failures (MTBF) for this model is 1,374,700 hours, indicating high reliability.
This model is designed for PCB mounting.
The country of origin for this converter is Taiwan.
