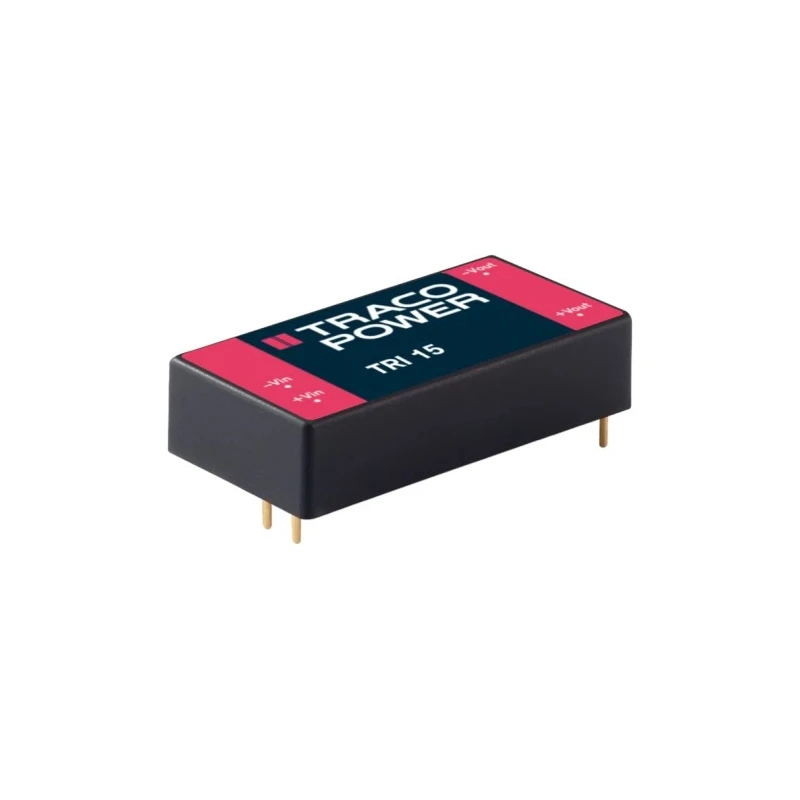

TRACOPOWER DC/DC Converter 24V DC Output 625mA 15 W Through Hole DIP Package TRI 15-1215

TRACOPOWER TRI 15-1215 is a reliable DC/DC converter designed to deliver a stable 24 V DC output at 625 mA current with 15 W maximum output power. Featuring a through-hole DIP package, it is suitable for industrial and electronic applications where robust and efficient voltage conversion is required.

This converter accepts input voltages ranging from 9 V to 18 V DC, providing flexibility for various voltage sources. It offers reinforced I/O isolation rated for 4200 VAC, and an ultra-high isolation peak voltage of 8000 VDC (1 second) for enhanced electrical safety and noise immunity. With an efficiency of up to 88%, it minimizes energy loss and heat generation.

The product dimensions are compact, with 50.8 mm length, 25.4 mm width, and 12 mm depth, making it easy to integrate into circuits. The operating temperature range of -40°C to 85°C allows it to function reliably in demanding thermal environments.

Additional features include protections against overload, overvoltage, and short circuit to enhance longevity and operational safety. The device utilizes a standard 5-pin through-hole mount configuration, simplifying installation on printed circuit boards (PCBs).

With a mean time between failures (MTBF) of 1,428,000 hours, this converter ensures long-term dependable operation. It is manufactured in Taiwan, Province Of China, and comes with a 3-year warranty.

Operates with input voltage range of 9 V to 18 V DC. Provides reinforced isolation at 4200 VAC and peak 8000 VDC for 1 second. High efficiency up to 88% ensures minimal power loss. Compact through-hole DIP package with 5 pins for easy PCB mounting.

Wide operating temperature range from -40°C to 85°C. Integrated protections against overload, overvoltage, and short circuits. MTBF of 1,428,000 hours ensures reliable performance. Suitable for industrial, electronics, and power management applications.

Manufactured in Taiwan with 3-year product warranty.

This DC/DC Converter is ideal for use in industrial automation, electronic equipment, power supply designs, and other applications requiring efficient voltage conversion with high isolation and reliability. Discover more high-quality TRACOPOWER products and voltage converters in the Electronics & Electricals section at EnvMart.
