TE Connectivity PCB Signal Relay 12V DC Coil, 2A Switching Current, DPDT Contact Configuration V23079-B1203-B301

Free Delivery in India | Lowest Global Shipping Charges

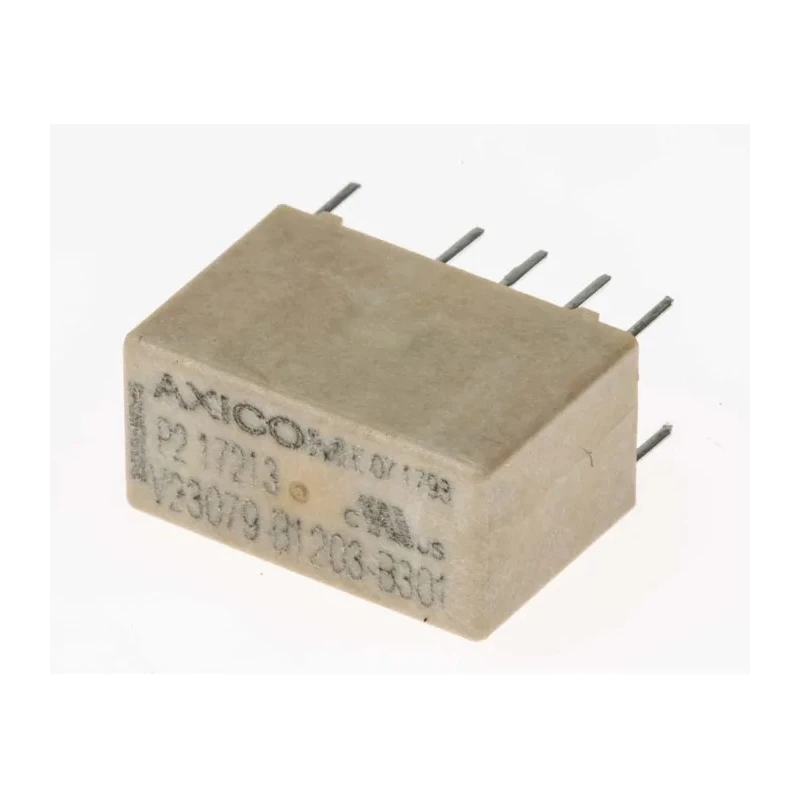

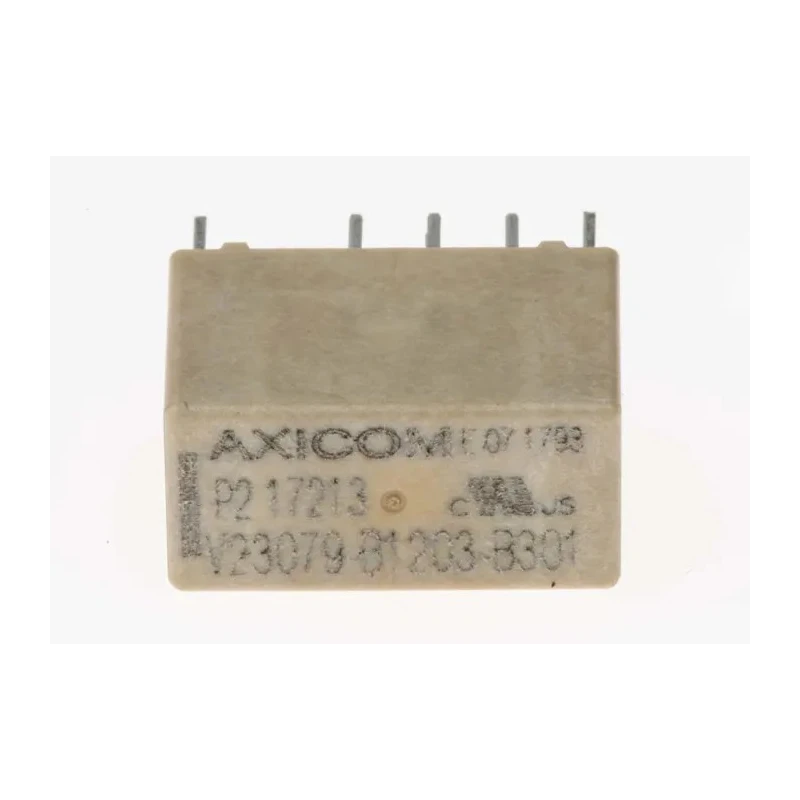

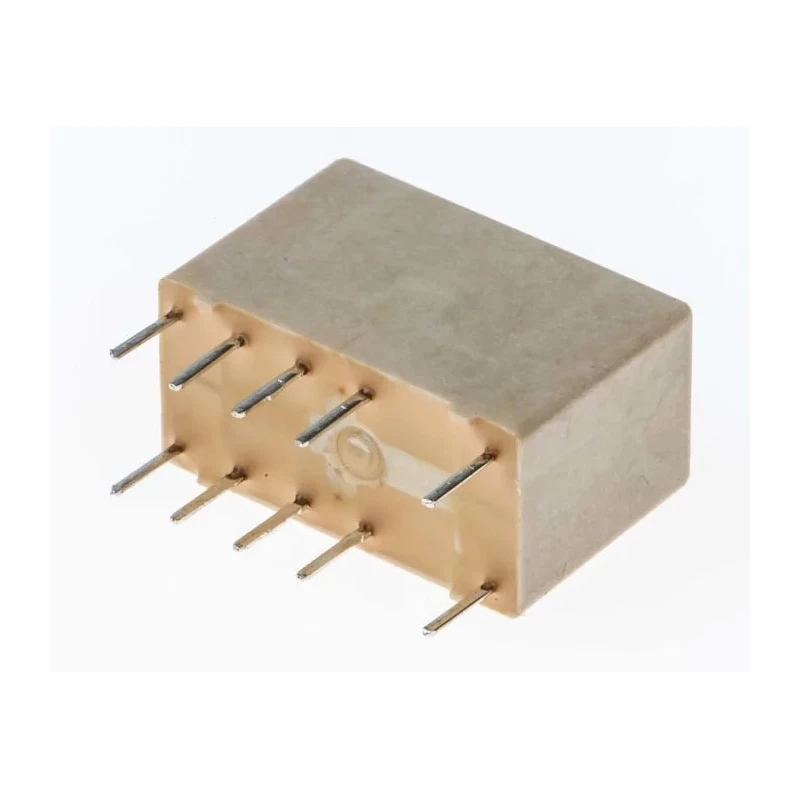

TE Connectivity PCB Signal Relay 12V DC Coil, 2A Switching Current, DPDT Contact Configuration V23079-B1203-B301

Name: TE Connectivity PCB Signal Relay 12V DC Coil, 2A Switching Current, DPDT Contact Configuration V23079-B1203-B301
Brand: TE Connectivity
SKU: 397717
Price: 2.88 USD
Availability: InStock



Category Signal Relay Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	9.8mm
Length	14.5mm
Model	V23079-B1203-B301
Width	7.2mm
Mount Type	PCB
Contact Material	Gold Plated
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	2A
Terminal type	Solder
Standards/Approvals	RoHS
Coil Resistance	1029Ω
Coil Voltage	12V dc
Switching DC Voltage	220V dc
Switching AC Voltage	250V ac
Coil Power	140mW
Switching Power	140mW
TE Connectivity PCB Signal Relay, 12V dc Coil, 2A, DPDTBrand	TE Connectivity

Key Features

This signal relay features a compact, slimline and low-profile design ideal for space-saving PCB assemblies.
It offers bifurcated, gold-plated contacts ensuring reliable signal transmission.
The relay is immersion cleanable with RTIII and IP67 protection and conforms to V-0 flammability classification standards.
It supports a maximum switching AC voltage of 250V and DC voltage of 220V, suitable for a variety of electrical applications.
Operating temperature range from -40°C to 85°C allows it to perform reliably in extreme environments.
The coil has a resistance of 1029 Ohms and consumes 140mW power, promoting energy efficiency.
Gold plated contact material enhances durability and corrosion resistance.
Terminal type is solder, enabling easy PCB mounting and connections.

Product Description

TE Connectivity model V23079-B1203-B301 is a miniature PCB Signal Relay designed with a 12V DC coil and a 2A switching current rating featuring DPDT (Double Pole Double Throw) contact configuration. This product is engineered for applications requiring high sensitivity and low power consumption within a compact, slimline, and low-profile form factor.

The relay employs bifurcated, gold plated contacts, enabling excellent endurance and reliability, making it highly suitable for demanding industrial and commercial environments. It is immersion cleanable and meets RTIII and IP67 ingress protection standards along with V-0 flammability rating, ensuring safe operation under challenging conditions.

Rated for a maximum switching AC voltage of 250V and DC voltage of 220V, this relay supports diverse electrical and automation uses, maintaining stable operation between -40°C to 85°C ambient temperature. Its coil resistance of 1029Ω and coil power consumption of 140mW contribute to efficient low power operation.

Compact dimensions (14.5mm length, 9.8mm height, 7.2mm width) facilitate integration into confined PCB layouts. The solder terminal type allows straightforward mounting and secure electrical connections on PCB assemblies. Gold plated contacts further assure corrosion resistance and enhanced lifetime.

Applications span telecommunications equipment such as PABX and VOIP systems, consumer electronics including set-top boxes and Hi-Fi systems, office equipment, medical devices, automotive electronics, and control equipment in industrial automation.

The relay complies with RoHS standards, supporting environmental and regulatory requirements. This miniature Signal Relay is ideal for communications and control equipment requiring space-saving and energy-efficient components.

Gold plated, bifurcated contacts deliver reliable and stable switching. Robust construction with IP67 rating protects against dust and immersion, suitable for harsh industrial environments. Wide operating temperature range ensures performance under extreme conditions.

Compact size supports integration in dense PCB assemblies. Explore EnvMart's extensive catalog of industrial relays and signal conditioning products for diverse electronics and electrical engineering needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business
