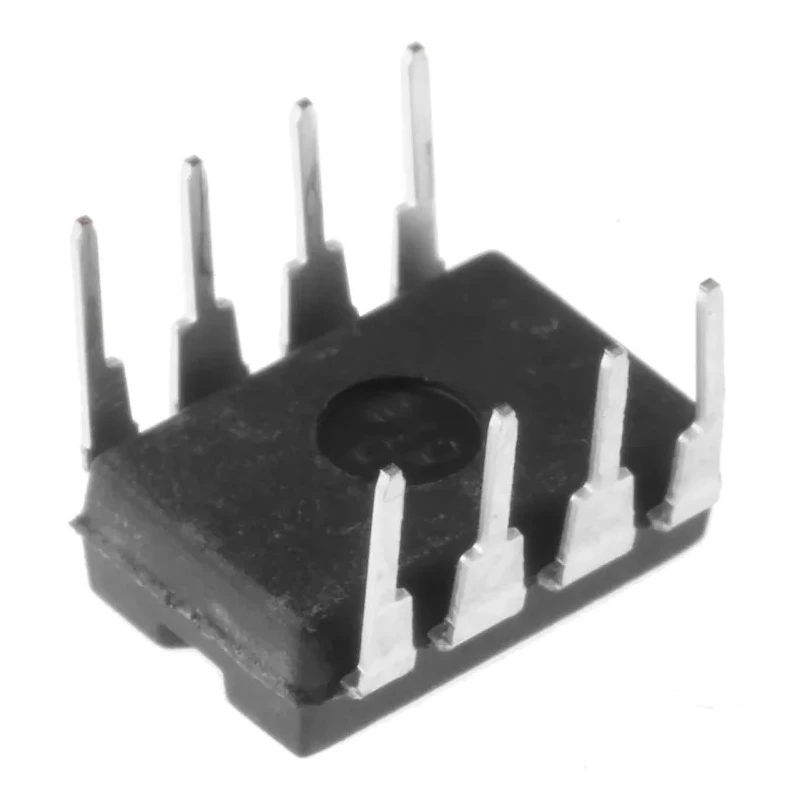

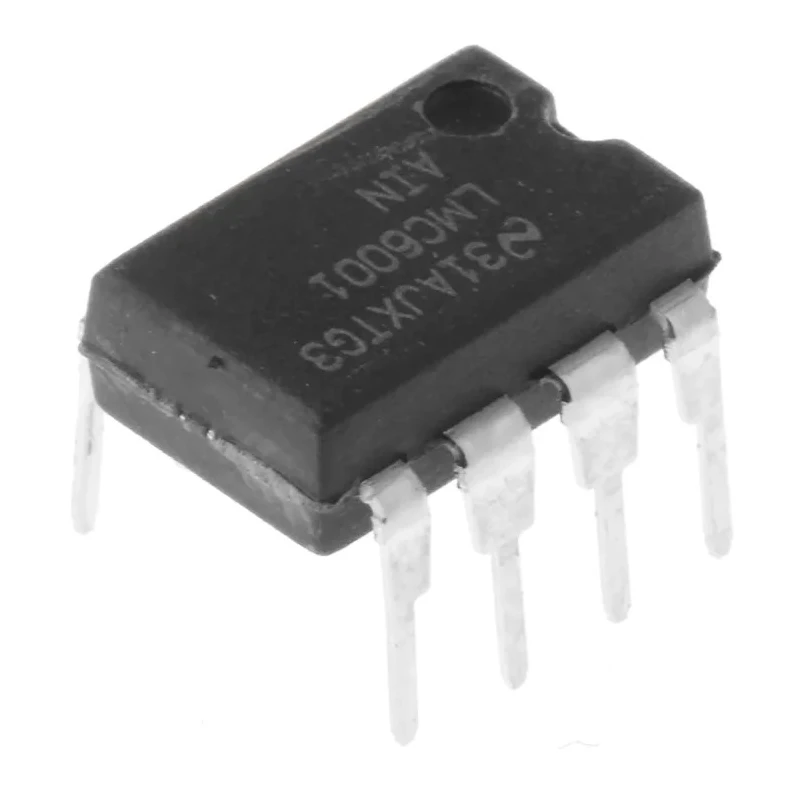

Texas Instruments Operational Amplifier 1.3 MHz 16V 8-Pin MDIP LMC6001AIN/NOPB

Texas Instruments LMC6001AIN/NOPB is a high-precision CMOS operational amplifier designed for applications requiring ultra-low input bias current and offset currents. It features a 1.3 MHz gain bandwidth product, facilitating fast and accurate amplification in electronic circuits. Packaged in an 8-pin MDIP through-hole format, it supports easy PCB mounting and integration.

The amplifier operates over a supply voltage range of 4.5 V up to 16 V, making it suitable for various power supply conditions. With an input bias current as low as 4000 fA and offset current of 2000 fA, this device is ideal for high impedance sensor interfaces, medical instrumentation, and precision signal processing applications. The device maintains excellent offset voltage stability at 10 mV and delivers an output current capacity of up to 10 mA.

Designed to operate reliably in harsh environments, the LMC6001AIN/NOPB supports an operating temperature range from -40°C to 85°C. Additionally, its slew rate of 1.5 V/μs allows for quick response to input changes, ensuring signal integrity in dynamic applications.

The compact size of the device with a length of 10.16 mm, width of 6.35 mm, and height of 5.08 mm allows for efficient space utilization in dense circuits. Furthermore, this product complies with RoHS standards, ensuring it meets environmental and health safety regulations.

Offers a 1.3 MHz gain bandwidth product enabling high-speed signal amplification. Operates within a supply voltage range from 4.5V to 16V. Features ultra-low input bias current of 4000 fA and input offset current of 2000 fA.

Designed for through-hole mounting in an 8-pin MDIP package. Operating temperature range from -40°C to 85°C suitable for diverse environments. Input offset voltage is low at 10 mV, ensuring precise performance. Slew rate of 1.5 V/μs supports rapid output voltage changes.

Output current capability of 10 mA. Compliant with RoHS standards ensuring environmental safety. Compact dimensions of approx. 10.16 mm length, 6.35 mm width, and 5.08 mm height.

This operational amplifier is widely used in industrial, laboratory instrumentation, medical devices, and precise measurement applications where low noise and high accuracy are essential. Its CMOS technology further aids in reducing power consumption, increasing reliability in battery-powered and portable instrumentation.
