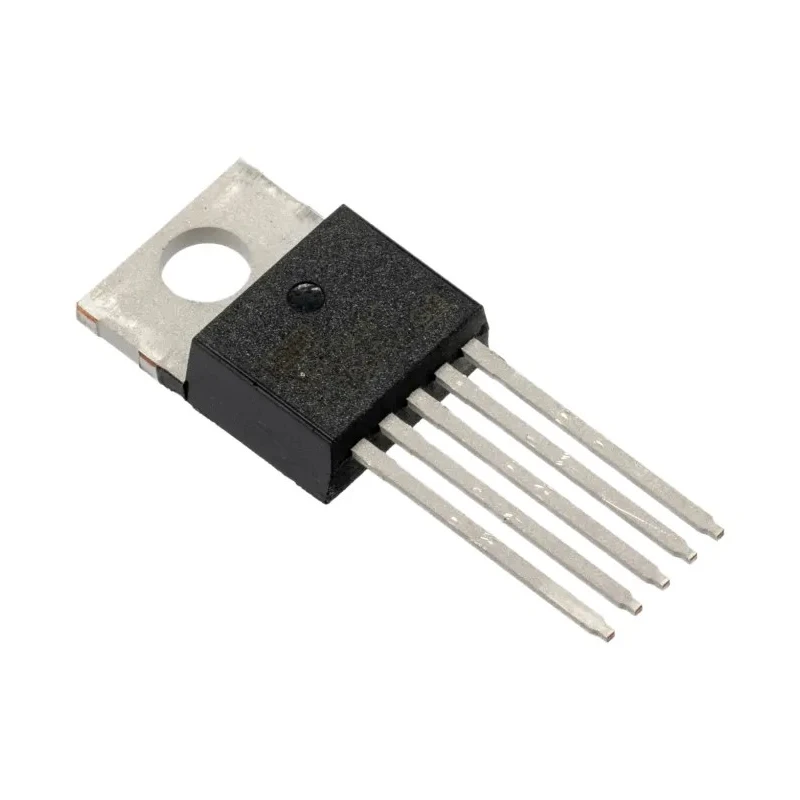

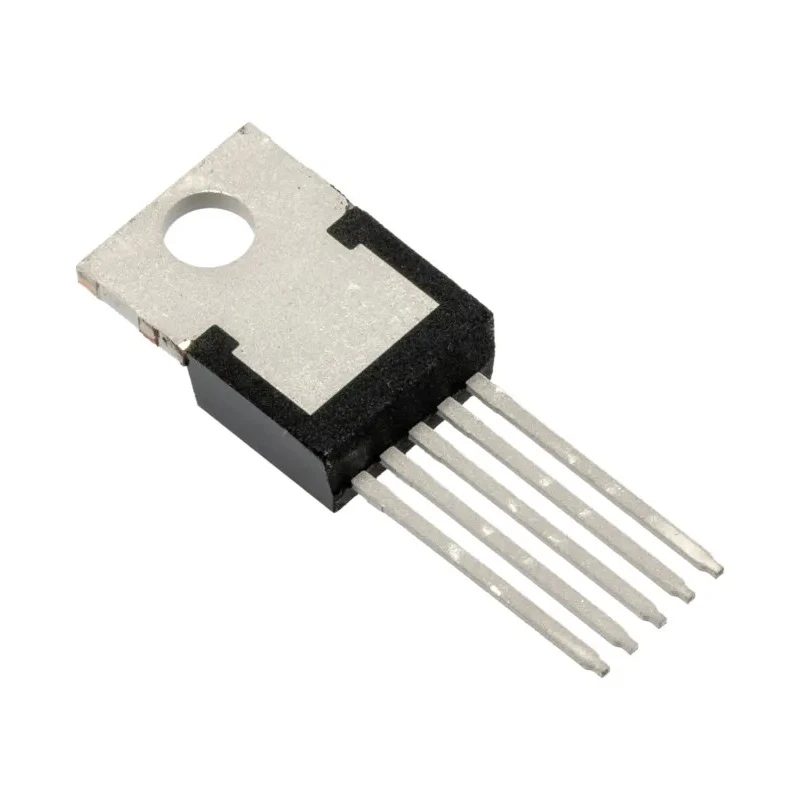

Texas Instruments Operational Amplifier 1.4 MHz 5-Pin TO-220 35V OPA544T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 8.51mm |
| Length | 10.16mm |
| Model | OPA544T |
| Width | 4.58mm |
| Mount Type | Through Hole |
| Series | OPA544 |
| Output Current | 2A |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 35V |
| Minimum Supply Voltage | 10V |
| GBP - Gain Bandwidth Product | 1.4MHz |
| Input Bias Current | ±100 pA |
| Vos - Input Offset Voltage | ±5 mV |
| Slew Rate | 8V/μs |
| OPA544T Texas Instruments, Op Amp, 1.4MHz, 5-Pin TO-220Brand | Texas Instruments |
Key Features
- This device offers a maximum supply voltage of 35V for robust operation.
- The operational amplifier features a slew rate of 8 V/μs optimizing dynamic performance.
- Low input bias and offset currents of ±100 pA and ±5 mV respectively enhance signal accuracy.
- Operates over a wide temperature range from -40°C to 85°C for industrial use.
- The output current capability of 2A makes it suitable for driving low impedance and difficult loads.
- Compact through-hole mount with dimensions of 10.16 mm length, 4.58 mm width, and 8.51 mm height.
- Designed without automotive standards, ideal for electronics, industrial, and laboratory applications.
- Package is RoHS compliant ensuring environmental safety.
Product Description
Texas Instruments OPA544T is a high-voltage, high-current operational amplifier optimized for driving challenging loads requiring up to 2A output current. This 5-pin TO-220 packaged device offers a gain bandwidth product of 1.4 MHz and a slew rate of 8 V/μs, delivering responsive and accurate signal amplification.
Designed for through-hole mounting, it measures 10.16mm in length, with a width of 4.58mm and height of 8.51mm, facilitating robust physical connections on various PCBs.
The amplifier supports a supply voltage range from 10V to 35V, operating reliably from -40°C to 85°C, making it suitable for industrial environments and laboratory instrumentation.
Low input offset voltage (±5mV) and bias currents (±100 pA) ensure minimal signal distortion, critical for precision applications such as motor speed controllers, servo amplifiers, bridge amplifiers, and power transistor drivers.
Maximum supply voltage of 35V supports high-power applications. Output current rating of 2A enables driving low impedance loads efficiently. RoHS compliant package guarantees environmental and regulatory compliance. High slew rate and gain bandwidth provide fast and stable response in dynamic circuits.
Robust through-hole mount for secure installation in industrial and manufacturing environments. This operational amplifier is widely used in electronics design, power management systems, and instrumentation requiring reliable high current amplification.
Explore EnvMart's extensive range of high-performance semiconductor amplifiers and Operational Amplifiers to find the perfect component for your engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this operational amplifier is 35V, allowing for robust operation in high-power applications.
This model has an output current capability of 2A, making it suitable for driving low impedance and difficult loads efficiently.
The gain bandwidth product (GBP) of this operational amplifier is 1.4 MHz, which supports responsive signal amplification.
It measures 10.16 mm in length, 4.58 mm in width, and 8.51 mm in height, designed for through-hole mounting.
The OPA544T operates reliably over a temperature range from -40°C to 85°C, suitable for industrial environments.
This operational amplifier features a slew rate of 8 V/μs, optimizing its dynamic performance.
The input bias current for the OPA544T is ±100 pA, which enhances signal accuracy and minimizes distortion.
The input offset voltage is ±5 mV, ensuring minimal signal distortion for precision applications.
This operational amplifier is designed for through-hole mounting, facilitating secure installation on PCBs.
Yes, the package is RoHS compliant, ensuring environmental safety and regulatory compliance.
It is widely used in electronics design, power management systems, and instrumentation requiring reliable high current amplification.
This operational amplifier has a single channel configuration, making it suitable for various amplification tasks.
