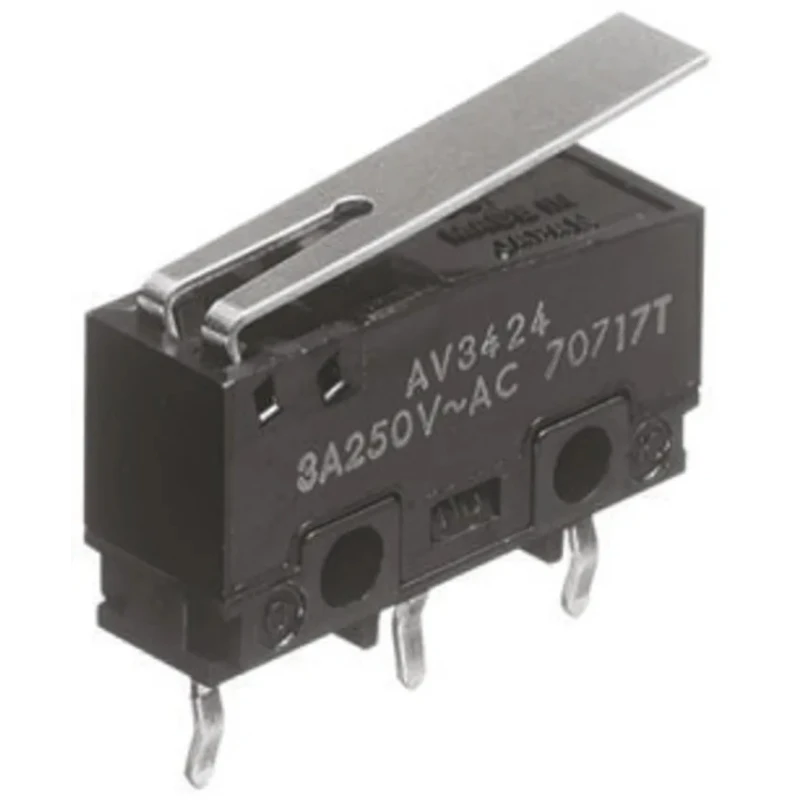

Panasonic Hinge Lever Micro Switch PCB Terminal 3A 250V AC SPCO AV34243-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Model | AV34243-A |
| Series | AV3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | CSA, RoHS, SEMKO, UL, VDE |
| Switch Contact Current | 3A |
| Operating Force | 0.34N |
| Mechanical Life | 500000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- This subminiature microswitch features a hinge lever actuator for precise operation.
- PCB terminal type ensures easy and secure printed circuit board mounting.
- 3A switch contact current supports moderate electrical loads.
- Contact configuration is SPCO (Single Pole Change Over) for versatile switching.
- Operating force of 0.34N offers a sensitive actuation response.
- Designed for a wide temperature range from -25°C to 85°C.
- Durable mechanical life rated at 500,000 operations for long-term reliability.
- Conforms to CSA, RoHS, SEMKO, UL, and VDE standards ensuring quality and compliance.
Product Description
Panasonic AV34243-A Hinge Lever Micro Switch PCB Terminal is a subminiature high precision switch designed for reliable electrical switching in a variety of industrial and commercial applications.
This microswitch offers a 3A switch contact current at 250V AC with a SPCO contact configuration, providing dependable performance for moderate electrical currents. The hinge lever actuator facilitates precise and responsive actuation with an operating force of 0.34N, making it suitable for sensitive trigger applications.
Equipped with PCB terminals, this switch is optimized for integration into printed circuit boards, ensuring secure electrical connections and straightforward mounting.
Engineered to operate within a temperature range of -25°C to 85°C, the switch is suitable for indoor environments with fluctuating ambient conditions. Mechanical life expectancy of 500,000 operations assures durability in continuous use scenarios.
Compliance with international standards including CSA, RoHS, SEMKO, UL, and VDE guarantees the switch meets rigorous safety and environmental regulations.
Typical use cases include communication devices, vending machinery, security systems, data handling equipment, and medical technology, reflecting its versatility across various industrial sectors.
This subminiature microswitch features a hinge lever actuator for precise operation. PCB terminal type ensures easy and secure printed circuit board mounting. 3A switch contact current supports moderate electrical loads.
Contact configuration is SPCO (Single Pole Change Over) for versatile switching. Operating force of 0.34N offers a sensitive actuation response. Designed for a wide temperature range from -25°C to 85°C. Durable mechanical life rated at 500,000 operations for long-term reliability.
Conforms to CSA, RoHS, SEMKO, UL, and VDE standards ensuring quality and compliance. Ideal for use in communication equipment, vending machines, security systems, data systems, and medical devices. Explore the extensive range of Micro Switches and electrical components on EnvMart for all your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this micro switch is 85°C.
The contact configuration of this model is SPCO (Single Pole Change Over).
This micro switch has a switch contact current rating of 3A.
It features a hinge lever actuator for precise operation.
The minimum operating temperature is -25°C, and the maximum is 85°C.
The mechanical life of this micro switch is rated for 500,000 operations.
This model uses PCB terminals for easy and secure mounting on printed circuit boards.
It conforms to CSA, RoHS, SEMKO, UL, and VDE standards.
The operating force required for actuation is 0.34N.
Typical applications include communication devices, vending machinery, security systems, data handling equipment, and medical technology.
The country of origin for this micro switch is India.
This model is classified as a subminiature micro switch.
