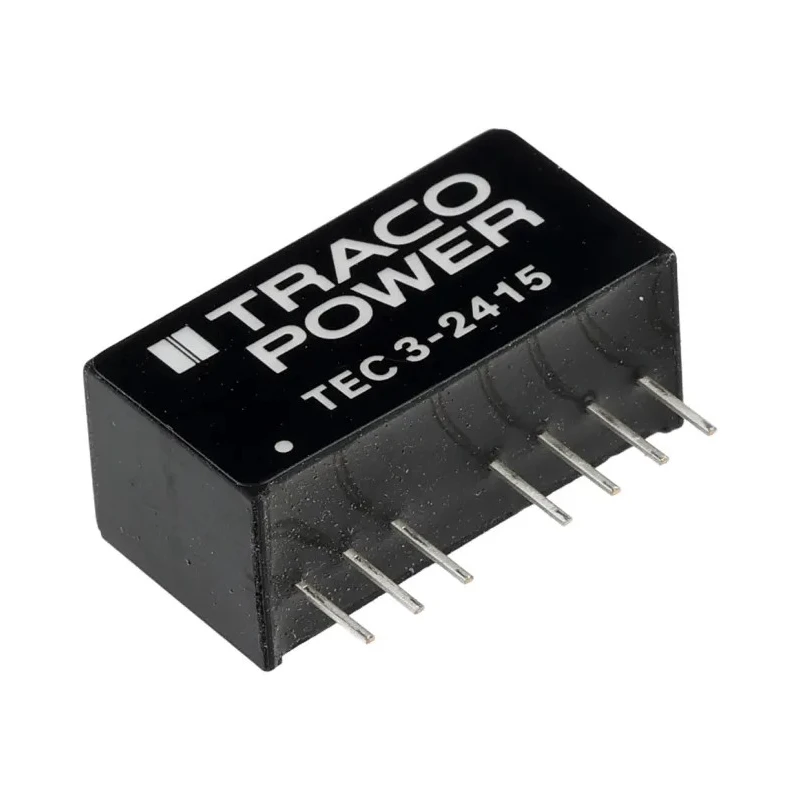

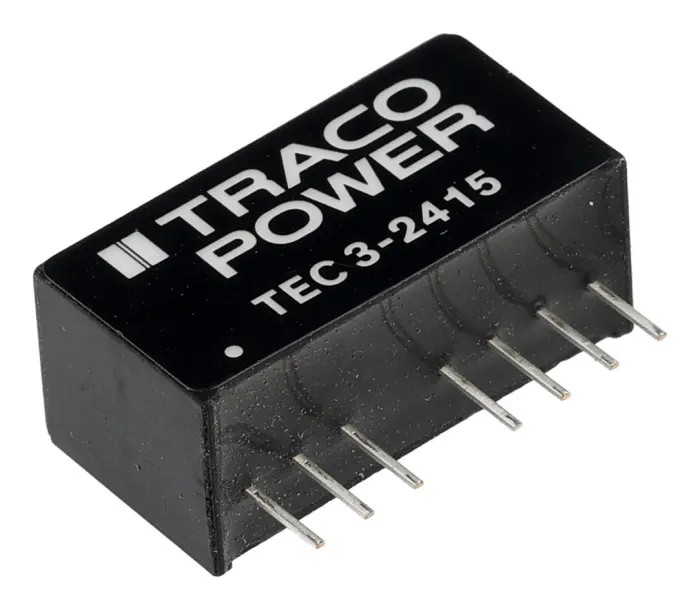

TRACOPOWER TEC 3 Series 3W SIP-8 DC/DC Converter 24V DC Output 125mA 18-36V DC Input TEC 3-2415
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEC 3 DC/DC Converter, 24V dc/ 125 mA |
| Brand | TRACOPOWER |
| Efficiency | 84% |
| Length | 21.8mm |
| Model | TEC 3-2415 |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | PCB |
| Series | TEC 3 |
| Maximum Operating Temperature | 90°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 6620000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 125mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Compact SIP-8 package allows easy PCB integration.
- Operates efficiently with 84% efficiency for minimal thermal loss.
- Input voltage range from 18V to 36V DC supports versatile applications.
- Operating temperature from -40°C to +90°C enables use in harsh environments.
- Continuous short circuit protection ensures reliable and safe operation.
- Input to output isolation voltage of 1.6kV DC for device safety.
- Mean Time Between Failures (MTBF) of 6,620,000 hours ensures long product life.
Product Description
TRACOPOWER TEC 3-2415 DC/DC Converter is a highly reliable isolated voltage converter designed for industrial and electronic applications requiring stable and efficient power conversion. This model provides a 24V DC output at a maximum current of 125mA with a power rating of 3W. It operates within an input voltage range of 18 to 36V DC and comes in a space-saving SIP-8 package suitable for compact PCB mounting.
The converter features an input-to-output isolation voltage of 1.6kV DC which ensures enhanced safety in sensitive electronic assemblies. With an impressive efficiency of 84%, it minimizes heat dissipation and power loss during operation. The device has a wide operating temperature range from -40°C to +90°C, ensuring functionality in demanding industrial, telecommunications, laboratory, medical, and automation environments.
Continuous short circuit protection safeguards the converter, automatically recovering from overload conditions and extending product longevity. The mean time between failure (MTBF) rating of over 6.6 million hours testifies to its high reliability and robustness.
This TRACOPOWER converter complies with RoHS standards, ensuring environmentally friendly manufacturing and usage. Its compact dimensions (21.8mm length × 9.1mm width × 11.2mm depth) make it ideal for dense electronic system integrations.
Applications include use in industrial control systems, telecommunications equipment power supplies, and medical device voltage regulation circuits. The stable and isolated output voltage ensures safe operation of sensitive load devices.
Compact SIP-8 layout enables space-saving installation. Operating temperature range from -40°C to +90°C supports diverse environments. Continuous short circuit protection enhances reliability during operation. High input/output isolation voltage of 1.6kV DC improves safety.
84% efficiency reduces thermal losses and supports stable output. Long MTBF of 6,620,000 hours enhances dependability. RoHS compliant for eco-friendly and safe use. Explore the wide range of power supply solutions and voltage converters available at EnvMart for industrial and electronic system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 36V DC.
This model provides a 24V DC output at a maximum current of 125mA.
It operates with an efficiency of 84%, minimizing thermal loss during operation.
The dimensions are 21.8mm in length, 9.1mm in width, and 11.2mm in depth.
The input-to-output isolation voltage is 1.6kV DC, ensuring enhanced safety.
It operates within a temperature range of -40°C to +90°C.
This model is designed for PCB mounting, allowing for easy integration into electronic systems.
It is suitable for use in industrial control systems, telecommunications equipment power supplies, and medical device voltage regulation circuits.
The MTBF is rated at over 6,620,000 hours, indicating high reliability.
Yes, the TEC 3-2415 complies with RoHS standards for environmentally friendly manufacturing.
It features continuous short circuit protection, which safeguards the converter and allows it to recover from overload conditions.
The maximum output power of this model is 3W.
