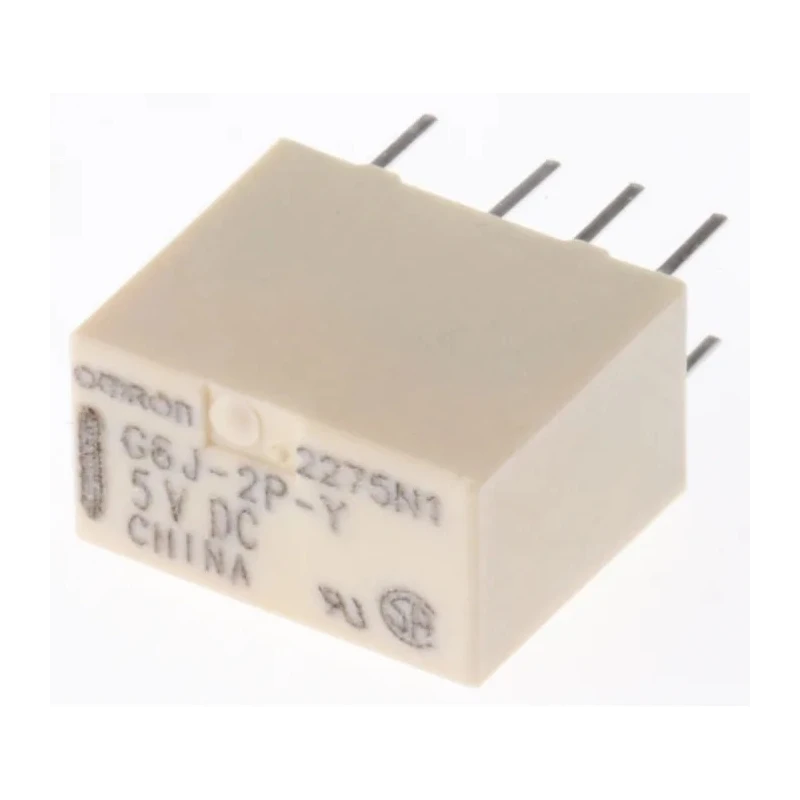

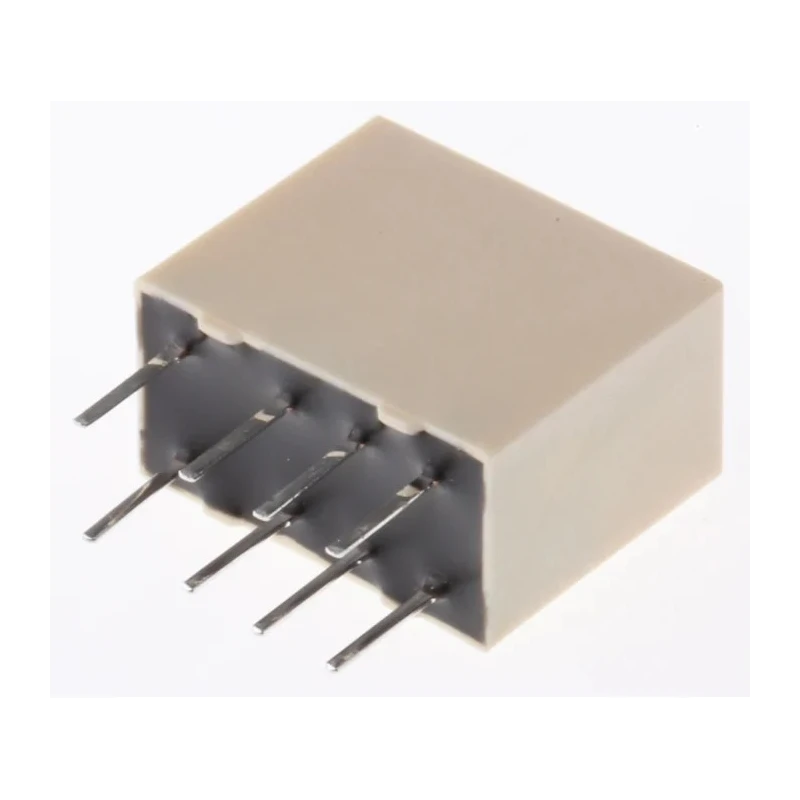

Omron Ultra Compact DPDT PCB Signal Relay 5V DC Coil 1A Switching Current G6J-2P-Y DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9mm |
| Length | 10.6mm |
| Model | G6J-2P-Y DC5 |
| Width | 5.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6J |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 173Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 140mW |
| Finder PCB Signal Relay, 5V dc Coil, 2A, DPDTBrand | Finder |
| DPDT ultra-miniature PCB relay, 1A 5VdcBrand | Omron |
Key Features
- Ultra compact and slim DPDT signal relay designed for PCB mounting.
- Features gold plated contacts for reliable conductivity and durability.
- Operating temperature range from -40°C to 85°C suitable for varied environments.
- Coil resistance of 173Ω with low coil power consumption of 140mW.
- Switching voltage up to 125V AC and 110V DC with a switching power of 37.5 VA.
- Fully sealed construction ensuring protection against dust and contaminants.
- Conforms to RoHS and meets North American Telcordia and FCC Part 68 standards.
- Ideal for use in industrial automation, signal conditioning, and electronic control systems.
Product Description
Omron G6J-2P-Y DC5 is an ultra compact DPDT PCB signal relay featuring a 5V DC coil voltage and 1A switching current, suitable for precise signal switching in electronic circuits. This relay is designed for PCB mount applications and includes gold plated contacts to ensure excellent conductivity and longevity.
It operates within a temperature range of -40°C to 85°C, making it versatile for industrial, laboratory, and automation environments. The coil resistance is 173Ω, resulting in a low coil power of 140mW, which optimizes energy efficiency in control circuitry.
Switching capabilities include up to 125V AC and 110V DC with a maximum switching power of 37.5 VA, supporting robust electrical performance for signal relay use cases. The relay is fully sealed to prevent ingress of dust and other contaminants, enhancing reliability and lifespan.
Ultra compact DPDT relay suitable for PCB installation. Gold plated contacts for superior electrical performance. Operating temperature range of -40°C to 85°C. Low coil power consumption of 140mW. Supports switching voltages up to 125V AC and 110V DC.
Conforms to RoHS and North American Telcordia, FCC Part 68 standards. Fully sealed construction for enhanced protection. Ideal for industrial automation and signal conditioning applications.
This Omron signal relay finds application in a variety of settings including industrial automation systems, laboratory equipment, HVAC controls, and manufacturing machinery. It offers reliable signal switching with compact size and energy efficiency.
Explore more Signal Relays and related electrical components on EnvMart for quality assurance and competitive pricing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 1A, making it suitable for various signal switching applications.
The relay operates with a coil voltage of 5V DC, which is ideal for low-power applications.

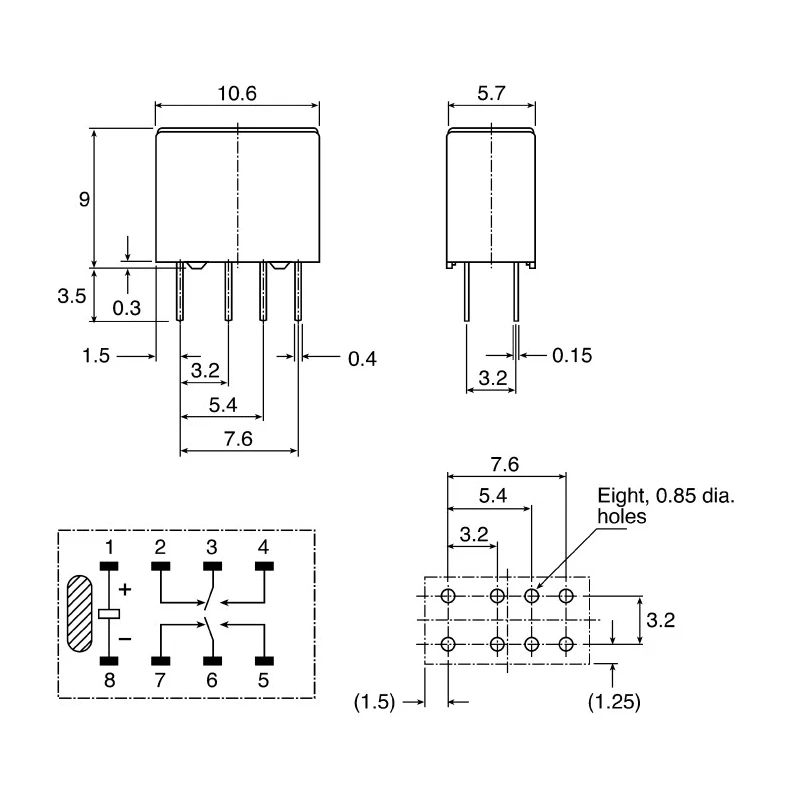

The dimensions of this unit are 10.6mm in length, 5.7mm in width, and 9mm in height, allowing for compact PCB mounting.
It operates within a temperature range of -40°C to 85°C, making it suitable for diverse environments.
The relay features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching options.
This model supports a maximum switching voltage of 125V AC and 110V DC, providing robust performance for signal applications.
The coil resistance is 173Ω, which contributes to its low power consumption.
The coil power consumption is 140mW, optimizing energy efficiency in control circuitry.
Yes, it features a fully sealed construction that protects against dust and other contaminants, enhancing its reliability.
The G6J-2P-Y DC5 conforms to RoHS and meets North American Telcordia and FCC Part 68 standards.
This relay is ideal for use in industrial automation, signal conditioning, and electronic control systems.
It uses PCB terminals for easy mounting on printed circuit boards, facilitating straightforward integration into electronic systems.
