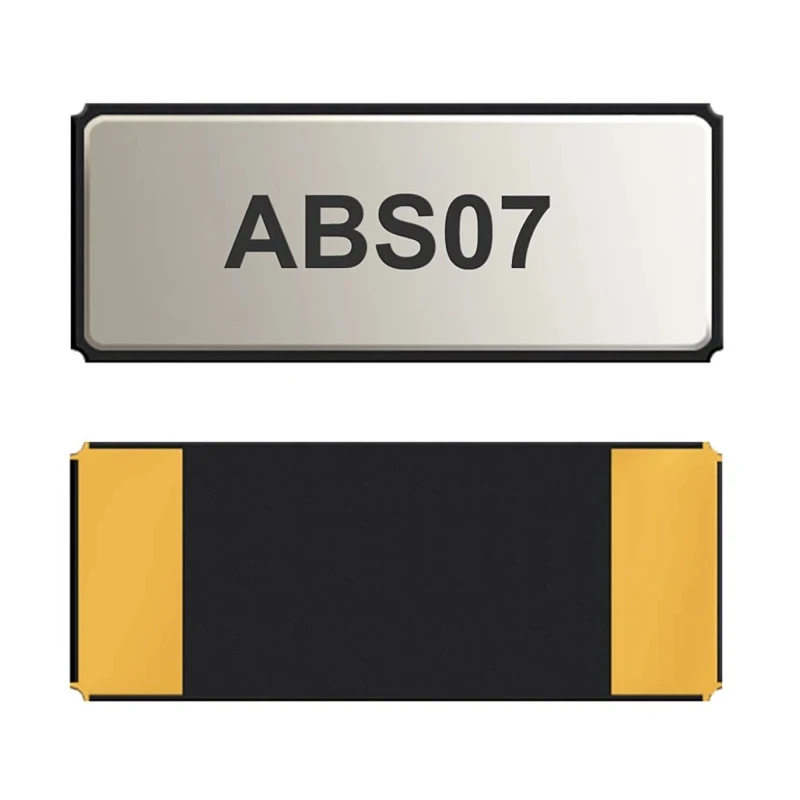

Abracon 32.768 kHz Crystal Unit ±20 ppm Surface Mount 2-Pin 0.9 mm x 3.2 mm x 1.5 mm ABS07-32.768KHZ-T
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | Abracon |
| Height | 0.9mm |
| Length | 3.2mm |
| Model | ABS07-32.768KHZ-T |
| Packaging | Tape & Reel |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | ABS07 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 2 |
| Standard Frequency | 32.768kHz |
| Load Capacitance | 12.5pF |
| Series Resistance | 70kΩ |
Key Features
- Features a standard frequency of 32.768 kHz suitable for timing applications.
- Surface mount package with tape and reel packaging for automated assembly.
- Load capacitance is 12.5 pF ensuring reliable oscillation stability.
- Temperature range from -40°C to 85°C supports industrial environments.
- Series resistance of 70 kΩ ensures precise signal filtering.
- Compact dimensions with 0.9 mm height, 3.2 mm length, and 1.5 mm width.
- Conforms to REACH and RoHS standards ensuring compliance to safety regulations.
Product Description
The Abracon ABS07-32.768KHZ-T Crystal Unit is a precision 32.768 kHz frequency oscillator designed for surface mount applications requiring high timing accuracy. It features a compact plastic package with an embedded heat-resistant crystal in a cylindrical form that supports industrial temperature ranges from -40°C up to 85°C, making it suitable for harsh environments.
This 2-pin crystal unit has a frequency tolerance of ±20 ppm and a load capacitance of 12.5 pF, which ensures stable and reliable oscillation for commercial and industrial timing circuits. The series resistance of 70 kΩ supports clean signal output critical in wireless communications, PDAs, and other timing-critical applications.
The unit's dimensions of 3.2 mm length, 1.5 mm width, and 0.9 mm height make it highly space-efficient for use in compact PCB designs, and the tape & reel packaging method enables efficient surface mount device (SMD) assembly processes.
It fully complies with RoHS and REACH standards, guaranteeing environmental safety and regulatory compliance. Manufactured in Singapore, this crystal unit is ideal for applications in electronics components, passive components, and oscillator circuits.
Standard frequency of 32.768 kHz suitable for real-time clocks. Surface mount package with tape & reel for automated PCB placement. Load capacitance of 12.5 pF for frequency stability. Wide operating temperature range from -40°C to 85°C.
Series resistance of 70 kΩ ensuring clean oscillations. Compact size ideal for space-restricted designs. Complies with REACH and RoHS environmental standards. Manufactured in Singapore for quality assurance.
This Crystal Unit is well-suited for use in commercial and industrial electronic equipment, including wireless communication devices and handheld PDAs. It supports demanding industrial temperature ranges and offers reliable performance in timing-critical applications.
Explore more electronic components and oscillator solutions in EnvMart's comprehensive product range for advanced electronics manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 32.768 kHz, which is suitable for timing applications.
This model has dimensions of 3.2 mm in length, 1.5 mm in width, and 0.9 mm in height.
The load capacitance of this crystal unit is 12.5 pF, ensuring reliable oscillation stability.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
The series resistance is 70 kΩ, which supports clean signal output.
It is packaged in tape and reel format, which facilitates automated assembly processes.
This model uses a surface mount type, suitable for compact PCB designs.
It complies with REACH and RoHS standards, ensuring environmental safety and regulatory compliance.
This crystal unit has 2 pins.
It is manufactured in Singapore.
It is suitable for commercial and industrial electronic equipment, including wireless communication devices and handheld PDAs.
This model belongs to the ABS07 series.
