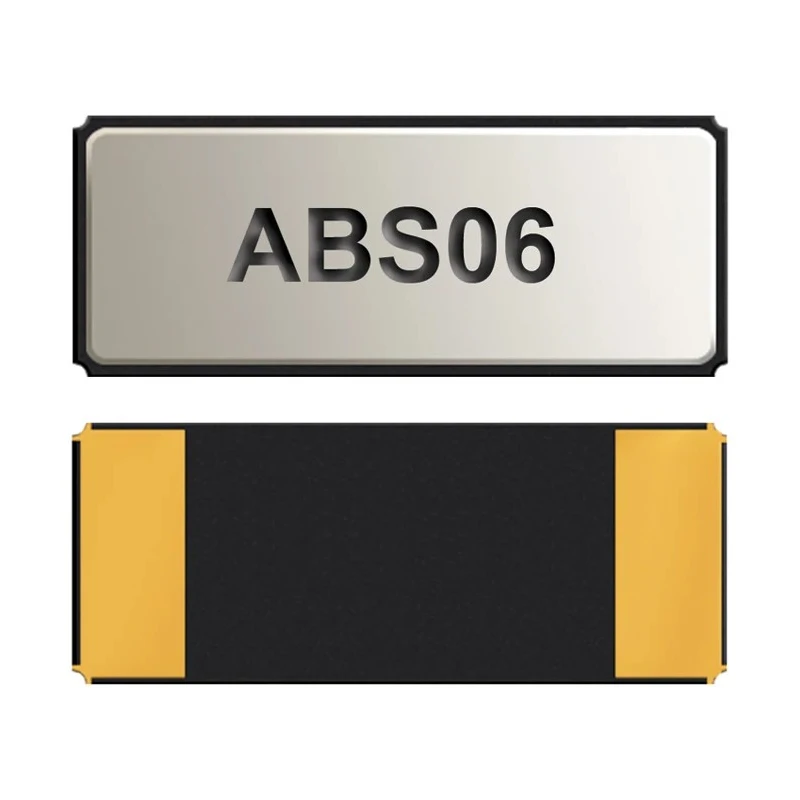

Abracon 32.768 kHz Crystal Unit ±20 ppm Surface Mount 2-Pin 0.6 mm Height 2 mm Length 1.2 mm Width ABS06-32.768KHZ-9-T

Abracon ABS06-32.768KHZ-9-T crystal unit is a precise surface mount frequency source operating at 32.768 kHz with ±20 ppm tolerance. It features a ceramic seam-sealed package measuring 2 mm in length, 1.2 mm in width, and 0.6 mm in height, designed for high density PCB applications.

The crystal unit guarantees an Equivalent Series Resistance (ESR) of 60 kΩ maximum, providing efficient performance in low power circuits. Its extended operating temperature range from -40°C to +85°C makes it suitable for industrial, commercial, and consumer electronics environments.

The device is RoHS and REACH compliant, ensuring environmentally responsible manufacturing and use. This crystal unit is particularly well-suited for power-sensitive designs such as ST-Micro MCU STM32L microcontroller solutions, offering reliable frequency source for communication and measurement equipment, wireless terminals, PDAs, and smartphones.

Key technical features include surface mount 2-pin packaging, load capacitance of 9 pF, with tape and reel packaging for automated PCB assembly processes. The product is manufactured in Singapore under the ABS06 series, which does not adhere to automotive standards but is ideal for a broad range of industrial applications.

High precision ±20 ppm frequency tolerance ensures accurate timing. Surface mount design with 2-pin ceramic package suitable for compact PCB layouts. Dimensions of 2 mm length, 1.2 mm width, and 0.6 mm height support high density circuit boards.

Operating temperature range from -40°C to 85°C for industrial and commercial applications. Guaranteed maximum Equivalent Series Resistance (ESR) of 60 kΩ for low power design efficiency. RoHS and REACH compliant ensuring environmental and safety standards.

Ideal for power sensitive designs including ST-Micro MCU STM32L based solutions. Applications include communication, measurement equipment, wireless devices, PDAs, and smartphones.

This crystal unit is a vital component for precision timing and oscillator circuits across various industrial, commercial, and consumer electronics sectors. Explore the Electronics Components category for additional precision Crystal Units and components at EnvMart.
