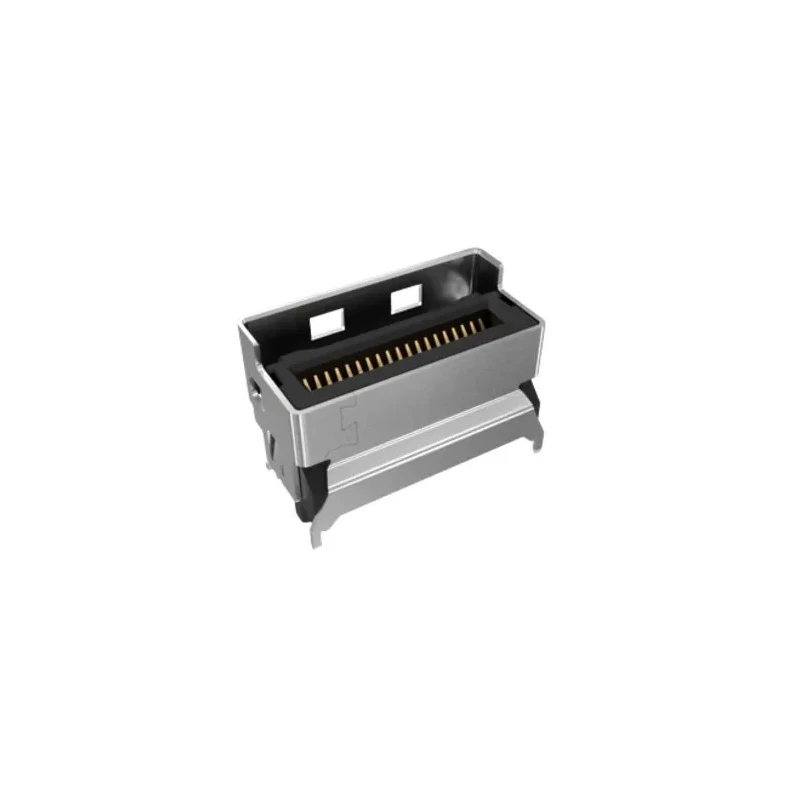

Amphenol Communications Solutions Mini Cool Edge IO Series Vertical Edge Connector Panel 74 Contacts 0.6 mm Pitch G97V24312HR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Model | G97V24312HR |
| Mount Type | Panel |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Mini Cool Edge IO |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.6mm |
| Standards/Approvals | UL, RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 74 |
| Card Type | PCIe |
Key Features
- Features a vertical orientation with a panel mount type for secure installation.
- Constructed with copper alloy contacts plated with gold over nickel for corrosion resistance.
- Supports operating temperatures ranging from -55°C to 85°C for robust performance.
- Designed for PCIe card type and capable of handling 300V voltage rating.
- Housing made of thermoplastic material ensuring electrical insulation and durability.
- Complies with UL and RoHS standards, ensuring safety and environmental compliance.
- Slim form factor suitable for compact and modular system designs.
- Supports signal integrity for high-speed applications including PCIe Gen 4 and Gen 5.
Product Description
Amphenol Communications Solutions G97V24312HR Mini Cool Edge IO Series vertical edge connector panel features a 0.6 mm pitch with 74 contacts, designed for high-performance electronic applications. The connector provides superior signal transmission suitable for modern PCIe standards, including Gen 4 and Gen 5, and supports data rates up to 56 Gb/s PAM4 over transmission distances exceeding 1 meter.
This vertical edge connector is engineered with copper alloy contacts plated with gold over nickel, ensuring reliable conductivity and resistance to corrosion in demanding industrial and communications environments. The thermoplastic housing enhances mechanical strength and electrical insulation, optimized for panel mounting and compact integration.
Operating reliably at temperatures from -55°C to 85°C and rated for 300V, this connector complies with UL and RoHS standards, making it compliant for use in safety-sensitive and eco-conscious installations. Its slim form factor makes it ideal for space-constrained data center and industrial system designs that require scalable and modular connectivity solutions.
The product supports both cable and card edge connections, offering flexibility in system architecture and repairability in industrial, communications, and computing sectors. This Edge Connector is perfect for electronic components, power connectors, and advanced computing equipment requiring robust and reliable PCIe connectivity.
Features a vertical orientation with a panel mount type for secure installation. Constructed with copper alloy contacts plated with gold over nickel for corrosion resistance. Supports operating temperatures ranging from -55°C to 85°C for robust performance.
Designed for PCIe card type and capable of handling 300V voltage rating. Housing made of thermoplastic material ensuring electrical insulation and durability. Complies with UL and RoHS standards, ensuring safety and environmental compliance.
Slim form factor suitable for compact and modular system designs. Supports signal integrity for high-speed applications including PCIe Gen 4 and Gen 5. Explore the full range of Amphenol Communications Solutions connectors at EnvMart for trusted quality and industrial performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a voltage rating of 300V, making it suitable for various high-performance applications.
It features a contact pitch of 0.6 mm, which is designed for compact connections in electronic systems.
This model operates reliably within a temperature range of -55°C to 85°C, suitable for demanding environments.
The connector is equipped with 74 contacts, allowing for multiple connections in a compact form factor.
It is constructed with copper alloy contacts plated with gold over nickel, and the housing is made of thermoplastic material for electrical insulation.
Yes, it complies with UL and RoHS standards, ensuring it meets safety and environmental requirements.
This model is specifically designed for PCIe card types, making it suitable for high-speed data applications.
The connector features a vertical orientation, which is ideal for panel mount installations.
It supports high-speed applications including PCIe Gen 4 and Gen 5, making it suitable for advanced computing and industrial systems.
The gold over nickel plating on the contacts ensures reliable conductivity and corrosion resistance, enhancing performance in various environments.
The housing is made of thermoplastic material, which provides mechanical strength and electrical insulation.
The connector is designed to support signal integrity for high-speed applications, crucial for modern data transmission standards.
