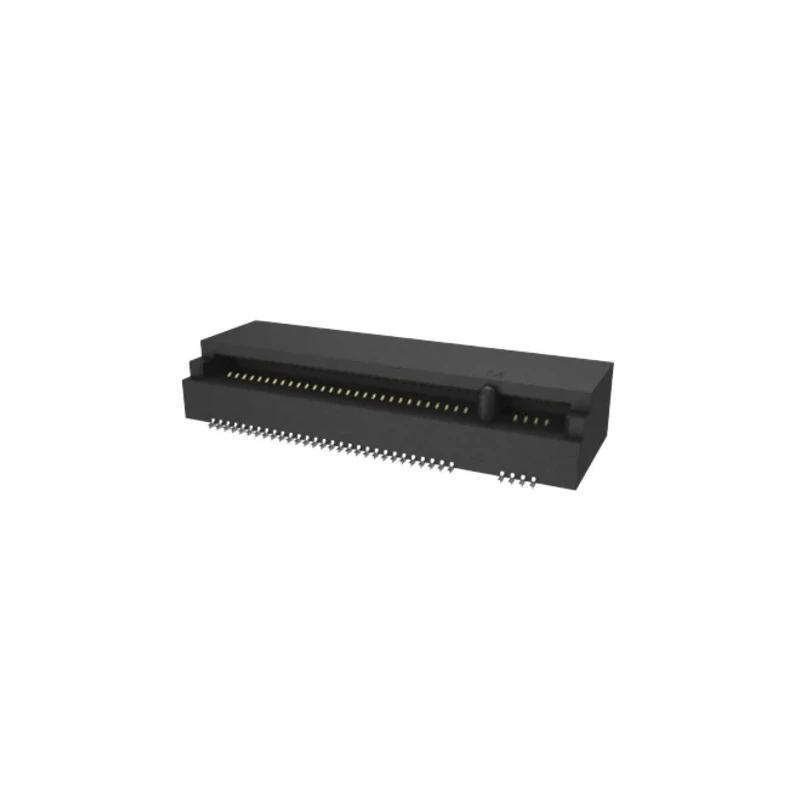

Amphenol Communications Solutions M.2 Gen 5 Series Right Angle Edge Connector Female, Board Mount, 67 Contacts MDT850M01501
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 750mA |
| Model | MDT850M01501 |
| Mount Type | Board |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | M.2 Gen 5 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 0.5mm |
| Standards/Approvals | UL, RoHS |
| Contact Plating | Gold |
| Number of Contacts | 67 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCIe |
Key Features
- Right angle orientation for efficient board layout and connectivity.
- 67 gold-plated copper alloy contacts ensure reliable electrical performance.
- Operates within a temperature range of -40°C to 80°C.
- Supports a maximum current of 750mA and voltage up to 500V.
- Thermoplastic housing provides durability and electrical insulation.
- Compliant with PCI-SIG PCIe M.2 specification for high-speed data transfer.
- Offers multiple connector height options to suit design flexibility.
- Includes keying way for secure mating and compatibility.
Product Description
Amphenol Communications Solutions MDT850M01501 is a high-performance M.2 Gen 5 series right angle edge connector designed for PCIe applications. This female board-mounted connector features 67 contacts spaced at a 0.5 mm pitch, enabling high-density, reliable connections with reduced board footprint.
The connector operates efficiently within a temperature range of -40°C to 80°C and supports a voltage rating up to 500V and a current rating of 750mA per contact. Manufactured with gold-plated copper alloy contacts, it ensures excellent electrical conductivity and corrosion resistance. The thermoplastic housing adds mechanical strength and insulation.
Compliant with PCI-SIG M.2 Gen 5 specifications, this edge connector supports high-speed data rates ideal for advanced computing applications. The right angle orientation and multiple height options provide designers flexibility to optimize board space and connector placement. Keying features enable secure mating and prevent incorrect insertion.
Designed for both single and double-sided PCIe modules, this connector is suitable for a wide range of electronics and computing applications requiring reliable edge connections. Its UL and RoHS certifications confirm adherence to industry standards and environmental compliance.
Common use industries include industrial electronics, computing hardware, telecommunications equipment, and advanced embedded systems where space and performance are critical. Right angle orientation for efficient board layout and connectivity.
67 gold-plated contacts at 0.5 mm pitch for high-density connections. Thermoplastic housing ensuring durability and safety. Supports operating temperatures from -40°C to 80°C. Rated for 750mA current and 500V voltage per contact.
Meets PCI-SIG PCIe M.2 Gen 5 specifications. Design flexibility with multiple connector heights and keying options. Explore more advanced Edge Connector solutions from Amphenol Communications Solutions and browse the latest electronics components at EnvMart.
