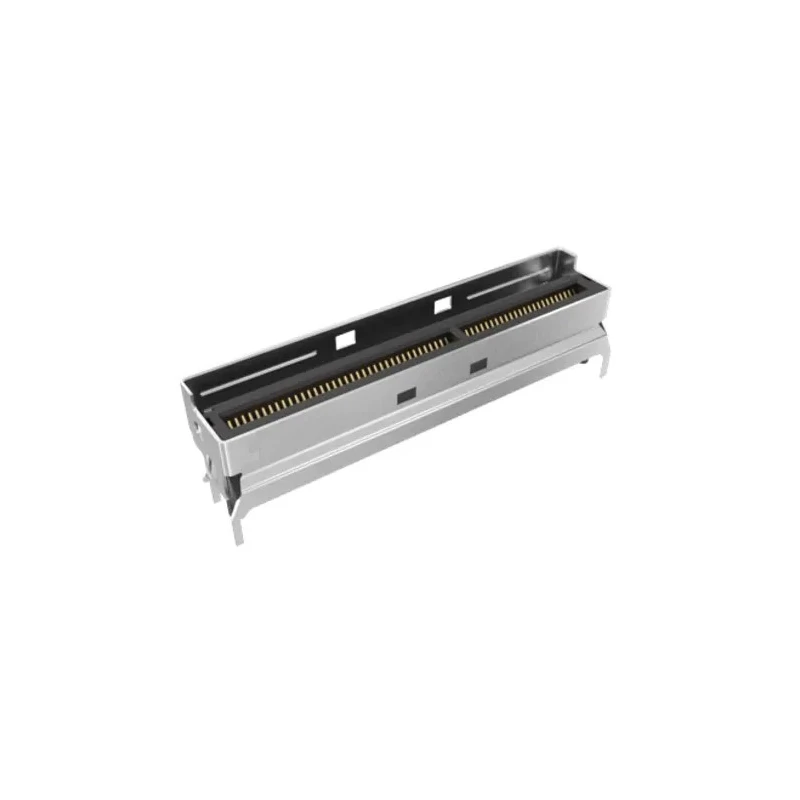

Amphenol Communications Solutions Mini Cool Edge IO Series Vertical Edge Connector, Panel Mount, 74 Contacts G97V24332HR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Model | G97V24332HR |
| Mount Type | Panel |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Mini Cool Edge IO |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.6mm |
| Standards/Approvals | RoHS, UL |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 74 |
| Card Type | PCIe |
Key Features
- The connector supports vertical orientation with a compact, slim form factor.
- It operates within a temperature range of -55°C to 85°C ensuring reliability in harsh environments.
- Features copper alloy contacts with gold over nickel plating for enhanced conductivity and corrosion resistance.
- Supports up to 300V operation suitable for advanced data center and industrial applications.
- Complies with RoHS and UL standards for safety and environmental compliance.
- Designed for PCIe card type systems providing high signal integrity for data transmission.
- The housing is made of durable thermoplastic material ensuring mechanical stability.
- Its modular and scalable design facilitates flexible system integration and easy repairability.
Product Description
Amphenol Communications Solutions G97V24332HR Mini Cool Edge IO Series Vertical Edge Connector is engineered for superior signal integrity and performance in high-speed data transmission applications. This connector features a 0.6 mm pitch and 74 contacts, mounted on a panel in a vertical orientation, which makes it ideal for compact and efficient design in modern electronics systems.
Constructed with copper alloy contacts and gold over nickel plating, it ensures excellent electrical conductivity and durability. The thermoplastic housing provides robust protection and mechanical strength suitable for various industrial environments.
The connector is designed to support PCIe card type installations, delivering up to 56 Gb/s PAM4 data rates, compatible with PCIe Gen 4 and Gen 5, across transmission distances exceeding 1 meter. Its slim form factor supports efficient space utilization in data centers and other electronic systems.
This Mini Cool Edge IO connector supports both cable and card edge applications, enhancing flexibility in system design. It meets RoHS and UL standards, assuring regulatory compliance and safety.
Its modular and scalable architecture enables cost-effective and easy-to-maintain system design, making it suitable for industrial, telecommunications, computing, and data center applications where high-performance connectivity is paramount.
The connector supports vertical mounting and panel installation. It has 74 contacts with a 0.6 mm pitch for high-density connection. Contacts are gold plated over nickel on copper alloy base material for reliable performance.
Operating temperature ranges from -55°C to 85°C, ensuring operation in extreme conditions. Voltage rating is 300V suitable for various electronic applications. Housing material is durable thermoplastic providing robust mechanical support.
Supports PCIe card type configurations with high-speed data transmission. Complies with RoHS and UL standards for quality and safety assurance. Discover more products in the Edge Connector category on EnvMart to find complementary components for your high-performance electronic systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a voltage rating of 300V, making it suitable for various electronic applications.
It operates within a temperature range of -55°C to 85°C, ensuring reliability in extreme conditions.
This edge connector features 74 contacts, designed for high-density connections.
The contacts are made of copper alloy and are plated with gold over nickel for enhanced conductivity and corrosion resistance.
It supports panel mounting in a vertical orientation, facilitating efficient space utilization in electronic systems.
The connector complies with RoHS and UL standards, ensuring safety and environmental compliance.
The pitch size of the contacts is 0.6 mm, allowing for compact connections in high-speed applications.
It is designed for PCIe card type systems, providing high signal integrity for data transmission.
The housing is made of durable thermoplastic material, providing mechanical stability and protection.
It supports data rates of up to 56 Gb/s PAM4, compatible with PCIe Gen 4 and Gen 5.
Yes, it is suitable for industrial, telecommunications, computing, and data center applications requiring high-performance connectivity.
The modular and scalable design facilitates flexible system integration and easy repairability, enhancing overall system efficiency.
