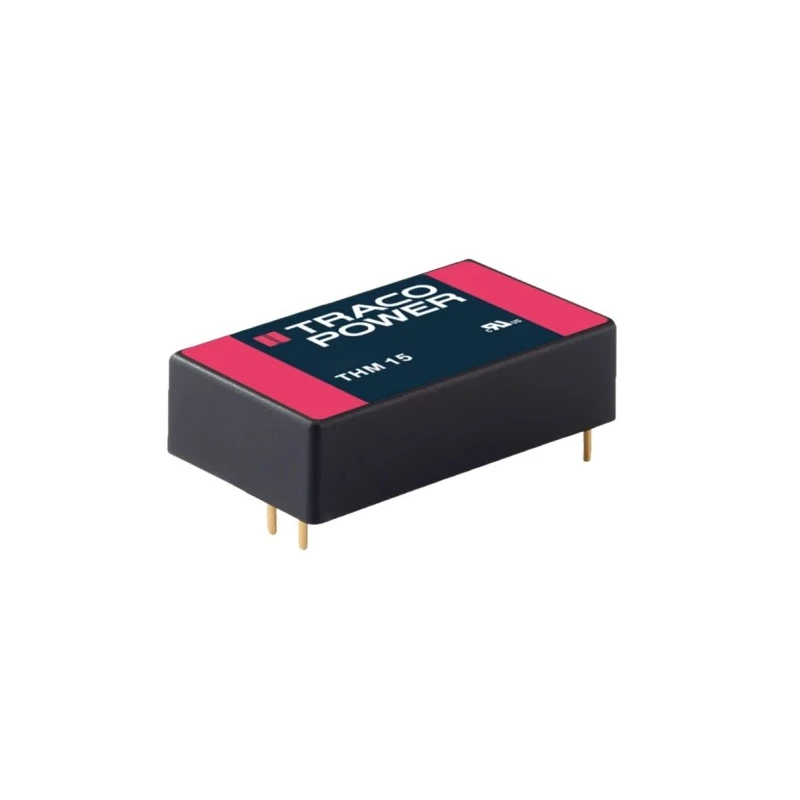

TRACOPOWER 15W 12V DC 1.25A 18V DC Input Through Hole Plastic Case DC/DC Converter THM 15-1212
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 15 DC/DC Converter, 12V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 88.5% |
| Length | 40.6mm |
| Model | THM 15-1212 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | THM 15 |
| Maximum Operating Temperature | 85°C |
| Package Type | Plastic Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 2080000h |
| Number of outputs | 1 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1.25A |
| Isolation Voltage | 5kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage 15 W DC/DC converter in a 1.6 x 1 plastic case |
Key Features
- Compact plastic case measuring 40.6mm length, 25.4mm width, and 10.2mm depth.
- Reinforced 5000 VACrms isolation ensures safe operation in demanding environments.
- High efficiency up to 88.5% minimizes energy loss and heat generation.
- Wide operating temperature range from -40°C up to +85°C supports various industrial applications.
- Low leakage current of less than 2.5 µA enhances safety and reliability.
- Single output with ±10% voltage adjustment for precise voltage regulation.
- Designed for use in transportation, measurement, control systems, and IGBT driver circuits.
- Compliance with medical and industrial standards for dependable performance.
Product Description
TRACOPOWER THM 15-1212 DC/DC Converter delivers a reliable 15W power output with 12V at 1.25A current from a wide input DC voltage range of 9V to 18V. Its through-hole mounting and compact plastic case measuring 40.6mm in length, 25.4mm in width, and 10.2mm in depth make it suitable for space-constrained electronic designs.
This converter features reinforced electrical isolation rated at 5000 VACrms to provide safe separation between input and output, essential for medical and industrial safety standards. The low leakage current of less than 2.5 µA further enhances its suitability for sensitive applications.
The high efficiency of 88.5% ensures minimized power loss and reduced heat dissipation, contributing to improved overall system efficiency and reliability. It operates reliably over a wide ambient temperature range from -40°C to +85°C and altitudes up to 5000 meters, enabling deployment in harsh environmental conditions.
With a single output channel and ±10% output voltage adjustment, it allows precise voltage control for various uses. The robust design targets applications including transportation systems, control and measurement instrumentation, and IGBT driver circuits where reliable DC power conversion is critical.
The unit boasts an impressive MTBF of 2,080,000 hours, underscoring its long-term durability. Made in Taiwan, this product combines quality materials and engineering excellence to meet demanding industrial requirements.
Compact 1.6 x 1.0 inch plastic case with through-hole mount. Wide 2:1 input voltage range (9V to 18V DC). Reinforced isolation for 5000 VACrms and less than 2.5 µA leakage current. Efficiency rated at 88.5% supports energy-efficient designs.
Operating temperature from -40°C to +85°C suitable for industrial environments. Single output with ±10% voltage adjustment range. Over 2 million hours MTBF for superior reliability. Ideal for medical, transportation, control, and measurement applications.
Explore more advanced and reliable DC/DC Converters and power supply solutions with EnvMart to meet your electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a reliable power output of 15W at 12V with a maximum current of 1.25A.
It operates within a wide input voltage range of 9V to 18V DC.
The compact plastic case measures 40.6mm in length, 25.4mm in width, and 10.2mm in depth.
It has an efficiency rating of 88.5%, which helps minimize energy loss and heat generation.
This unit features reinforced electrical isolation rated at 5000 VACrms, ensuring safe operation in demanding environments.
It operates reliably over a wide temperature range from -40°C to +85°C, suitable for various industrial applications.
This converter has a single output channel with a ±10% voltage adjustment for precise voltage regulation.
It is designed for through-hole mounting, making it suitable for space-constrained electronic designs.
The maximum operating temperature for the THM 15-1212 is 85°C.
The MTBF for this converter is rated at 2,080,000 hours, indicating its reliability over time.
It is designed for use in transportation systems, measurement, control systems, and IGBT driver circuits.
The leakage current is rated at less than 2.5 µA, enhancing safety and reliability in sensitive applications.
