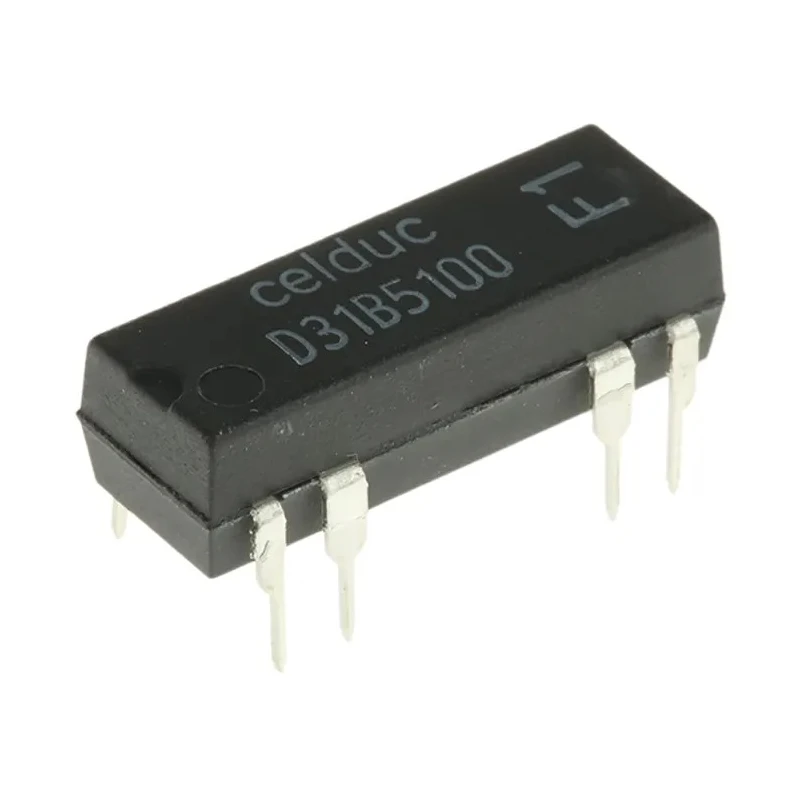

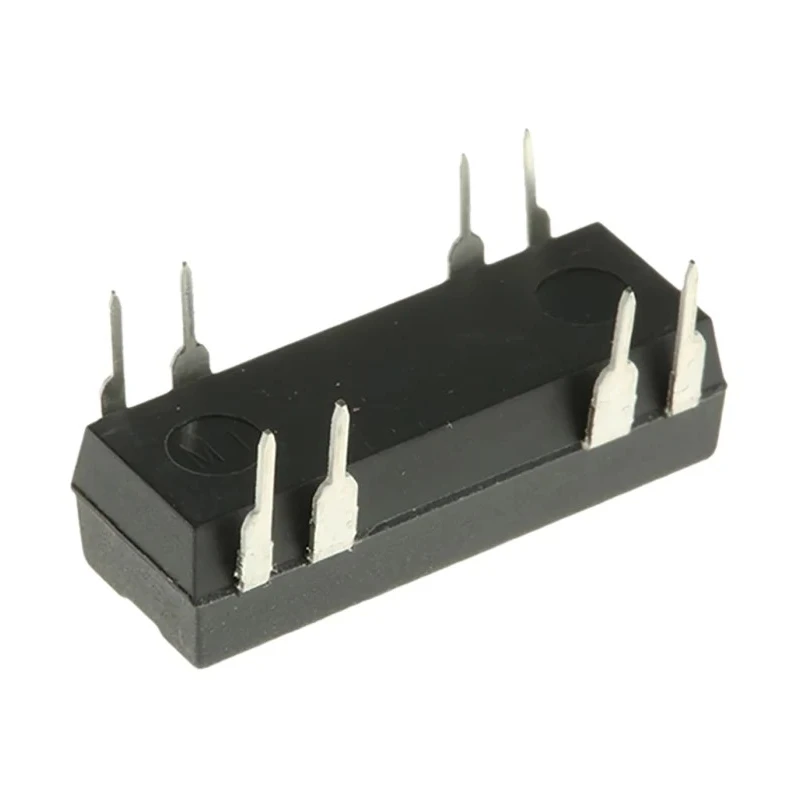

Celduc PCB Reed Relay 12V dc Coil SPNC Contact Configuration 100V dc Max 0.5A Max D31B5100

Celduc D31B5100 PCB Reed Relay features a 12V DC coil with a Single Pole Normally Closed (SPNC) contact configuration. It supports a maximum switching voltage of 100V DC and a maximum current of 0.5A, making it suitable for low power signal switching applications. This reed relay is ideal for printed circuit board mounting, offering a compact and efficient solution in electronic and electrical automation systems.

The relay coil power rating is 10W, with coil resistance measured at 1000 ohms, ensuring stable coil activation. It has an isolation voltage of 750V AC between the coil and contacts to enhance operational safety and minimize interference. Contact resistance is low at just 150 milliohms, reducing power loss during switching.

Operating parameters allow for environmental resilience, functioning reliably within temperatures ranging from -40°C to +70°C. The relay boasts a swift operating time of 1ms, essential for precise control in industrial automation, instrumentation, telecommunications, and control circuit applications.

Celduc’s relay comes with a DIP package design and solder terminal type for firm PCB integration. This non-latching relay does not retain contact state after coil power removal, supporting applications requiring momentary switch action. Manufactured in France, the model adheres to strict quality controls ensuring durability and performance consistency.

This relay has a coil power rating of 10W providing reliable operation. Coil resistance is precisely 1000 ohms ensuring efficient coil performance. Contact resistance is kept low at 150 milliohms assuring minimal voltage drop.

Isolation voltage between coil and contact is 750V AC for safety and surge protection. Operating temperature ranges from -40°C to +70°C, suitable for various industrial environments. The relay has a fast operating time of 1 millisecond ensuring quick response.

Compact dimensions of 19.1mm length and 6.4mm height enable easy integration onto printed circuit boards. Designed and manufactured in France maintaining high quality standards. Non-latching type relay with solder terminal connections ensures stable contact operation.

This Celduc PCB Reed Relay is extensively used in industrial automation, electrical signal conditioning, and manufacturing equipment requiring precise and rapid switching. Its compact size and reliable isolation make it suitable for laboratory instruments, control panels, and telecommunications hardware.
