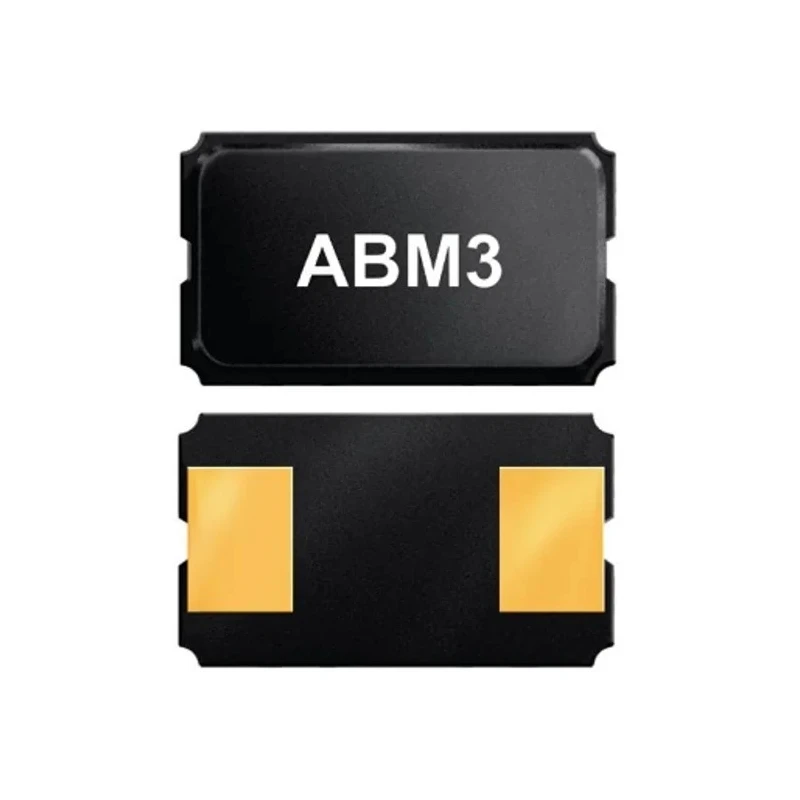

Abracon 20 MHz Crystal Unit ±50 ppm Surface Mount 2-Pin 1.3 mm Height 5 mm Length 3.2 mm Width ABM3-20.000MHZ-B2-T

Abracon ABM3-20.000MHZ-B2-T 20 MHz Crystal Unit Surface Mount is a high-precision electronic component designed for use in communication and test equipment, cellular telephones, pagers, PCMCIA, and wireless applications. It features a hermetically sealed ceramic surface mount package ensuring high reliability and moisture resistance.

The unit operates at a stable frequency of 20 MHz with a tolerance and stability of ±50 ppm, ensuring accurate timing in various electronic circuits. It is mounted with 2 pins, supporting a load capacitance of 18 pF and an equivalent series resistance of 30 Ω for optimal signal performance in RF environments.

This crystal unit measures 5 mm in length, 3.2 mm in width, and 1.3 mm in height, making it compact and suitable for modern miniaturized devices. The component functions reliably within an operating temperature range of -10°C to 60°C, suitable for standard industrial and commercial environments.

The packaging is tape and reel, allowing efficient handling in automated PCB assembly lines. Compliance with RoHS ensures the part is environmentally safe and meets industry regulations.

This crystal unit operates at 20 MHz frequency with ±50 ppm stability. It features a surface mount package type with 2 pins for easy PCB integration. Dimensions include length 5 mm, width 3.2 mm, and height 1.3 mm. It supports operating temperatures ranging from -10°C to 60°C.

The load capacitance is rated at 18 pF for precise frequency control. It comes in tape & reel packaging suitable for automated assembly processes. The ESR (Equivalent Series Resistance) is 30 Ω to maintain signal integrity.

This model belongs to the ABM3 series and complies with RoHS standards.

This crystal unit is ideal for industrial, telecommunications, laboratory, and commercial electronics applications requiring stable frequency sources. Its surface mount form factor supports compact circuit designs.
