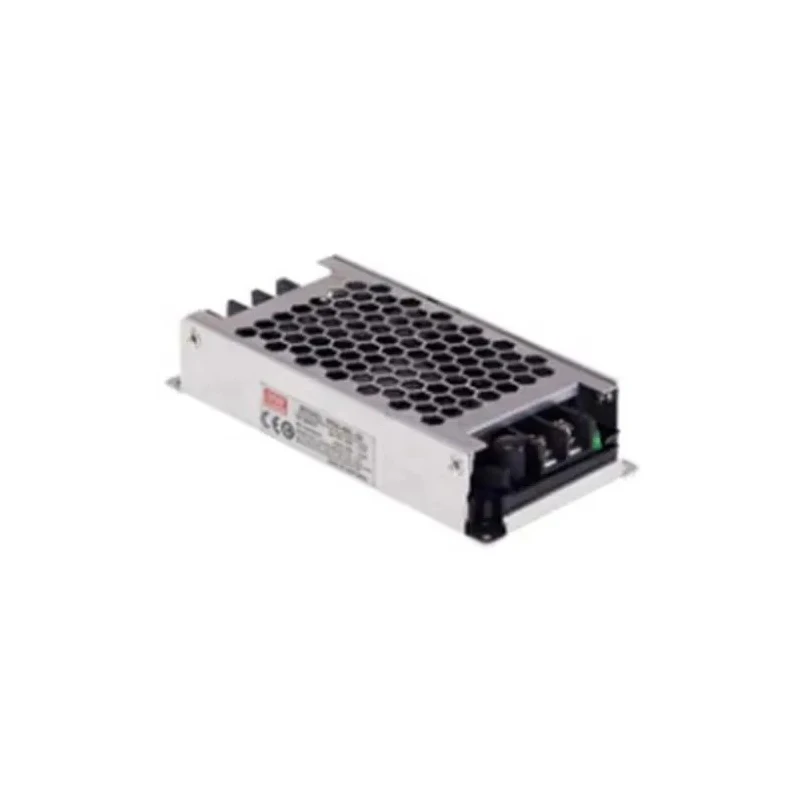

MEAN WELL RSD-60G-24 DC/DC Converter 24V DC Output, 36V DC Max Input, 60W Power, Chassis Mount RSD-60G-24
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL RSD-60 DC/DC Converter, 24V dc/, 36V dc |
| Brand | MEAN WELL |
| Efficiency | 90% |
| Length | 128mm |
| Model | RSD-60G-24 |
| Depth | 25mm |
| Gross Weight | 290g |
| Width | 60mm |
| Mount Type | Chassis Mount |
| Series | RSD-60 |
| Minimum Operating Temperature | 70°C |
| MTBF | 593800h |
| Number of outputs | 1 |
| Ripple and Noise | 60mV Pk-Pk |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | CE |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 2.5A |
| Isolation Voltage | 4kV dc |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
Key Features
- Compact 1U low profile chassis mount design with 25mm depth.
- Wide input voltage range from 9V to 36V DC for flexible usage.
- High efficiency up to 90% ensures energy saving during operation.
- Built-in constant current limiting circuit enhances protection and reliability.
- 4000VDC isolation voltage for safe operation in industrial environments.
- Operating temperature range from -40°C to +70°C suitable for harsh conditions.
- Output current capability of 2.5 A supports medium power applications.
- Low ripple and noise at 60mV peak-to-peak maintains signal integrity.
Product Description
MEAN WELL RSD-60G-24 DC/DC Converter is a high performance power supply module designed to provide a stable 24V DC output from a wide input range of 9V to 36V DC. Its compact chassis mount form factor with a shallow 25mm depth makes it suitable for space-constrained applications.
This converter offers an output power of 60W and output current of 2.5 amps supported by a highly efficient design with up to 90% efficiency, reducing energy loss and heat generation. It features 4000VDC isolation voltage to ensure safety and noise immunity in demanding industrial, laboratory, and automation applications.
The device operates reliably over a wide temperature range from -40°C up to +70°C, with built-in current limiting and LED power indication for operational security and convenience. It is fully compliant with CE standards, making it suitable for use in commercial and industrial voltage conversion tasks.
With a mean time between failure (MTBF) of approximately 593,800 hours, the RSD-60G-24 ensures long-term dependable operation. It is widely used in fields such as automation control systems, communication equipment, and power management solutions.
Key features include its ultra-compact 1U low-profile casing, wide input voltage range, high efficiency, and safety isolation designed to fit in modern electrical assemblies. The converter is engineered for ease of use and installation in a chassis mount configuration.
Compact chassis mount design with 25mm depth. Wide 9V to 36V input voltage range. 60W output power with 2.5A output current. High efficiency of 90% reduces energy waste. 4000VDC isolation voltage for safety. Operating temperature range from -40°C to +70°C.
Built-in constant current limiting circuit. LED indicator for power on status. Compliant with CE standards. MTBF of 593,800 hours guarantees reliability.
This DC/DC converter is manufactured in China and backed by MEAN WELL's quality assurance. It is an ideal solution for industrial electronics, power supply systems, and voltage conversion needs to enhance system stability and performance.
Explore more MEAN WELL DC/DC Converters and power supply options at EnvMart for trusted industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 24V DC.
The maximum input voltage for the RSD-60G-24 is 36V DC.
This converter has an efficiency rating of up to 90%.
The operating temperature range for the RSD-60G-24 is from -40°C to +70°C.
It has an output current capability of 2.5A.
The ripple and noise specification is 60mV peak-to-peak.
The dimensions are 128mm in length, 60mm in width, and 25mm in depth.
This model uses a chassis mount type.
It features a 4000VDC isolation voltage and a built-in constant current limiting circuit for enhanced protection.
This converter is compliant with CE standards.
The MTBF for the RSD-60G-24 is approximately 593,800 hours.
The minimum input voltage required is 9V DC.
