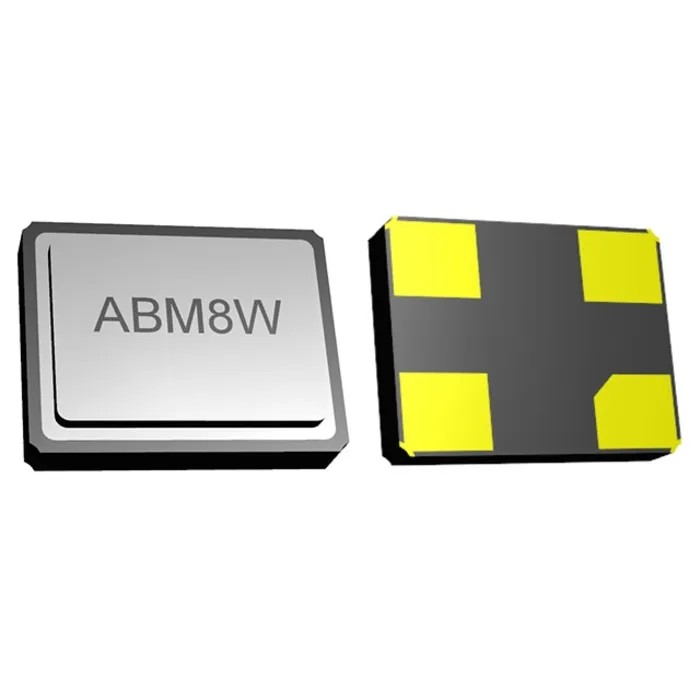

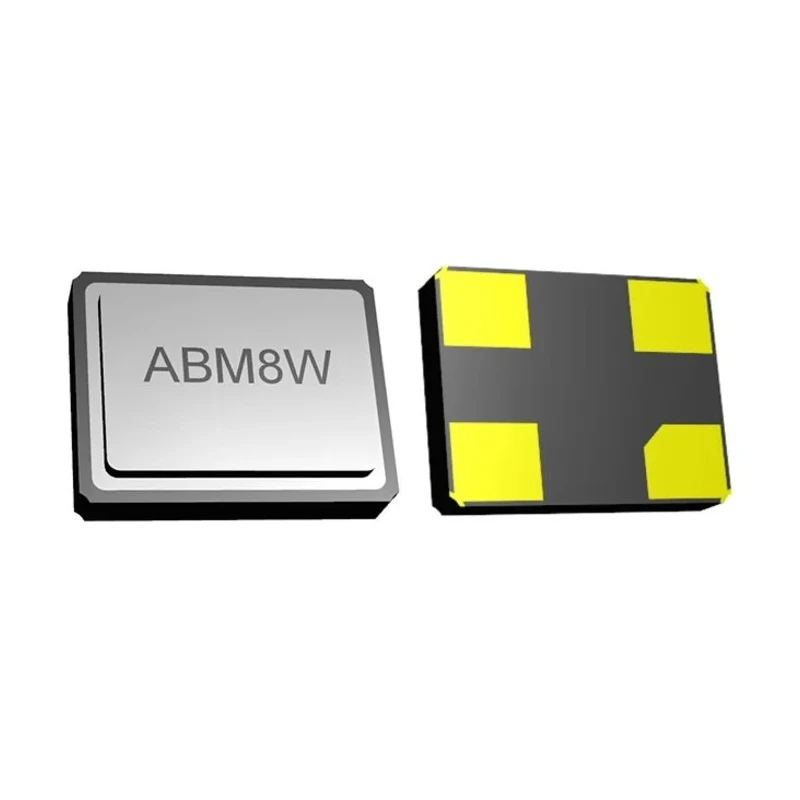

Abracon 12 MHz Crystal Unit Surface Mount 4-Pin 3.2 mm x 2.5 mm x 0.75 mm ±10 ppm Frequency ABM8W-12.0000MHZ-8-K1Z-T3

Abracon ABM8W-12.0000MHZ-8-K1Z-T3 is a precision 12 MHz crystal unit designed for surface mount applications. It features a compact 4-pin package measuring 3.2 mm in length, 2.5 mm in width, and a low profile 0.75 mm height, making it ideal for space-constrained electronic assemblies.

This crystal offers a frequency tolerance and stability of ±10 ppm, ensuring highly accurate frequency regulation essential for timing in consumer electronics, Bluetooth/BLE modules, IoT devices, wireless communication, and ultra-low power microcontrollers. The 4 pF load capacitance supports optimized oscillation for energy-saving wearable technology and machine-to-machine connectivity applications.

Designed to operate reliably in a wide temperature range from -40°C to 125°C, the ABM8W series crystal unit has a series resistance of 100 Ω, supporting stable and efficient oscillation performance. This product complies with RoHS regulations and is lead-free, supporting environmental safety and sustainability in electronic manufacturing.

The crystal is delivered in tape and reel packaging, facilitating streamlined automated PCB assembly and production efficiency for large volume manufacturing. Standard frequency: 12 MHz. Surface mount 4-pin package. Dimensions: 3.2 mm length x 2.5 mm width x 0.75 mm height.

Frequency tolerance and stability: ±10 ppm. Load capacitance: 4 pF. Operating temperature: -40°C to 125°C. Series resistance: 100 Ω. RoHS compliant and lead-free. Packaging: Tape and reel.

This Crystal Unit is suitable for industrial, laboratory, and commercial electronics applications including IoT devices, wearables, wireless modules, and M2M communications. For more products and technical solutions, explore the Electronics Components section at EnvMart.
