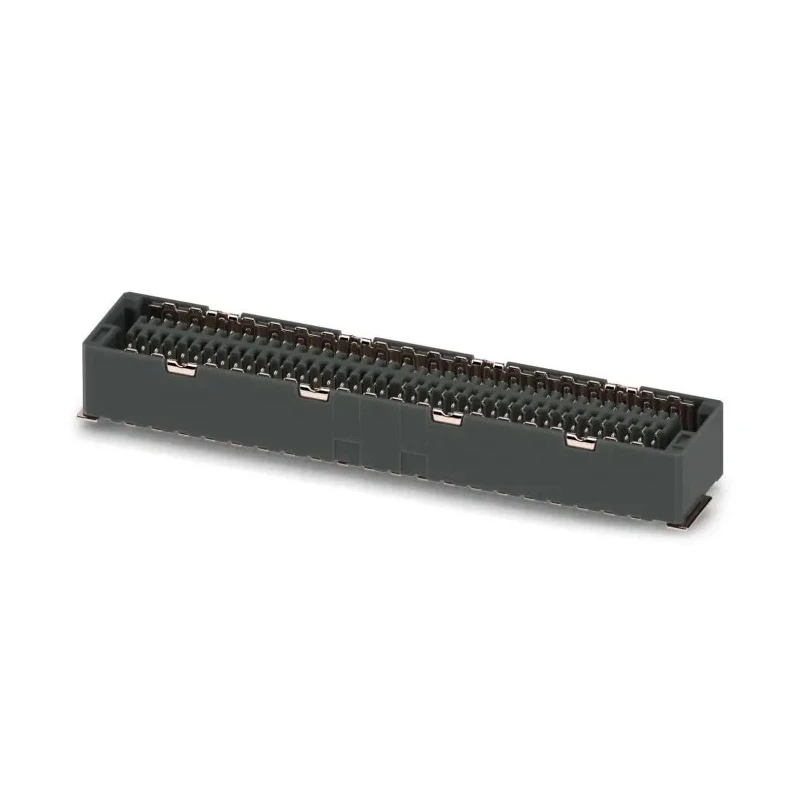

Phoenix Contact FP 0 8/ 80-FV-SH 4 85 Series Vertical Edge Connector Female, Surface Mount, 80 Contacts, 0.8 mm Pitch 1043714

The Phoenix Contact 1043714 FP 0 8/ 80-FV-SH 4 85 series vertical edge connector is a female connector designed for surface mounting with 80 gold-plated contacts arranged in 2 rows and pitch of 0.8 mm. It supports a nominal current of 1.7 A at 20 °C and withstands a test voltage of 500 V AC. The housing is made from liquid crystal polymer, providing robust mechanical and thermal performance suitable for industrial and electronic applications.

This connector operates over a wide temperature range from -55°C to 125°C, making it highly reliable in harsh environments. It features ScaleX technology, which ensures high tolerance compensation and protects the contacts, enhancing durability and connection stability over time. The gold-plated copper alloy contacts guarantee excellent electrical performance and long-term transfer quality.

Designed with a vertical orientation and surface mount design, it is ideal for compact PCB assemblies and electronic device integration. The connector complies with international standards UL, EN, IEC, RoHS, and JEDEC, confirming its quality and environmental compliance.

Applications include industrial electronics, telecommunications, computing hardware, and any high-reliability electronic assembly requiring compact, high-performance Edge Connectors. Its German origin ensures high manufacturing standards and consistent product quality.

The connector features vertical orientation suitable for surface mounting. It supports 80 gold-plated copper alloy contacts arranged in 2 rows for enhanced conductivity. Rated for nominal current of 1.7 A and voltage up to 500 V.

Operates reliably from -55°C to 125°C with high temperature tolerance. Constructed with liquid crystal polymer housing for durability and stability. Complies with UL, EN, IEC, RoHS, and JEDEC standards ensuring high quality and safety.

Includes ScaleX technology for high tolerance compensation and contact protection. Made in Germany, assuring premium German engineering and quality control. Explore the comprehensive range of Phoenix Contact connectors and related components at EnvMart for industrial, laboratory, and electronic assembly needs.
