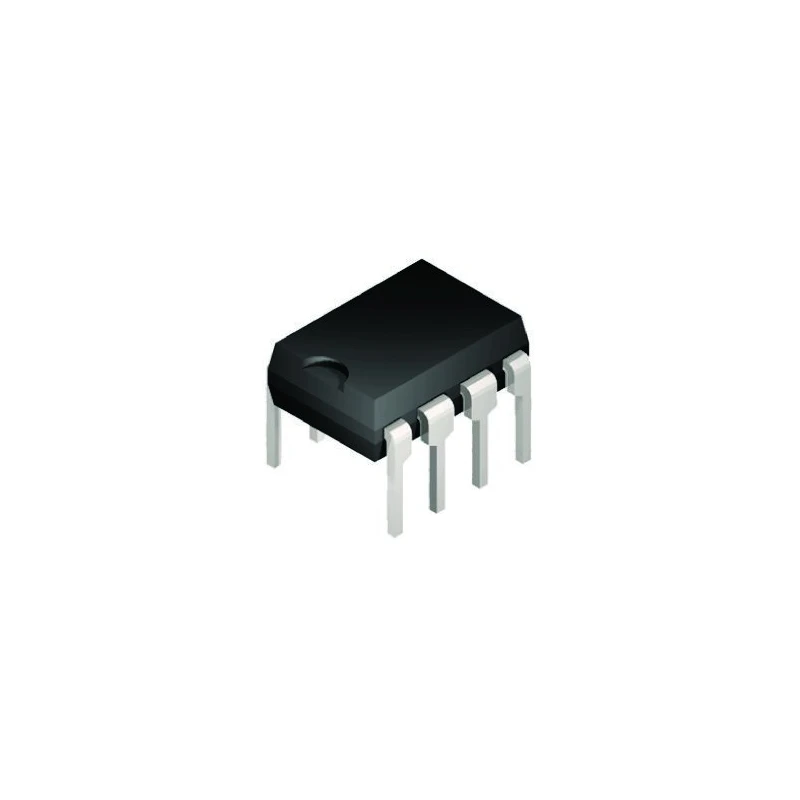

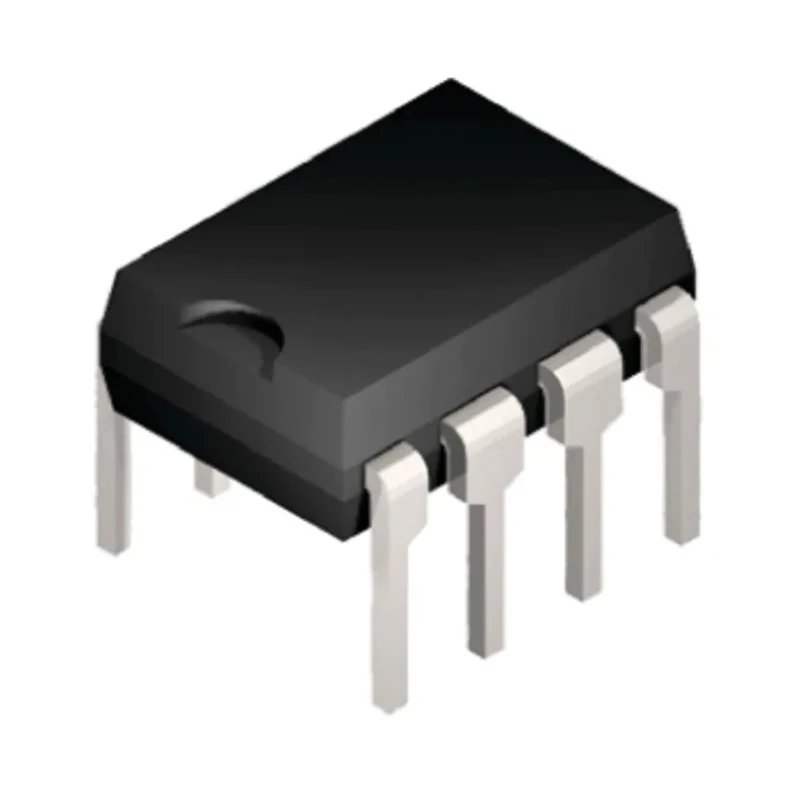

Texas Instruments Operational Amplifier 11 MHz Gain Bandwidth, 8-Pin 24V MDIP LM6132BIN/NOPB

The Texas Instruments LM6132BIN/NOPB is a high-speed operational amplifier providing an 11 MHz gain bandwidth and housed within an 8-pin medium dual in-line package (MDIP). Designed for through-hole mounting, this dual-channel device facilitates simple PCB integration within various electronic systems.

This operational amplifier supports supply voltages from 1.8 V up to 24 V, making it versatile for numerous power configurations. It features low input bias and offset currents, measuring 350 nA and 50 nA respectively, enhancing precision for sensitive analog applications. The device's input offset voltage stands at 8 mV, contributing to precise signal processing.

Its high slew rate of 14 V/μs ensures rapid output voltage changes in response to input, suiting applications that require fast signal amplification. The operating temperature range spans from -40°C to 85°C, allowing reliable performance under harsh industrial and commercial environments. The product meets the Restriction of Hazardous Substances (RoHS) directive, confirming compliance with environmental regulations.

Physical dimensions are approximately 10.16 mm in length, 6.35 mm in width, and 5.08 mm in height, making it a compact component suitable for space-constrained designs. The device is part of the LM6132 series renowned for robust performance in amplifier circuits with output current capability of 2 mA.

Features a through-hole mounting style for durable PCB connection. Dual channel configuration supports symmetric amplification needs. Wide supply voltage range caters to various industrial power standards. Low input bias and offset currents improve measurement accuracy.

High slew rate enables fast amplification response times. Extended temperature range ensures operational reliability in diverse conditions. RoHS compliant design conforms to modern safety and environmental standards. Compact MDIP package facilitates space-efficient assemblies.

This operational amplifier is widely suitable for industrial, laboratory, and electronic circuit design uses requiring precise and high-speed amplification. Texas Instruments’ LM6132BIN/NOPB integrates efficient performance within a rugged package, supporting applications in instrumentation, signal processing, and control systems.
