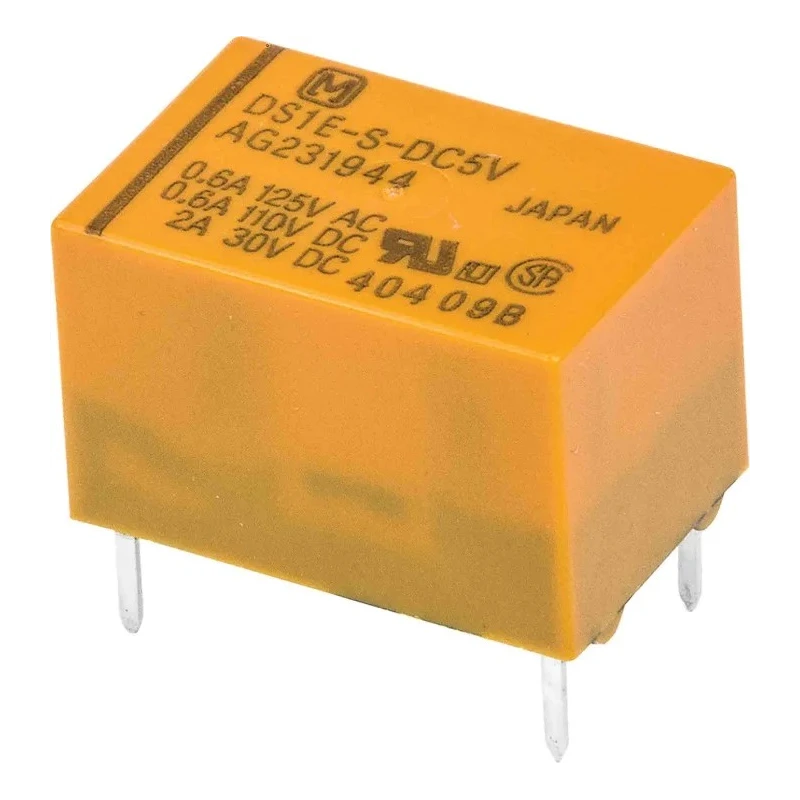

Panasonic PCB Signal Relay 5V DC Coil 3A SPST, Gold Plated Contacts DS1E-S-DC5V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9.9mm |
| Length | 20.2mm |
| Model | DS1E-S-DC5V |
| Width | 9.8mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | DS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| TE Connectivity PCB Signal Relay, 5V dc Coil, 1A, DPDTBrand | TE Connectivity |
| Omron PCB Signal Relay, 5V dc Coil, 2A, DPDTBrand | Omron |
Key Features
- The relay features a coil voltage of 5V DC, suitable for low voltage circuits.
- It supports a switching current of up to 3 amperes.
- Gold plated contacts provide high resistance to corrosion and reliable signal integrity.
- Compact dimensions with height 9.9mm, width 9.8mm, and length 20.2mm for easy PCB integration.
- Sealed construction allows usage in environments requiring automatic washing processes.
- Coil resistance is 125 ohms with a coil power of 200 milliwatts ensuring efficient operation.
- Operates reliably across a temperature range from -40°C to 70°C.
- Typical applications include telecommunications, measurement equipment, and computer systems.
Product Description
Panasonic DS1E-S-DC5V PCB Signal Relay is a highly sensitive miniature relay designed for PCB mounting with standardized compact dimensions (9.9mm height, 9.8mm width, 20.2mm length). It operates on a 5V DC coil voltage and supports a 3A switching current with a contact configuration of SPST.
The relay's gold plated contacts enhance performance by offering superior corrosion resistance and signal fidelity. Its sealed construction ensures durability and suitability for use in automatic washing environments.
Operating reliably in harsh conditions, this relay withstands temperatures from -40°C to 70°C, making it ideal for industrial, telecommunications, laboratory instrumentation, and computer equipment applications.
The coil resistance of 125 ohms and power consumption of 200 milliwatts highlight its energy-efficient design. The PCB terminal connection and dual inline pinning simplify integration on printed circuit boards.
DS Series relays from Panasonic offer high resistance to vibration and shock due to their polarized magnetic circuits, ensuring stability in demanding environments. The relay features a coil voltage of 5V DC, suitable for low voltage circuits.
It supports a switching current of up to 3 amperes. Gold plated contacts provide high resistance to corrosion and reliable signal integrity. Compact dimensions with height 9.9mm, width 9.8mm, and length 20.2mm for easy PCB integration.
Sealed construction allows usage in environments requiring automatic washing processes. Coil resistance is 125 ohms with a coil power of 200 milliwatts ensuring efficient operation. Operates reliably across a temperature range from -40°C to 70°C.
Typical applications include telecommunications, measurement equipment, and computer systems. Terminals are PCB type suitable for dual inline pinning installation. Explore more Panasonic Signal Relays and related products at EnvMart for your electrical and automation needs.
