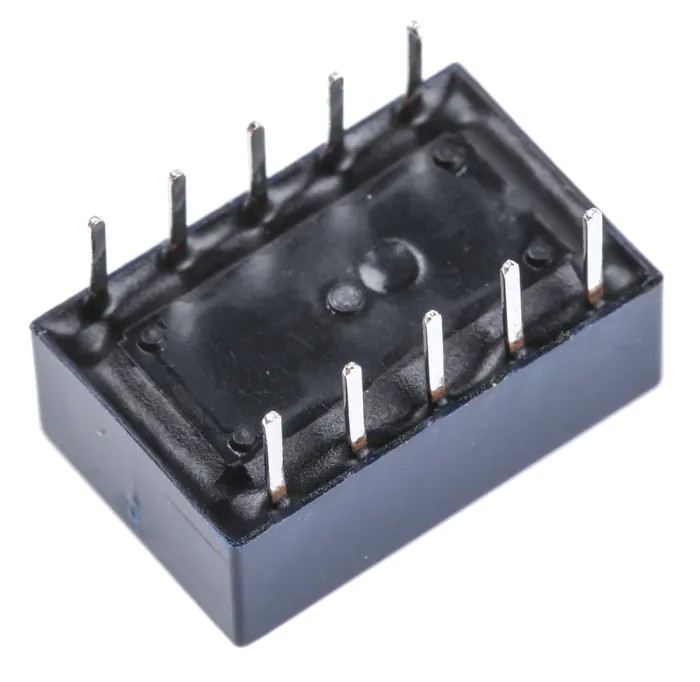

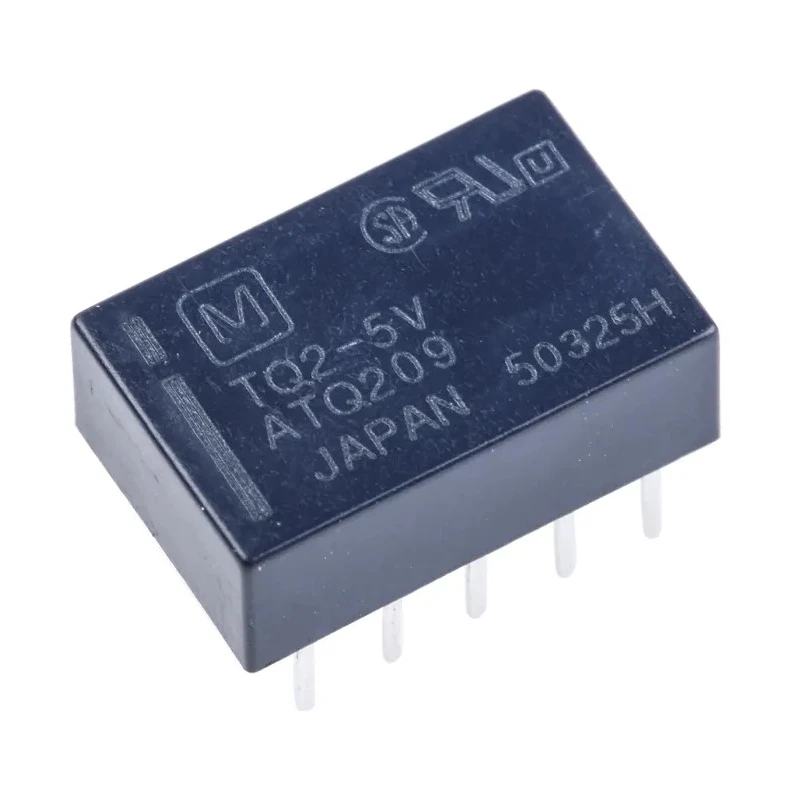

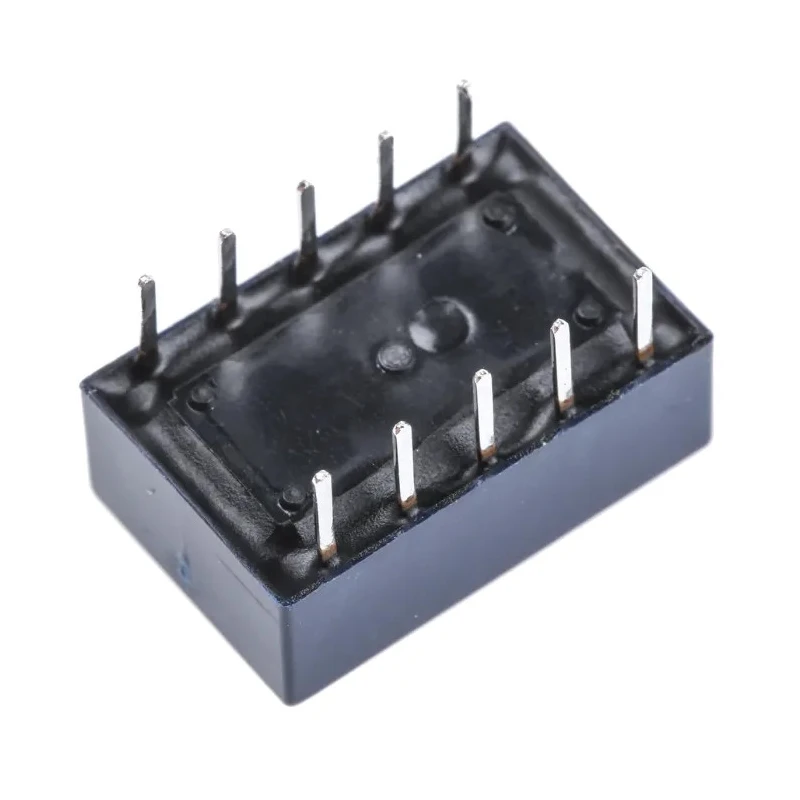

Panasonic PCB Signal Relay 5V DC Coil DPDT, Low Profile 5mm Height TQ2-5V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 14mm |
| Model | TQ2-5V |
| Width | 9mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TQ2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Coil Power | 140mW |
| Panasonic PCB Mount HF Relay, 5V dc Coil, DPDTBrand | Panasonic |
Key Features
- This relay features a compact flat body with a low profile height of 5mm.
- Coil power consumption is 140mW ensuring energy efficiency.
- Gold-plated contacts provide excellent conductivity and durability.
- It operates reliably between temperatures of -40°C to 70°C.
- High sensitivity with low coil resistance at 178 ohms.
- Designed for solder terminal type installation on PCBs.
- It complies with RoHS environmental standards and key certifications.
- Suitable for communication, measurement, and industrial machine applications.
Product Description
Panasonic TQ2-5V PCB Signal Relay features a 5V DC coil voltage and double pole double throw (DPDT) contact configuration, suitable for mounting directly on printed circuit boards. It offers a low profile height of 5mm and compact dimensions of 14mm length by 9mm width, ideal for space-constrained electronic assemblies.
With a coil power rating of only 140mW and coil resistance of 178 ohms, this relay provides efficient operation and high sensitivity. The contacts are gold plated to ensure low contact resistance of 50 milliohms and long service life. Operating temperature ranges from -40°C to 70°C, supporting a wide variety of industrial environments.
This relay uses solder-type terminals for PCB mounting and complies with the RoHS directive, making it environmentally friendly. Its high frequency characteristics, low thermal electromotive force, and compliance to ANSI/ESD S20.20 and BS EN 61340-5-1 standards make it reliable for precise signal switching in communication systems, measurement and quality assurance instruments, and industrial machinery controls.
Compact, flat body with low profile surface-mount terminals. High sensitivity and excellent switching performance. Coil voltage: 5V DC with coil power 140mW. Gold plated contacts for durability and improved conductivity.
Wide operating temperature: -40°C to 70°C. RoHS compliant with ANSI and BS EN certifications. Ideal for use in communication, industrial machinery, and test equipment.
As a proven industrial-grade PCB relay, the Panasonic TQ2 series ensures high reliability and quality assurance. This product is made in Japan, reflecting high manufacturing standards. EnvMart customers can rely on this relay for sophisticated electronic switching requirements across industrial, automation, and communications sectors.
Explore more Panasonic relays and other Signal Relay options in the EnvMart Electronic & Electricals category for comprehensive solutions to your industrial automation needs.
