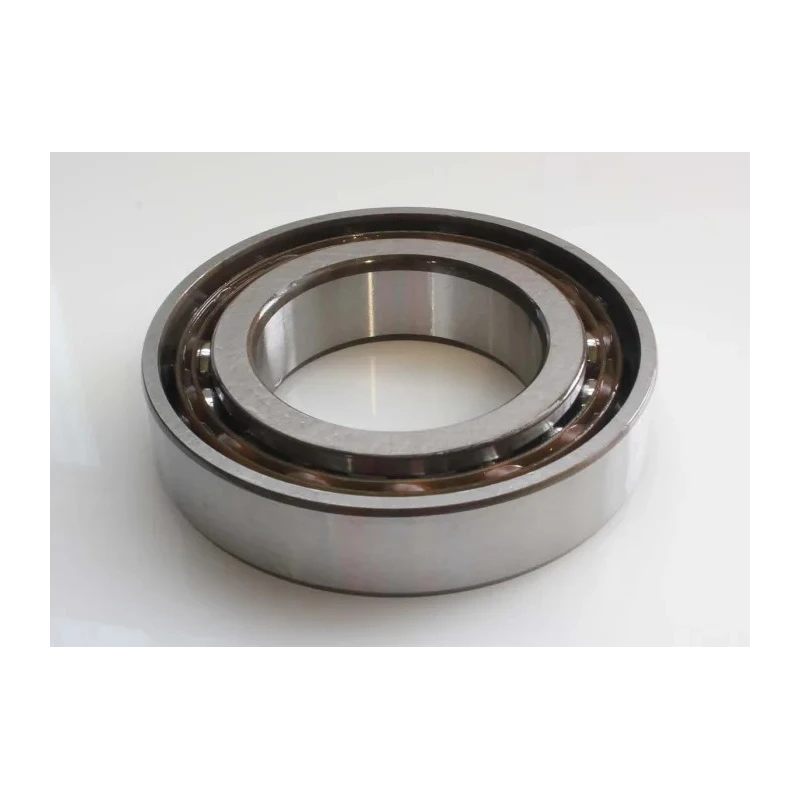

RS PRO Single Row Angular Contact Ball Bearing 15 mm ID 35 mm OD 11 mm Race Width 7202B

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Single Row Angular Contact Ball Bearing 15 mm ID 35 mm OD 11 mm Race Width 7202B

Name: RS PRO Single Row Angular Contact Ball Bearing 15 mm ID 35 mm OD 11 mm Race Width 7202B
Brand: RS PRO
SKU: 422333
Price: 20.22 USD
Availability: InStock



Category Mechanical, Fluid Power & Tools Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	7202B
Series	2 Light
Outside diameter	35mm
Inside Diameter	15mm
Number of Rows	1
Ball Material	Steel
Limiting Speed	25000rpm
Internal Clearance	CN
End Type	Open
Bore Type	Parallel
Bearing Type	Single Row Angular Contact Ball
Cage Material	Steel
Race Width	11mm
Race Material	Steel
Static Load Rating	4.77kN
Race Type	Plain
Dynamic Load Rating	8.66N
Contact Angle	40°

Key Features

This bearing has a 15 mm inside diameter and 35 mm outside diameter with an 11 mm race width.
Constructed with steel cage, race, and balls for durability and strength.
Features a built-in 40° contact angle to support moderate to large axial loads in one direction.
Designed for high speed applications with a limiting speed of 25000 rpm.
Open end type bearing suitable for easy lubrication and maintenance.
Single row angular contact design offers rigidity and high precision.
Applicable for industrial manufacturing, automotive, agriculture, and materials handling sectors.
Manufactured to RS PRO quality standards with model number 7202B.

Product Description

RS PRO 7202B is a Single Row Angular Contact Ball Bearing featuring a 15 mm inside diameter, 35 mm outside diameter, and 11 mm race width. It is engineered to provide high running accuracy and accommodate both radial and axial loads associated with high rotating speeds.

The bearing construction includes steel cage, race, and ball materials, with an open end type design facilitating easy maintenance. The built-in 40° contact angle enhances the load capacity, supporting moderate to large axial loads in one direction while also handling light to moderate radial loads.

This bearing supports a limiting speed of 25000 rpm, making it suitable for high-speed industrial applications. The single row angular contact design offers increased rigidity and precision, beneficial for demanding mechanical environments.

These ball bearings can be paired in various mounting combinations such as back-to-back (DB), face-to-face (DF), and tandem (DT) to accommodate axial loads in different directions, providing installation flexibility.

Typical application areas include agricultural equipment, industrial manufacturing machinery, automotive components, and materials handling systems where high load capacities and precision bearing performance are required.

Manufactured in China under RS PRO's rigorous quality standards, this bearing model 7202B offers reliable performance and durability for industrial and mechanical use. This bearing is constructed with steel cage, race, and balls for long-lasting durability.

The 40° contact angle improves rigidity and load handling capabilities. Designed for high speeds up to 25000 rpm, suitable for dynamic industrial environments. Single row angular contact design enables precise axial and radial load support.

Open end design allows easier lubrication and maintenance routines. Can be paired in various mounting arrangements for versatile application needs. Ideal for use in agriculture, automotive, materials handling, and industrial manufacturing.

Explore our selection of RS PRO bearings and related products at EnvMart for comprehensive industrial solutions.
