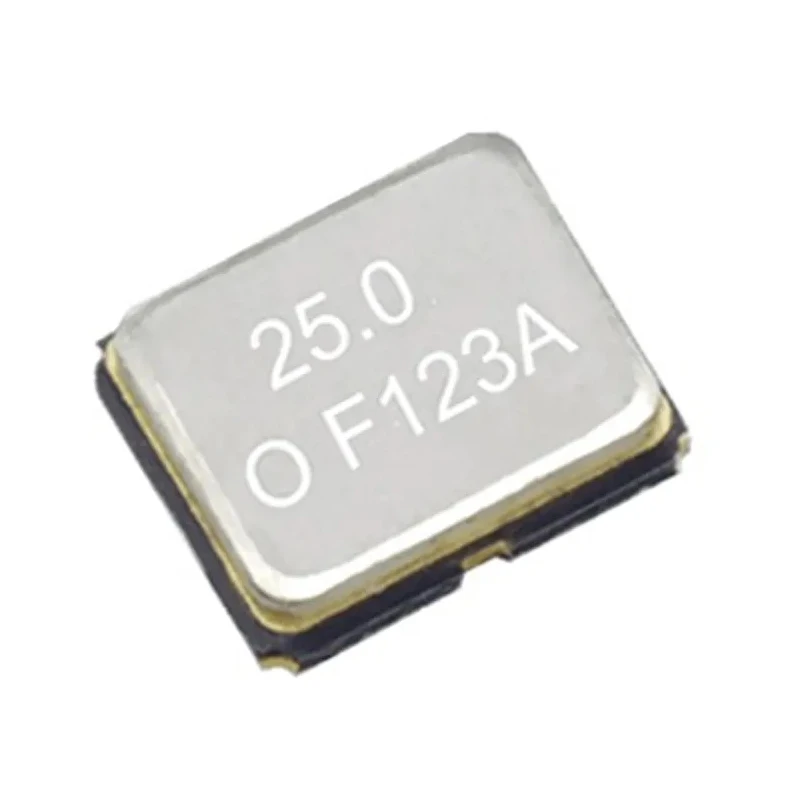

Epson 25MHz XO Crystal Oscillator CMOS 4-Pin Surface Mount SG-210 STF X1G004171003312

The Epson X1G004171003312 is a 25MHz XO Crystal Oscillator featuring CMOS output and a compact 4-pin surface mount configuration, measuring 2.5mm in length, 2.0mm in width, and 0.8mm in height. It operates within a broad supply voltage range of 1.6V to 3.6V, making it versatile for various electrical designs.

This oscillator belongs to the SG-210 STF series, known for low current consumption, excellent phase noise performance, and reliable output frequency stability. Its operating temperature range from -40°C to +105°C ensures robustness under extreme conditions, suitable for industrial, automotive (non-automotive certified), telecommunications, and consumer electronics applications.

The compact ceramic case of the oscillator facilitates easy surface mount assembly in high-density PCB layouts, optimizing space without compromising performance. Compliance with ISO 14001, ISO9001, ISO/TS 16949 quality standards, and EU RoHS directive attests to environmental and manufacturing quality adherence.

Key features include 15pF load capacitance for accurate frequency control, a CMOS output level compatible with low-voltage logic circuits, and a 4-pin surface mount format designed for automated assembly processes.

This product is ideal for use in signal processing, timing circuits, and frequency generation in industrial, laboratory instrumentation, communication systems, and embedded electronics.

Operates at a frequency of 25MHz with XO oscillator type. Features CMOS output level compatible with low voltage circuits. Supports supply voltage range from 1.6V to 3.6V for flexible power requirements. Compact surface mount package with 4 pins, dimensions 2.5mm x 2.0mm x 0.8mm.

Wide operating temperature range of -40°C to +105°C suitable for harsh environments. Low current consumption with excellent phase noise characteristics. Complies with ISO 14001, ISO9001, ISO/TS 16949, and EU RoHS standards.

Part of the SG-210 STF series designed for high stability applications. Explore the selection of advanced Crystal Oscillators at EnvMart, trusted for precision and quality in electronics manufacturing.
