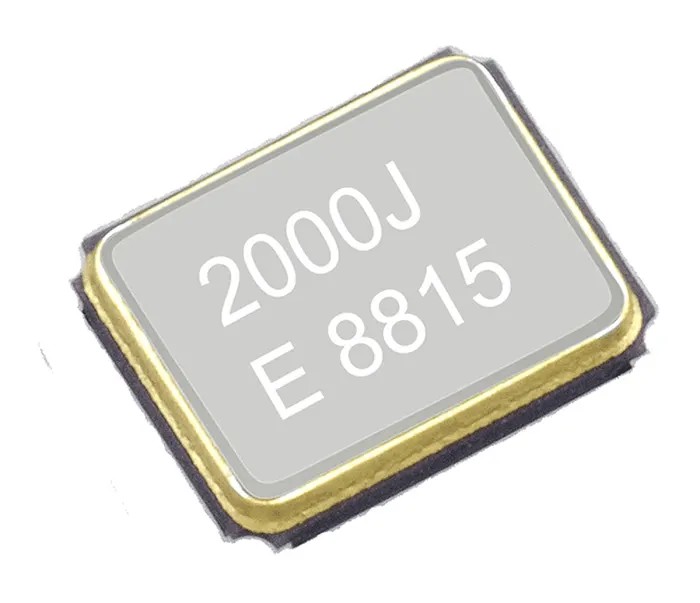

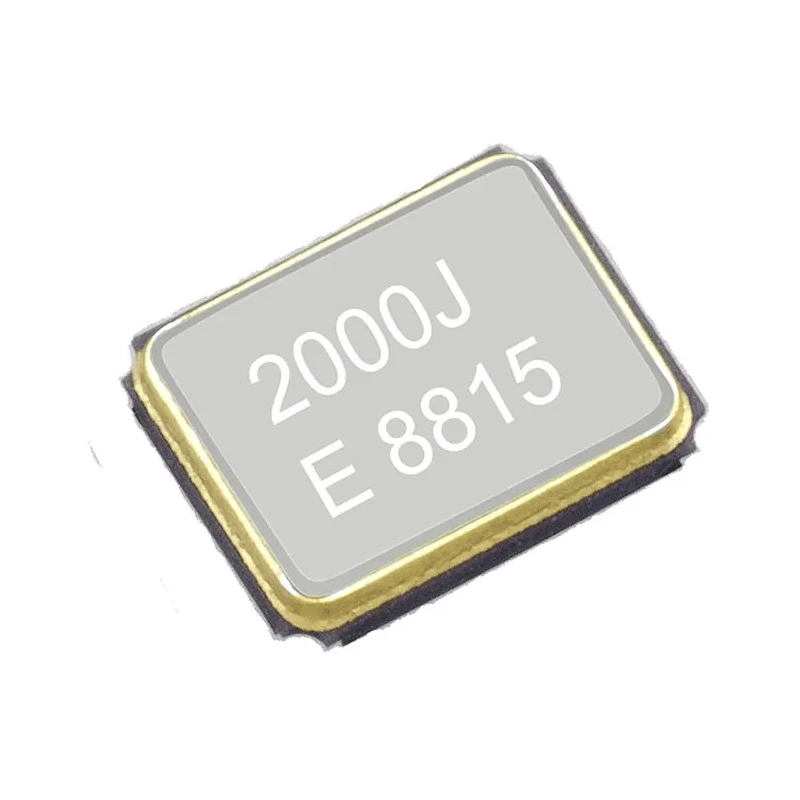

Epson 16 MHz Crystal Unit TSX-3225 Surface Mount ±10 ppm 4-Pin 3.2x2.5x0.6 mm X1E000021011612

Epson X1E000021011612 16 MHz Crystal Unit TSX-3225 is a surface mount passive electronic component designed to provide precise frequency control in various electronic circuits. It operates at a fundamental overtone order with a load capacitance of 8 pF and a series resistance of 60 Ω, delivering stable and accurate oscillation necessary for communication and processing devices.

The crystal unit features a low-profile TSX-3225 ceramic package measuring 3.2 mm in length, 2.5 mm in width, and 0.6 mm in height, making it suitable for space-constrained PCB designs. Its 4-pin layout ensures secure and reliable mounting for optimal electrical contact.

This component is engineered with an operating temperature range from -40°C to 85°C, enabling dependable performance in industrial, telecommunications, and consumer electronics environments including mobile phones, Bluetooth devices, and W-LAN ISM band radios. The tight frequency tolerance of ±10 ppm ensures minimal frequency drift, thus maintaining device synchronization and signal integrity.

Standard frequency: 16 MHz. Package Type: TSX-3225 ceramic case. Pin Count: 4. Load Capacitance: 8 pF. Frequency Tolerance: ±10 ppm. Operating Temperature Range: -40°C to 85°C. Series Resistance: 60 Ω. Application areas include clock generation for MPU, wireless communication modules, and other timing circuits.

Compliant with international environmental standards such as RoHS and REACH. Ideal for industrial, laboratory, telecommunications, and consumer electronics applications. Enhance your PCB designs with this reliable oscillation crystal unit from Epson.
