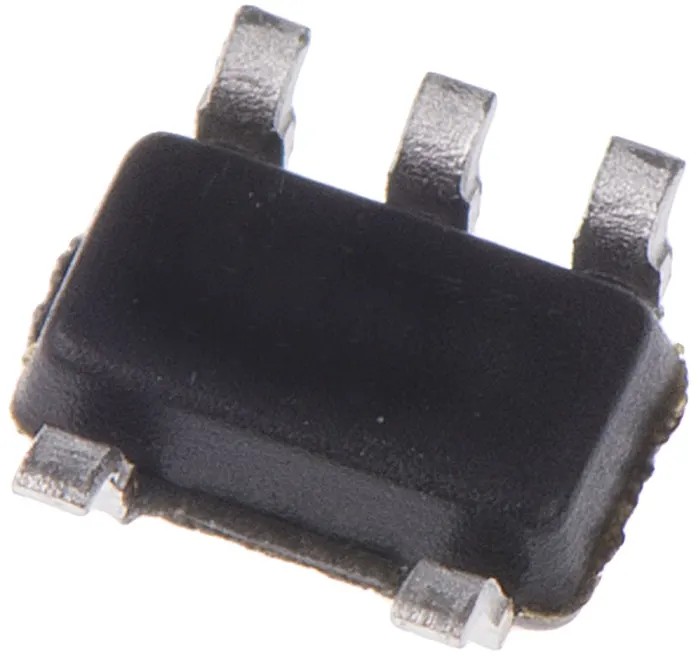

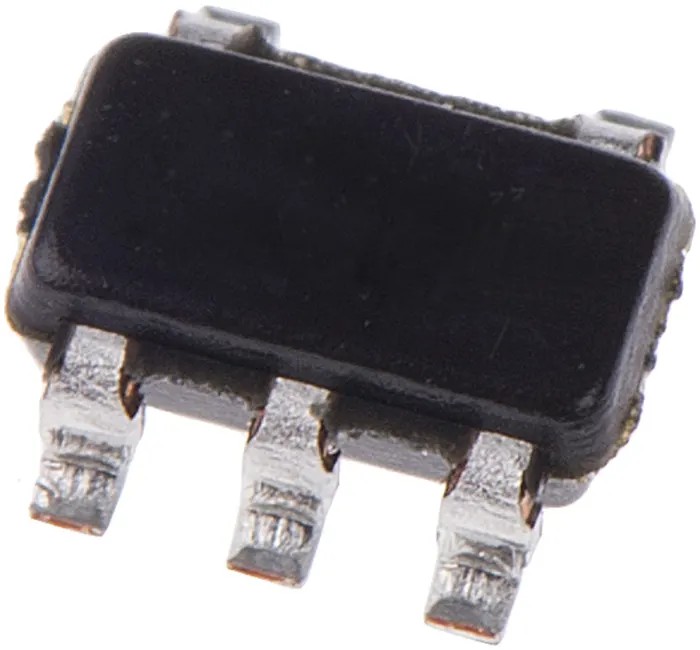

STMicroelectronics Operational Amplifier 3 MHz 5-Pin 12V SOT-23 TS951ILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TS951ILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TS951 |
| Output Current | 10mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 200 nA |
| Vos - Input Offset Voltage | 8 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 80 nA |
| Low current consumption | 0.9 mA (at 3 V) |
Key Features
- Single channel BiCMOS op amp optimized for 3 V to 5 V operation.
- Low distortion of 0.01% ensures signal integrity in precision applications.
- Rail-to-rail input common mode voltage range and output voltage swing.
- High-speed operation with a bandwidth of 3 MHz and slew rate of 1 V/μs.
- Low current consumption of 0.9 mA at 3 V for efficient power use.
- Wide supply voltage range from 2.7 V up to a maximum of 12 V.
- Compatible with automotive standards AEC-Q100 ensuring reliability.
- Operating temperature range from -40°C to 125°C for industrial environments.
Product Description
STMicroelectronics TS951ILT operational amplifier provides a high-performance solution for industrial, automotive, and consumer electronics applications. This device offers a 3 MHz gain bandwidth product and low distortion (0.01%) which makes it suitable for precision signal amplification and conditioning.
Housed in a compact 5-pin SOT-23 surface mount package with dimensions of 3 mm by 1.75 mm by 1.3 mm, the TS951ILT supports rail-to-rail input and output voltage ranges to maximize signal swing in low voltage power systems.
Designed for power efficiency, it consumes only 0.9 mA at 3 V supply voltage, while supporting operation from 2.7 V up to 12 V, making it versatile for various power supply configurations. The device meets automotive standard AEC-Q100, providing robustness for automotive electronic systems.
Its wide operating temperature range from -40°C to 125°C ensures reliable performance in harsh environments. The input bias current is low at 200 nA, and the device maintains an input offset voltage of 8 mV, supporting accurate and stable amplification.
Typical applications include analog signal processing in instrumentation, sensor conditioning, and communications equipment in industrial and automotive fields. Single channel BiCMOS operational amplifier optimized for low voltage operation.
Low distortion and rail-to-rail input/output capabilities enhance signal quality. Wide supply voltage operation and low current consumption offer design flexibility. Robust automotive-grade qualification supports critical applications.
Compact SOT-23 package designed for surface mounting on PCBs. Explore other Operational Amplifiers and semiconductor components in EnvMart to meet your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TS951ILT operational amplifier has a gain bandwidth product of 3 MHz, making it suitable for high-speed applications.
This model operates within a supply voltage range of 2.7 V to a maximum of 12 V, providing flexibility for various applications.
The maximum operating temperature for this operational amplifier is 125°C, allowing it to function in harsh environments.
The SOT-23 package of the TS951ILT measures 3 mm in length, 1.75 mm in width, and 1.3 mm in height.
The input offset voltage for this operational amplifier is 8 mV, which supports accurate and stable amplification.
It has a low current consumption of 0.9 mA when operating at a supply voltage of 3 V, enhancing power efficiency.
Yes, this operational amplifier meets the automotive standard AEC-Q100, ensuring reliability in automotive applications.
The slew rate of this model is 1 V/μs, which is suitable for high-speed signal processing.
The input bias current for this operational amplifier is 200 nA, contributing to its precision in signal amplification.
This model is a single channel operational amplifier, designed for various signal processing applications.
The minimum operating temperature for the TS951ILT is -40°C, allowing it to be used in extreme conditions.
This operational amplifier is designed for surface mounting, specifically in a SOT-23 package.
