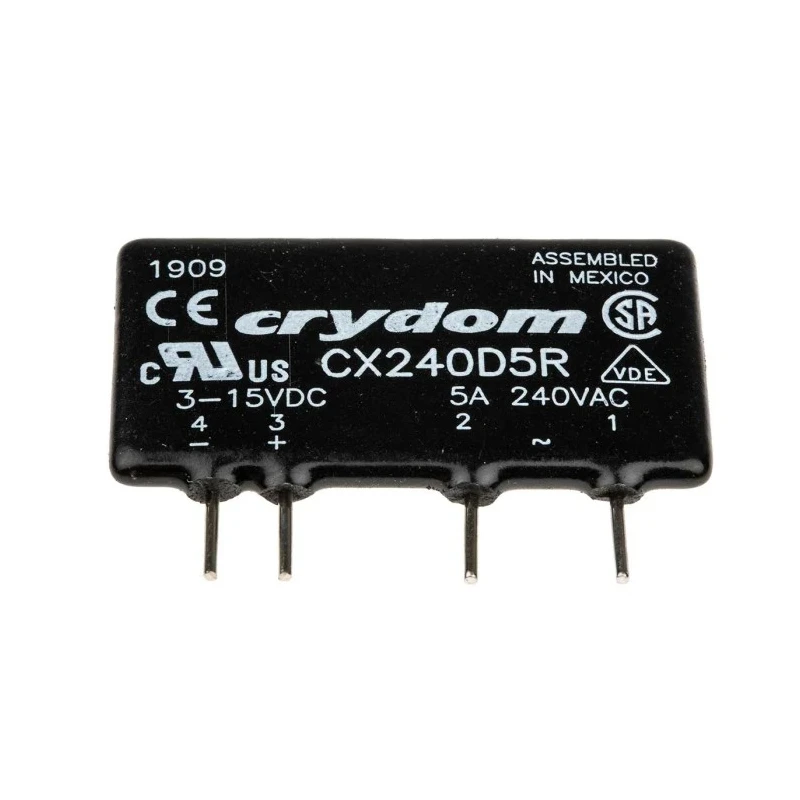

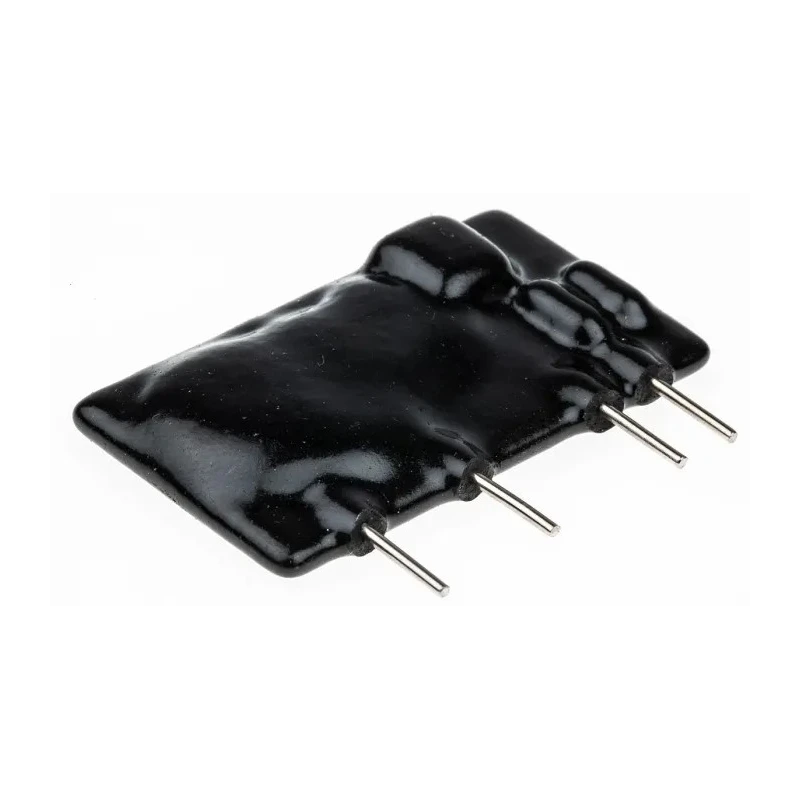

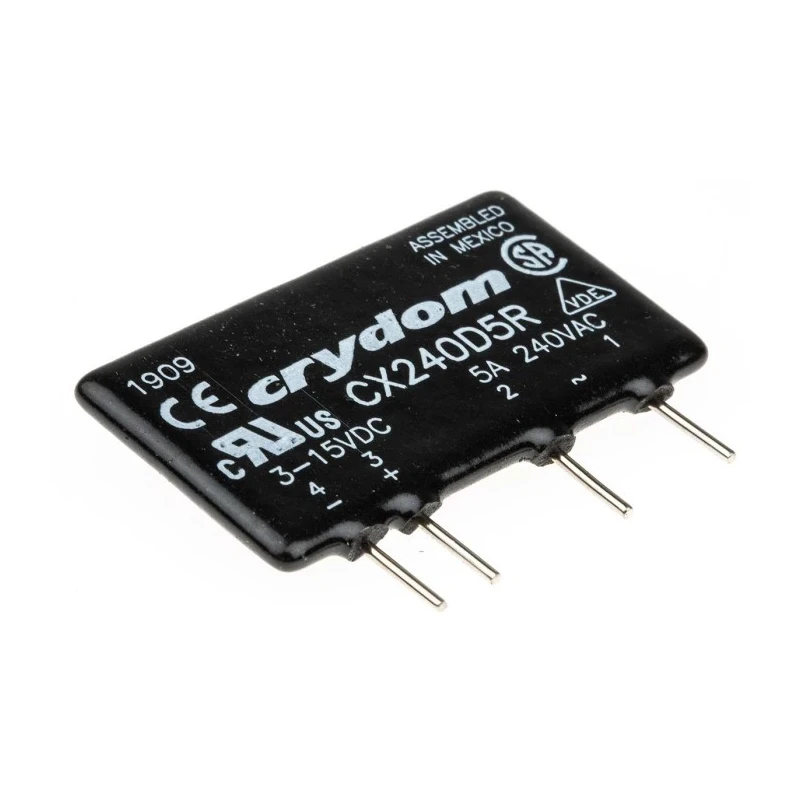

Crydom Solid State Relay, PCB Mount, 5 A Load, 280 V AC Load, 15 V DC Control CX240D5R

Crydom CX240D5R Solid State Relay is a high-quality electrical component designed for efficient load switching in industrial and automation applications. This relay supports a maximum load current of 5 amperes and can handle load voltages up to 280 V AC, making it ideal for use in low power AC systems.

The device features a compact SIP-4 package and through-hole mounting terminals that provide reliable and stable connections on PCB assemblies. Its control input voltage range of 4 to 15 V DC allows compatibility with diverse controlling circuits. The SSR offers instantaneous switching functionality that is critical for applications requiring fast response times.

Operating in temperatures from -30°C to 80°C, the CX240D5R is suitable for harsh and demanding environments. The relay is encapsulated with thermally conductive epoxy to enhance resistance to heat and mechanical shocks, improving durability and lifespan.

With a low off state leakage current of 0.1 mArms and an SCR output type, this relay maintains energy efficiency and reliable operation. Its compact dimensions (43.1 mm length, 7.6 mm width, 25.4 mm height) also allow space optimization on printed circuit boards. This relay finds applications in multiplexers, home appliances, input/output control systems, and other industrial automation controls.

Compact SIP-4 package type for space-saving circuit integration. Through-hole terminal type ensures secure PCB connections. Supports operating load current up to 5 amperes and voltage of 280 V AC. Control voltage range from 4 to 15 V DC for flexible input control signal.

Operating temperature range from -30°C to 80°C for reliable performance in harsh conditions. Instantaneous switching function suitable for rapid response applications. Low off state leakage current minimizes power loss at 0.1 mArms.

Thermally conductive epoxy encapsulation for heat and impact resistance. Output type is SCR, enabling efficient AC load control. Compact dimensions: 43.1 mm length, 7.6 mm width, and 25.4 mm height.

This Crydom solid state relay is a dependable component for industrial automation, HVAC systems, manufacturing equipment, and other control devices requiring precise and efficient load switching capabilities. Environmentally robust, it meets key standards such as VDE, UL, CE, CSA, and RoHS, ensuring compliance and safety in professional applications.
