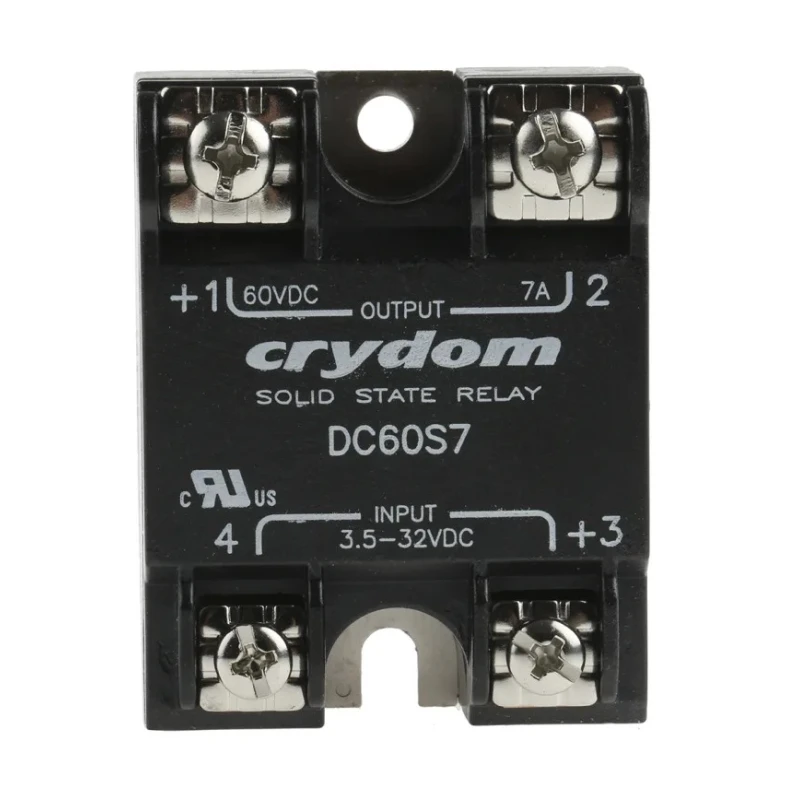

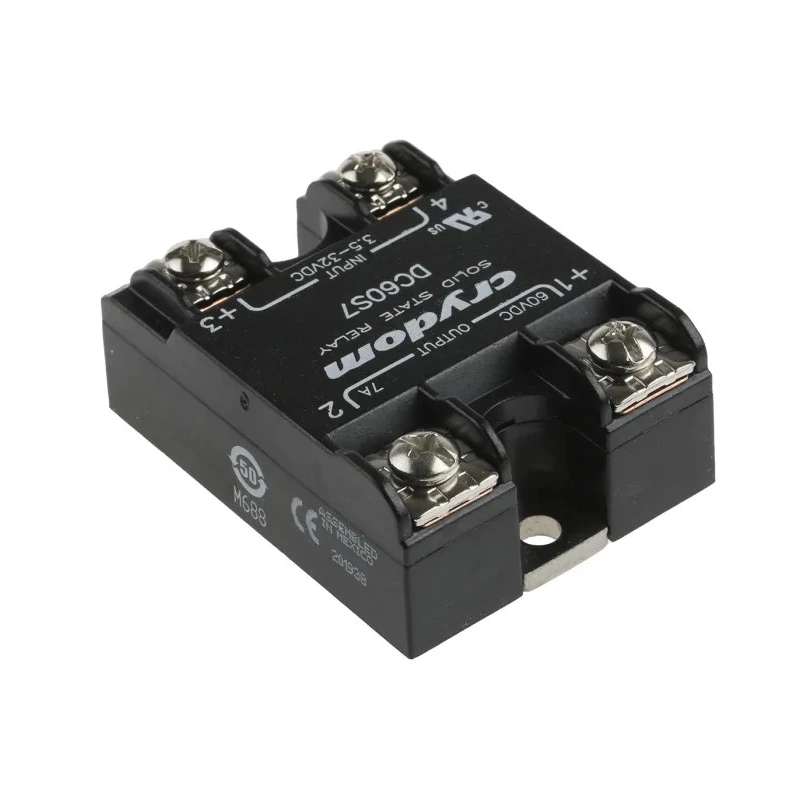

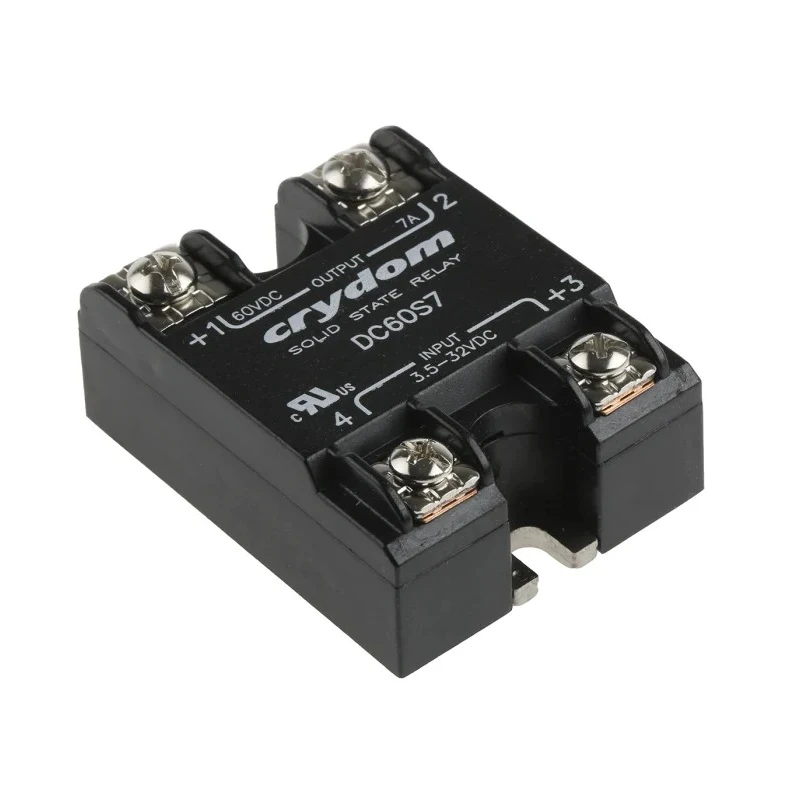

Crydom D60 Series Solid State Relay 7A Load Current Surface Mount 60V DC Load 32V DC Control DC60S7

Crydom DC60S7 Solid State Relay provides reliable DC switching capabilities with a maximum load current of 7 A and load voltage of up to 60 V DC. This relay is engineered for surface mount applications and controlled by DC voltage between 3.5 V and 32 V, making it suitable for a wide range of industrial and automation uses.

The relay features an aluminium baseplate that enhances heat dissipation and resists corrosion, greatly improving durability in challenging industrial environments. The thermally conductive epoxy housing safely manages temperatures up to 80°C and is self-extinguishing for enhanced operational safety.

Designed for high-speed digital logic circuits and radio transmission systems, the Crydom DC60S7 operates with minimal off-state leakage current of 0.1 mA and a capacitance of 8 pF, ensuring high-performance signal integrity. Its compact form factor, with dimensions of 58.4mm height, 45.7mm length, and 22.6mm width, makes it easy to incorporate into various panel designs.

The device offers a broad operating temperature range from -30°C to +80°C, enabling it to withstand harsh industrial and commercial environments. The screw terminal connection provides secure and robust wiring capability, and the single pole single throw (SPST) switch configuration is ideal for typical DC switching applications.

Crydom's D60 series solid state relays boast an impressive mean time between failures (MTBF) exceeding 21 million hours at 40°C, ensuring long-lasting uninterrupted operation. The lightweight design at just 70 grams permits minimal mechanical load on assemblies, promoting reliability.

Supports a maximum load current of 7 amperes for efficient switching. Designed for surface mount installation to simplify PCB mounting. Features a maximum load voltage rating of 60 volts DC for versatility. Control voltage range between 3.5V and 32V DC allows for flexible input control.

Operates reliably in temperatures ranging from -30°C to 80°C for harsh industrial environments. Constructed with a flame-resistant housing that self-extinguishes within 10 seconds for safety. Compact dimensions measuring 58.4mm height, 45.7mm length, and 22.6mm width.

Equipped with screw terminal type for secure electrical connections. Utilizes a transistor output type with SPST contact configuration for DC switching. Lightweight design at approximately 70 grams reducing strain on mounted circuits.

This solid state relay is ideal for industrial automation, signal conditioning, and other applications requiring noise-free and rapid switching of DC loads. The product supports use cases in manufacturing, telecommunications, process control, and other commercial or laboratory environments.

Choose the Crydom DC60S7 for dependable DC load switching with enhanced thermal management and long service life. Explore more industrial relays and Solid State Relays in your EnvMart category for comprehensive solutions.
