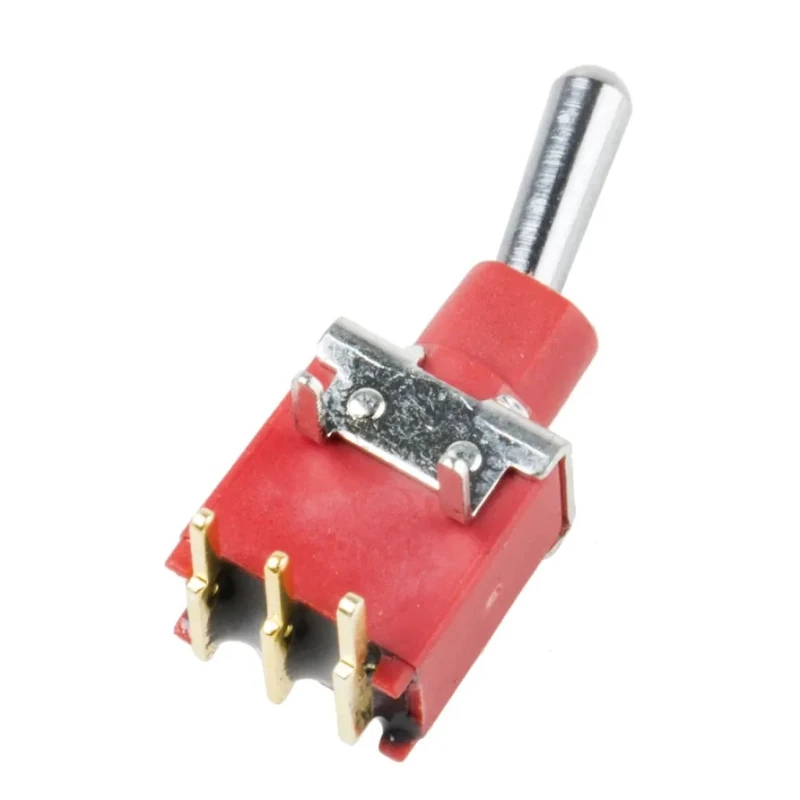

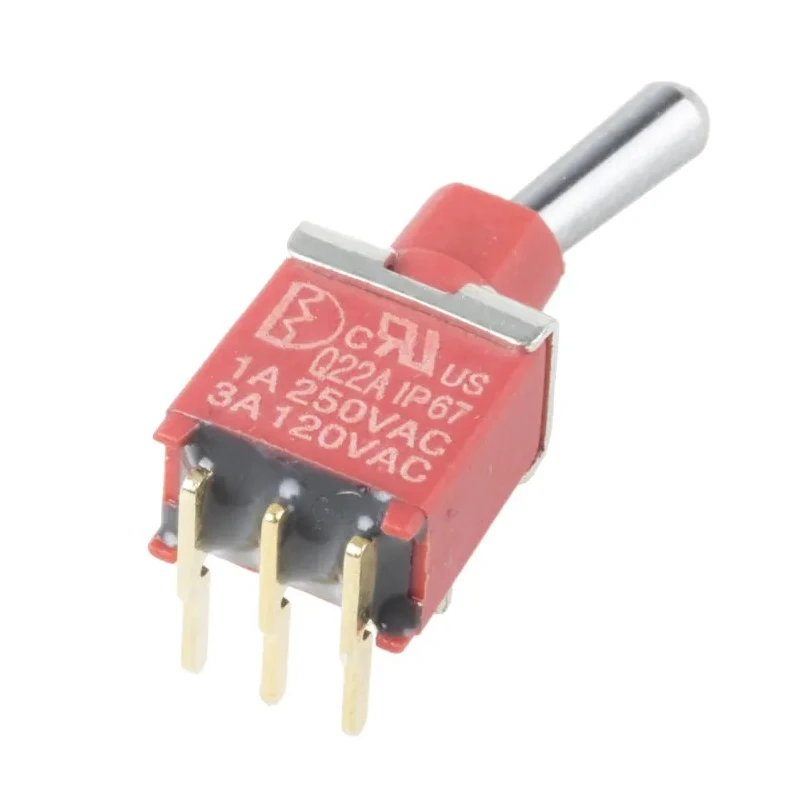

RS PRO Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 15 V dc 240 V ac 734-7163
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 734-7163 |
| IP Rating | IP67 |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS & Lead Free |
| Switch Operation | On-On |
| Actuator Length | 8.13mm |
| Contact DC Voltage | 15V dc |
| Switch Contact Current | 3A |
| Mechanical Life | 30000Cycles |
| Contact AC Voltage | 240V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- The switch features a PCB mount type with through hole terminal design.
- Its SPDT contact configuration allows On-On switch operation.
- The actuator is made of chrome plated brass with a length of 8.13 mm.
- This switch supports a maximum switch contact current of 3A.
- It has an IP67 rating ensuring protection against dust and water ingress.
- Operational temperature range extends from -30°C to 85°C for diverse environments.
- The switch is RoHS and Lead Free compliant, ensuring environmental safety.
- It provides a mechanical life expectancy of 30,000 cycles for durability.
Product Description
The RS PRO 734-7163 Toggle Switch is a robust PCB mount electrical component designed for switching applications with On-On operation and SPDT contact configuration. Rated for 15 V dc and 240 V ac, it offers dependable performance in industrial, automation, control, and manufacturing environments.
The switch features through hole terminals and a chrome plated brass actuator measuring 8.13 mm in length. It supports a switch contact current of 3A and has an IP67 rating, making it dust-tight and protected against immersion in water, suitable for harsh conditions.
With an operating temperature range from -30°C up to 85°C, it can be reliably used in cold or hot environments. Its RoHS and Lead Free compliance ensure it meets environmental standards. The mechanical life spans up to 30,000 switching cycles, offering long-term durability in industrial machinery.
Specifically, these sealed sub-miniature toggle switches in the RS series deliver low contact resistance and are available with either gold or silver contact material. The minimum insulation resistance of 1000 MΩ at 500 V and dielectric strength of 1000 Vrms at sea level guarantee safe and reliable operation. Ideal for use in electrical control panels, industrial electronics, automation systems, and PCB level switching applications.
PCB mount with through hole terminals. On-On SPDT contact configuration. Contact current rating of 3A. IP67 sealed sub-miniature design. Chrome plated brass actuator 8.13 mm long. Operating temperature from -30°C to 85°C.
RoHS and Lead Free compliant. Mechanical life of 30,000 cycles.
This toggle switch is suitable for a broad range of applications including industrial automation, manufacturing machinery, electrical instrumentation, and control systems. It complements various electronic assemblies requiring reliable manual switching with compact design and high durability. Browse more Toggle Switches and electrical components at EnvMart for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switch contact current rating for this model is 3A.
This toggle switch operates within a temperature range of -30°C to 85°C.
It features a PCB mount type with through hole terminals.
The switch has an IP67 rating, providing protection against dust and water ingress.
The actuator is made of chrome plated brass and measures 8.13 mm in length.
It has an SPDT (Single Pole Double Throw) contact configuration with On-On switch operation.
The mechanical life expectancy of this switch is 30,000 cycles.
It is rated for 15V dc and 240V ac.
Yes, it is RoHS and Lead Free compliant, ensuring it meets environmental safety standards.
This model is suitable for industrial automation, manufacturing machinery, electrical instrumentation, and control systems.
The dielectric strength is 1000 Vrms at sea level.
The minimum insulation resistance is 1000 MΩ at 500 V.
