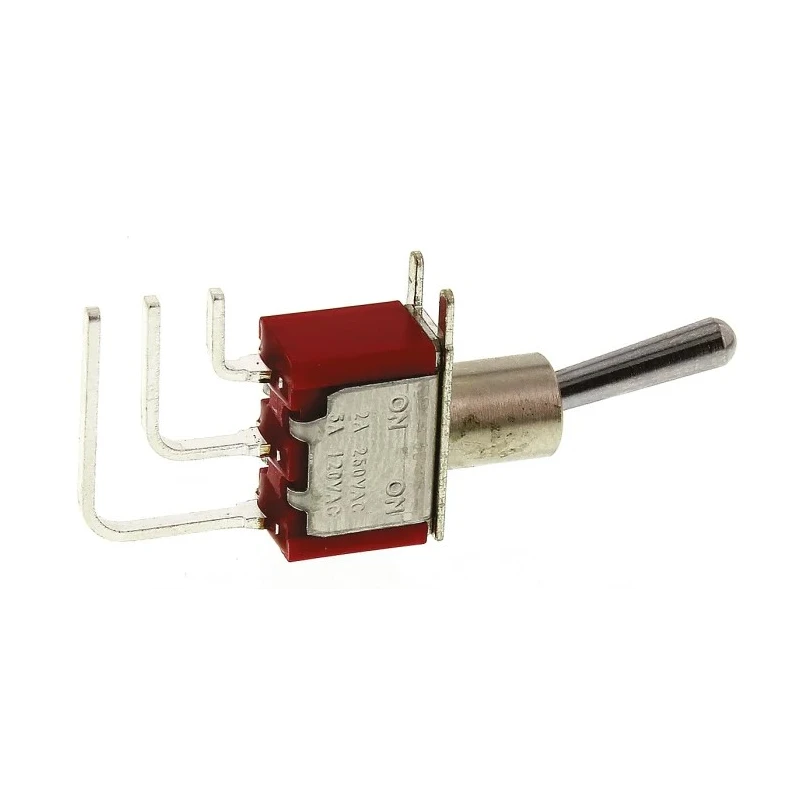

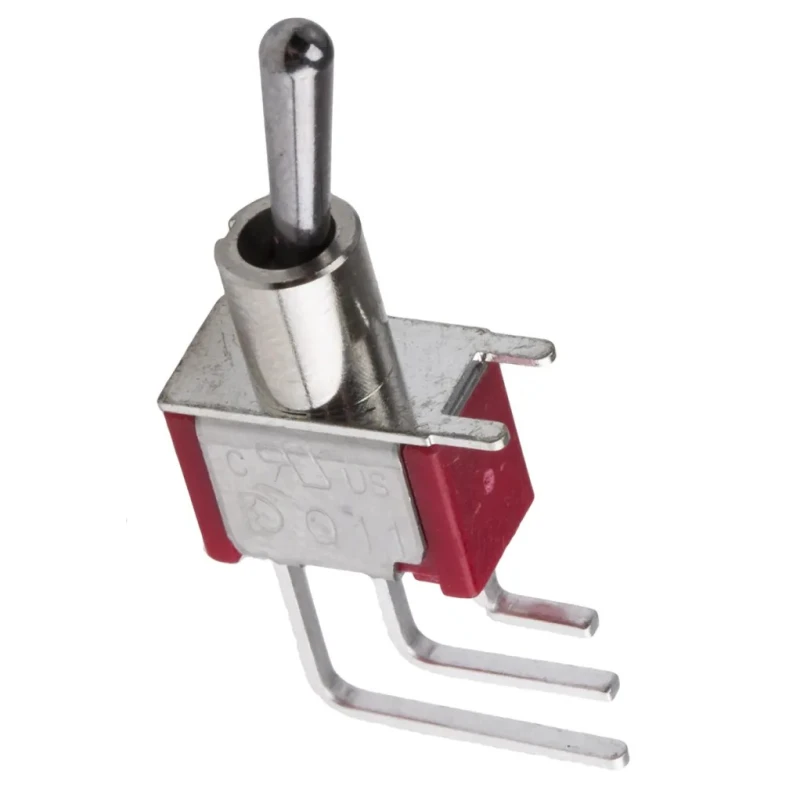

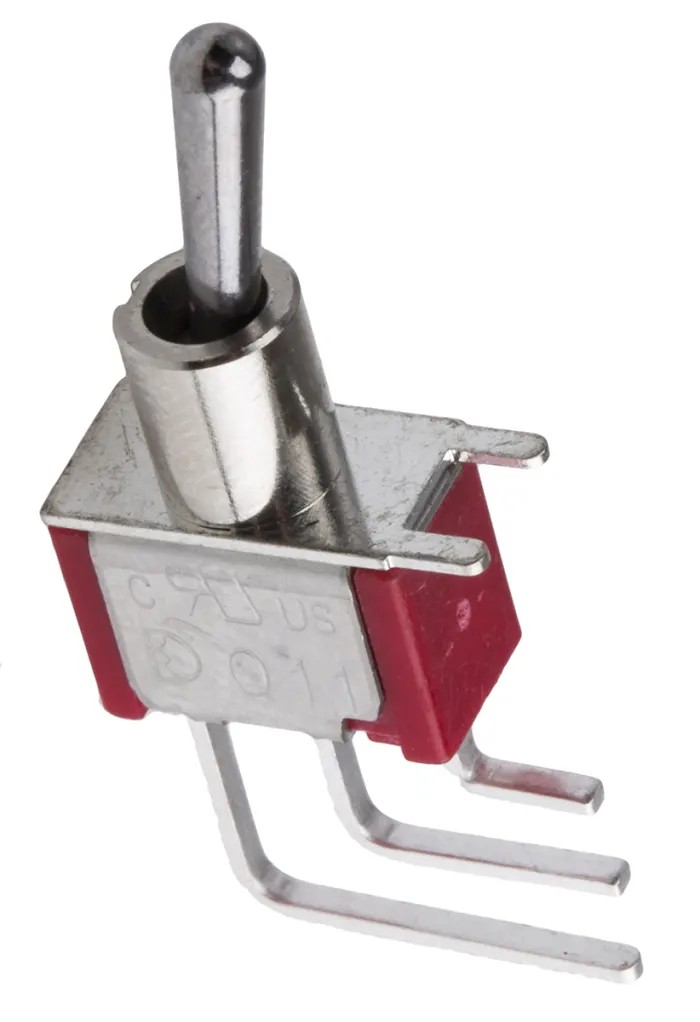

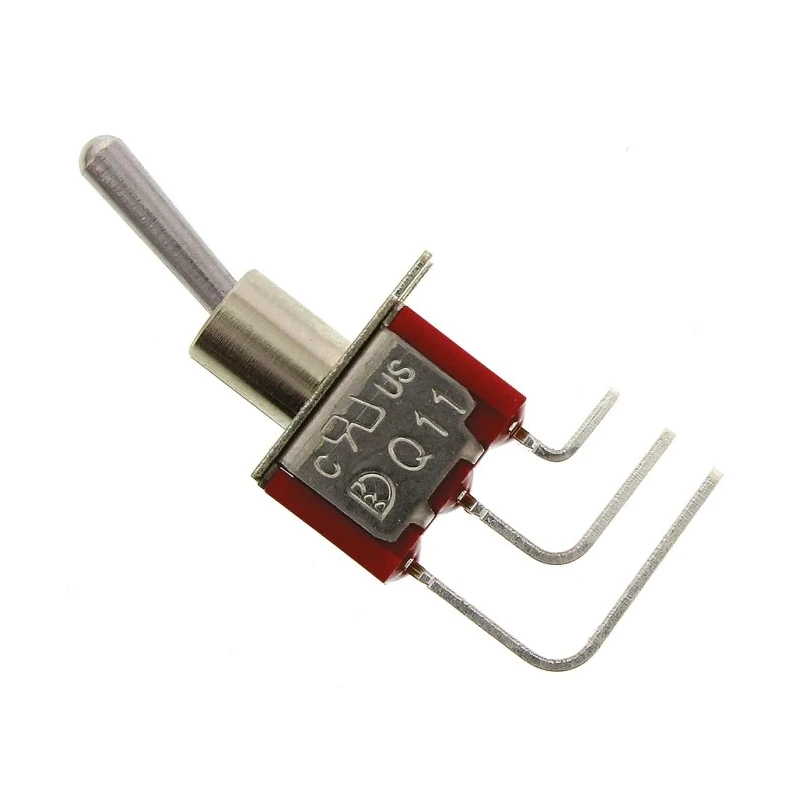

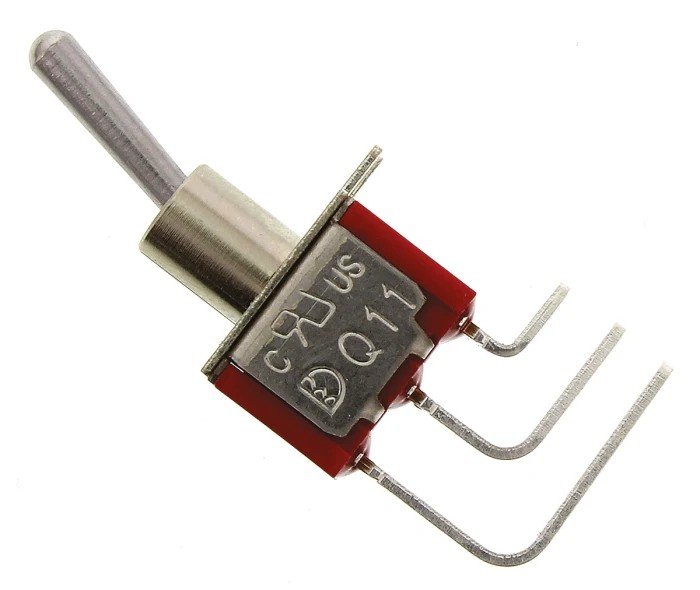

RS PRO Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 26 V dc 112 V ac 734-7072

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 26 V dc 112 V ac 734-7072

Name: RS PRO Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 26 V dc 112 V ac 734-7072
Brand: RS PRO
SKU: 128958
Price: 567.95 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	734-7072
Mount Type	PCB
Series	1MS
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-On
Minimum Operating Temperature	-30°C
Panel Cutout Size	6.35 mm
Terminal type	Through Hole
Standards/Approvals	RoHS, UL, CE, CSA
Switch Operation	On-On
Actuator Length	10.41mm
Contact DC Voltage	26V dc
Switch Contact Current	5A
Mechanical Life	40000Cycles
Contact AC Voltage	112V ac
Actuator Material	Chrome Plated Brass

Key Features

This switch supports a contact current of 5A for reliable circuit control.
It features through hole terminals suitable for PCB mounting ensuring secure installation.
The toggle actuator is made of chrome-plated brass for durability.
The panel cutout size is 6.35 mm which fits compact installations.
It operates safely with a DC voltage rating of 26 V and an AC voltage rating of 112 V.
The switch has a mechanical life of 40,000 cycles, providing long-lasting performance.
Suitable for operating temperatures from -30°C to 85°C, ensuring robustness in varied environments.
Meets RoHS, UL, CE, and CSA standards for safety and environmental compliance.

Product Description

RS PRO 734-7072 is a compact miniature toggle switch designed for PCB mounting with a reliable On-On SPDT (Single Pole Double Throw) contact configuration. It supports a contact current of 5A, suitable for controlling AC and DC circuits in electrical, automation, and manufacturing applications. The switch features through hole terminal type which ensures a firm connection to the printed circuit board.

The actuator of this toggle switch is constructed from chrome plated brass, ensuring durability and enhanced mechanical strength with a length of 10.41 mm, making it ideal for compact panel cutouts sized at 6.35 mm. It supports a contact voltage rating of 26 V dc and 112 V ac, accommodating a variety of low voltage device uses.

Designed to operate over a wide temperature range from -30°C to 85°C, this switch ensures reliable performance in challenging industrial environments. The mechanical life of the switch is rated at 40,000 cycles, indicating long-term operational reliability and reduced maintenance needs.

Compliant with RoHS, UL, CE, and CSA standards, it guarantees safety and environmental considerations are met. Manufactured in China, this RS series toggle switch is part of a trusted line of miniature PCB mount switches featuring low contact resistance and high insulation resistance values.

This toggle switch allows reliable circuit control and switching for industrial and automation systems. Installed through-hole terminals provide durable PCB fixation and easy soldering. The chrome-plated brass actuator ensures longevity and smooth operation.

Compact panel cutout fitting enables seamless integration in control panels. Voltage ratings support diverse electrical equipment requirements. Wide operating temperature range makes it suitable for diverse industrial environments.

High mechanical life ensures fewer replacements and lower downtime. Compliance with international standards assures product safety and quality.

This product is ideal for industrial automation, manufacturing equipment, and electronic circuit switching tasks. Explore more RS PRO Toggle Switches and electrical components at EnvMart for your project needs.
