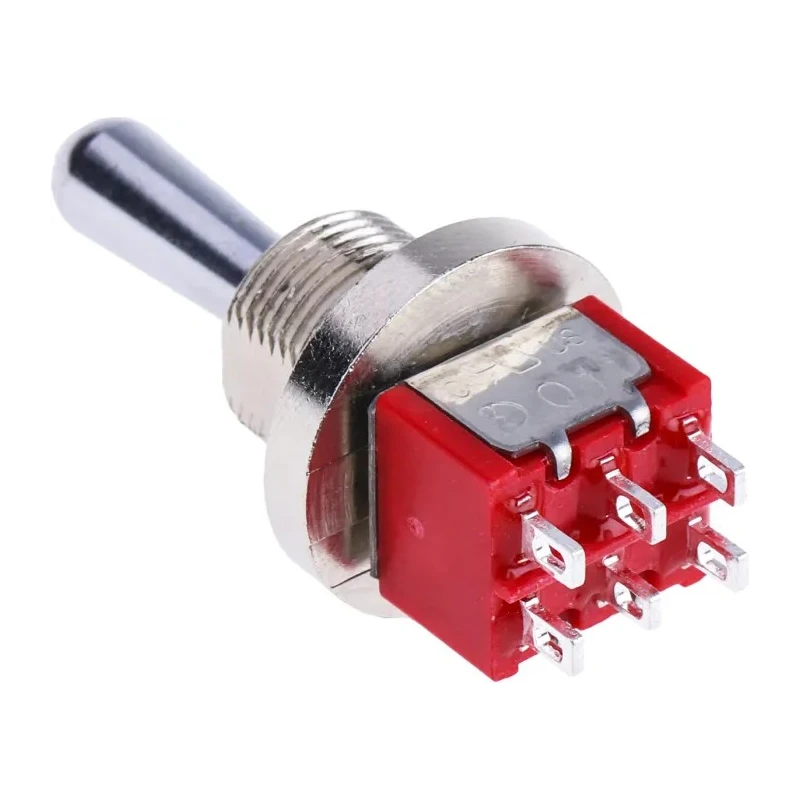

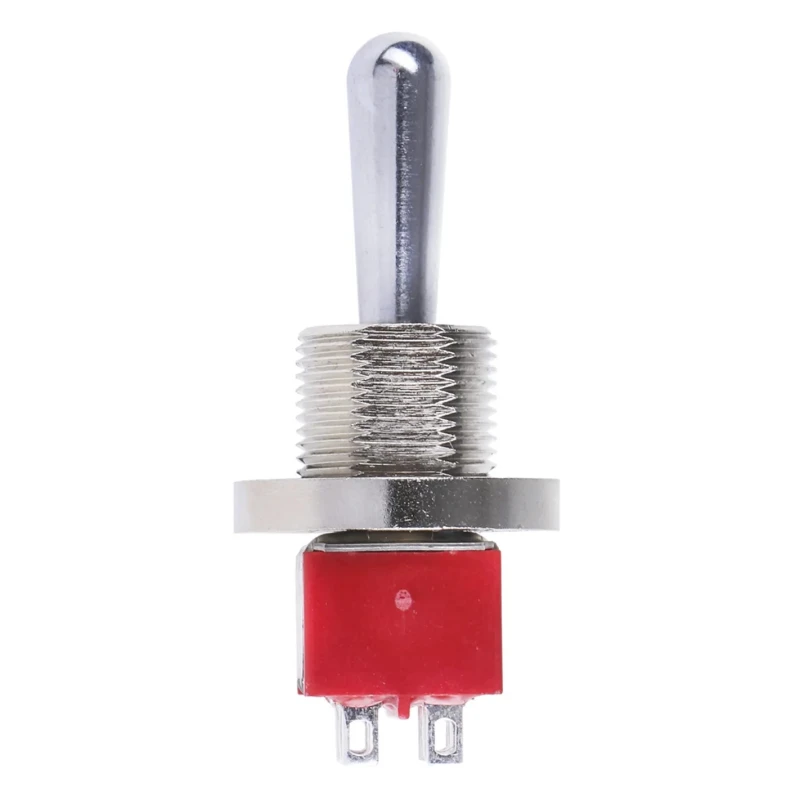

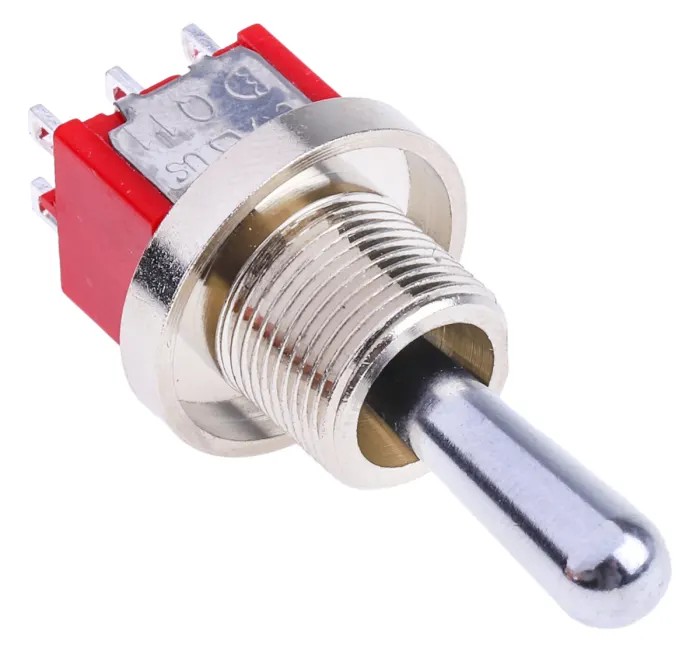

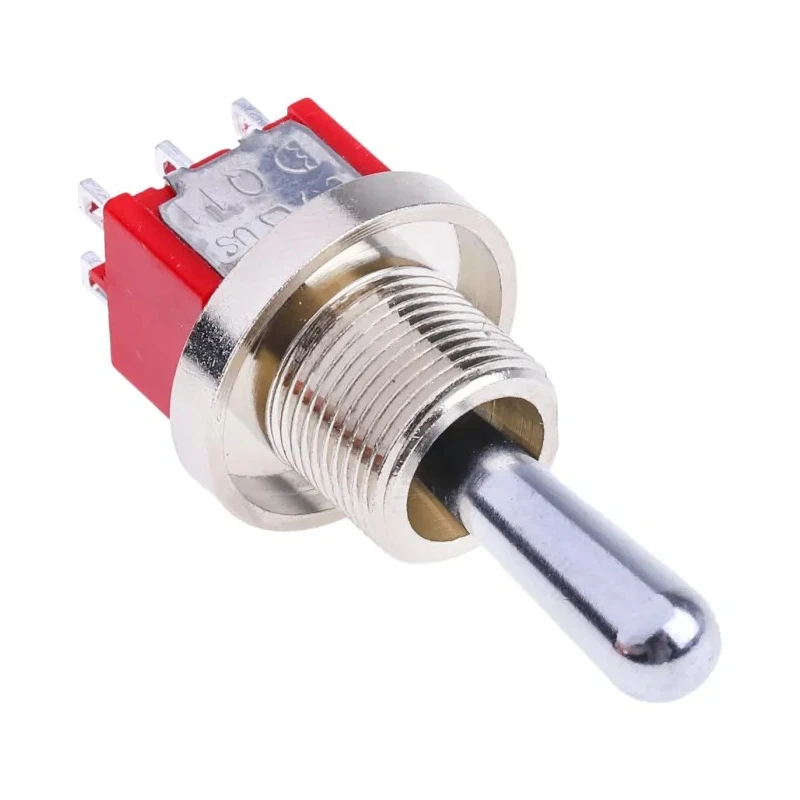

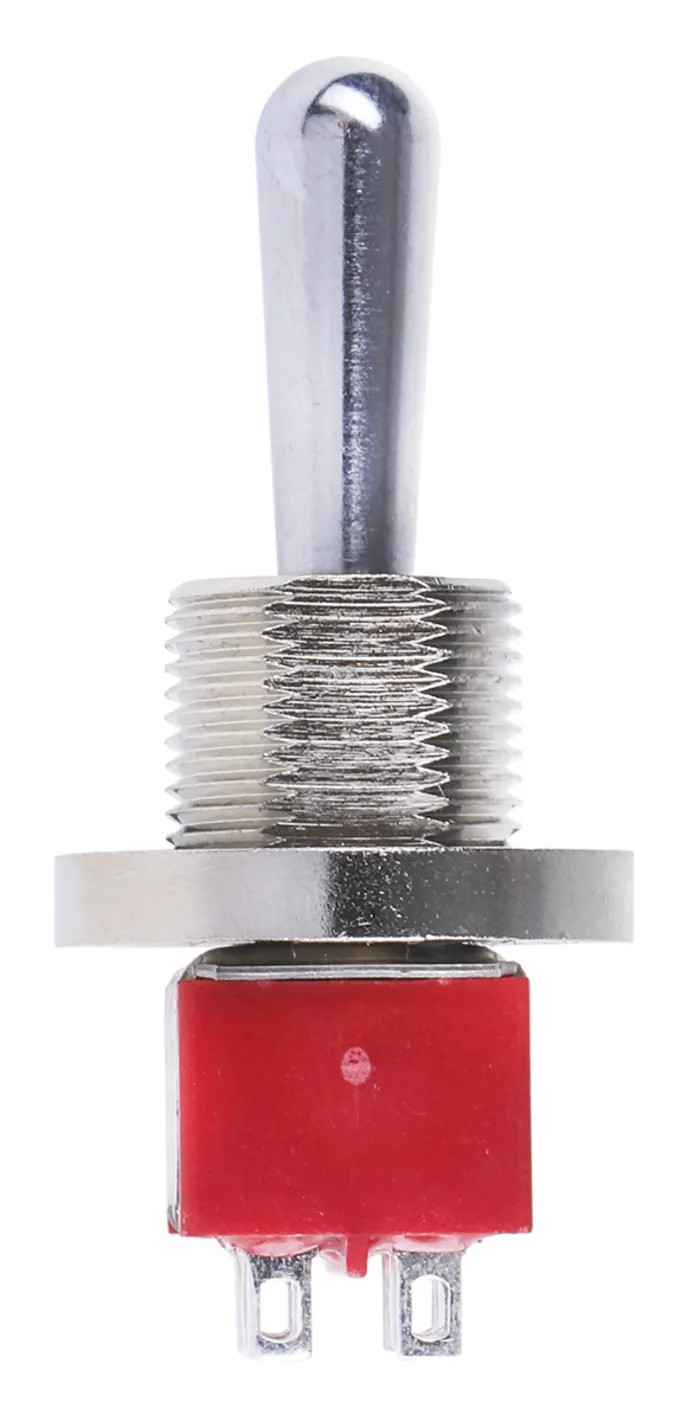

RS PRO Toggle Switch, Panel Mount, Momentary-Off-Momentary, DPDT, Solder Terminal, 26 V DC, 120 V AC 394-447
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 394-447 |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | 3PDT, DPDT, SPDT, 4PDT |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 11.91 mm |
| Terminal type | Solder |
| Standards/Approvals | CE, UL, CSA, RoHS |
| Switch Operation | Momentary-Off-Momentary |
| Actuator Length | 17.56mm |
| Contact DC Voltage | 26V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 40000Operations |
| Contact AC Voltage | 120V ac |
| Actuator Material | Chrome Plated Brass |
| 2P mom-off-mom large lever toggle switchBrand | C & K |
Key Features
- The toggle switch features a 5 A contact current rating at 26 V DC and 120 V AC.
- Constructed with a chromium-plated brass actuator that is 17.56 mm long for durability.
- Incorporates silver contact material ensuring reliable conductivity and low contact resistance of 10 mΩ.
- Provides a panel cutout size of 11.91 mm for easy mounting.
- Operates within a temperature range from -30ºC to +85ºC, making it suitable for various environments.
- Designed to perform up to 40,000 mechanical operations, ensuring long product life.
- Features a solder terminal type for secure and reliable electrical connections.
- Includes a protective casing made from flame-retardant diallyl phthalate (DAP) for safety.
Product Description
RS PRO 394-447 Toggle Switch is a high-quality panel mount, Momentary-Off-Momentary DPDT toggle switch designed for reliable electrical circuit control in industrial, automation, and electronics applications. It supports switching currents of 5 A at 26 V DC and 120 V AC, suitable for controlling medium-power circuits safely.
The actuator is made of chromium-plated brass, measuring 17.56 mm in length, providing durability and smooth operation. Silver contacts offer excellent conductivity with a low contact resistance of 10 mΩ, enhancing the switch's performance reliability. The switch's body includes flame-retardant diallyl phthalate (DAP) material for electrical safety and protection under demanding conditions.
The switch mounts easily into panels with a cutout size of 11.91 mm, providing a secure fit for installation. Its operating temperature range from -30°C to +85°C allows for use in diverse operational environments. Designed for longevity, the switch withstands up to 40,000 mechanical operations, making it ideal for frequent switching tasks in manufacturing, testing, and industrial control systems.
Solder terminals enhance connection security and reliability on circuit boards or wiring harnesses. This RS PRO switch conforms to international safety and environmental standards including CE, UL, CSA, and RoHS, ensuring regulatory compliance and product quality.
The toggle switch features a 5 A contact current rating at 26 V DC and 120 V AC. Chromium-plated brass actuator material offers durability. Silver contacts provide reliable conductivity with low resistance. Panel cutout size of 11.91 mm for secure installation.
Operating temperature range from -30°C to +85°C suits various applications. Mechanical life of 40,000 operations guarantees durability. Solder terminal type ensures secure electrical connections. Flame-retardant diallyl phthalate casing improves safety.
Certified to CE, UL, CSA, and RoHS standards.
This Toggle Switch is widely used in electronics manufacturing, laboratory instrumentation, automation controls, and commercial electrical panels that require a dependable ON-OFF switching device. The panel mounting design simplifies integration into existing systems and control fixtures.
Explore the range of RS PRO switches on EnvMart for your industrial and commercial electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch has a contact current rating of 5 A at 26 V DC and 120 V AC.
It operates within a temperature range from -30°C to +85°C, making it suitable for various environments.
The required panel cutout size for installation is 11.91 mm.
This switch features solder terminals for secure and reliable electrical connections.
It is designed to withstand up to 40,000 mechanical operations, ensuring longevity.
The actuator is made of chromium-plated brass, which provides durability.
It conforms to international safety and environmental standards including CE, UL, CSA, and RoHS.
The switch has a low contact resistance of 10 mΩ, ensuring reliable conductivity.
The switch configuration is DPDT (Double Pole Double Throw), and it can also be configured as 3PDT, SPDT, or 4PDT.
The actuator length is 17.56 mm.
This toggle switch is suitable for use in electronics manufacturing, laboratory instrumentation, automation controls, and commercial electrical panels.
The maximum operating temperature for this switch is 85°C.
