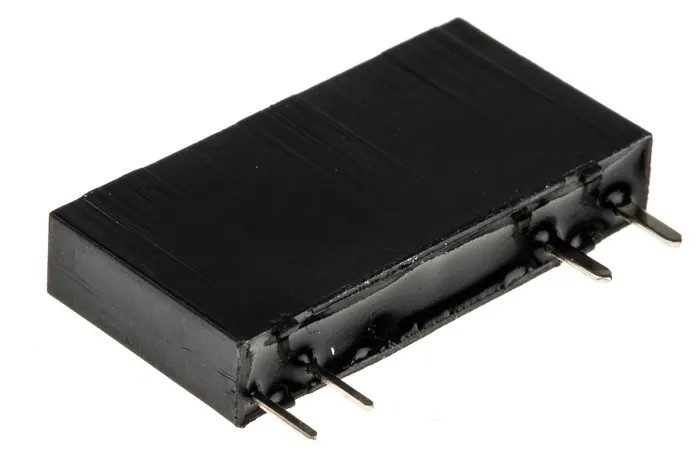

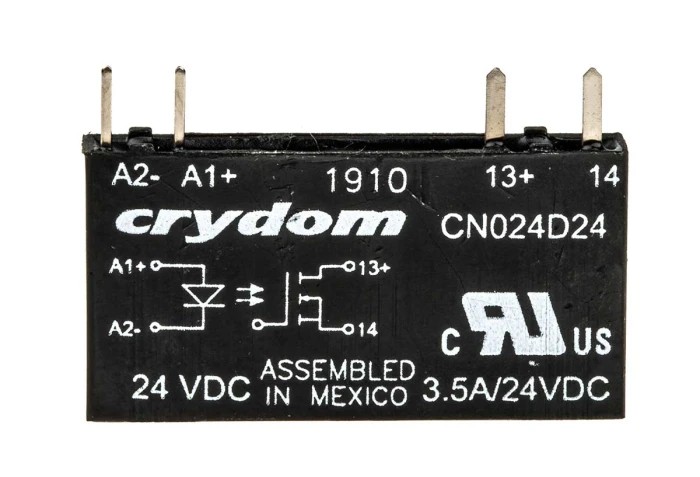

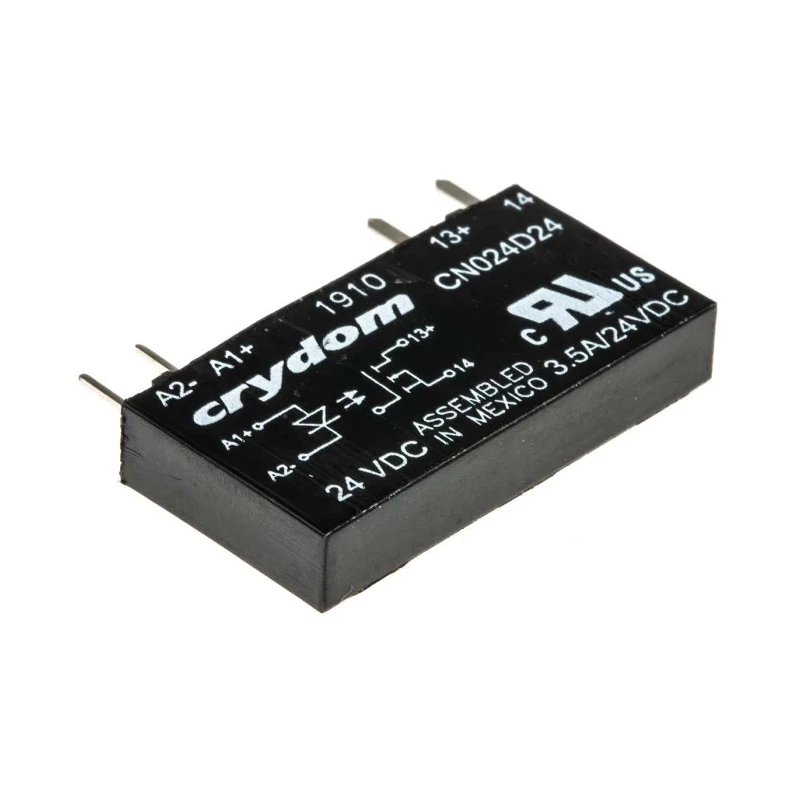

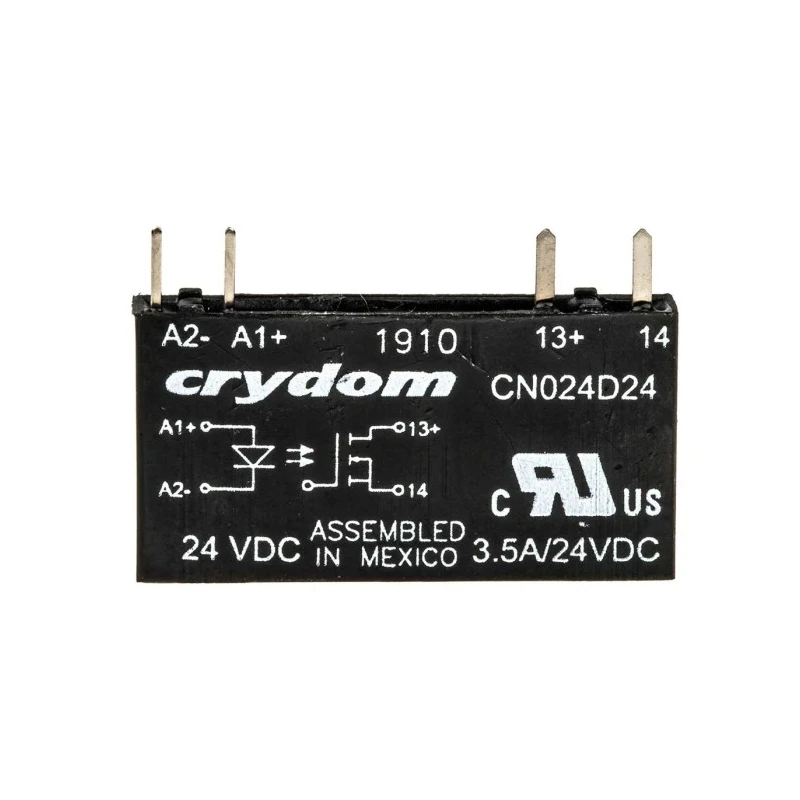

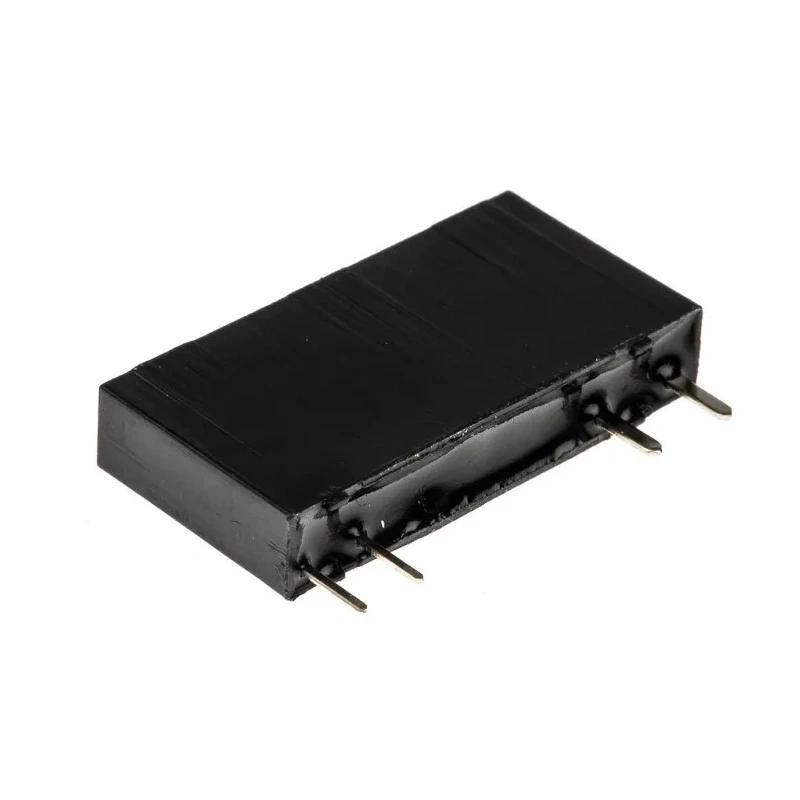

Crydom Solid State Relay PCB Mount 3.5 A Load 24 V DC Load 30 V DC Control CN024D24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 15mm |
| Length | 28mm |
| Model | CN024D24 |
| IP Rating | IP67 |
| Width | 5mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | CN |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Package Type | Mini SIP-4 |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -20°C |
| Terminal type | Through Hole |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 3.5A |
| Standards/Approvals | UL, CE, cUL, RoHS |
| Maximum Load Voltage | 24V dc |
| Minimum Load Voltage | 0V dc |
| Minimum Control Voltage | 15V dc |
| Maximum Control Voltage | 30V dc |
| Off State Leakage Current | 0.001mA |
Key Features
- Supports maximum load current of 3.5 A for moderate power switching needs.
- PCB mount type with through-hole terminals ensures secure and stable installation.
- Operational load voltage range from 0 to 24 V DC suitable for low-voltage circuits.
- Control voltage range from 15 V DC minimum to 30 V DC maximum for precise switching control.
- High IP67 rating offers dust protection and can withstand immersion in water up to 1 meter for 30 minutes.
- Zero cross switching function reduces electrical noise and prolongs relay life.
- Compact Mini SIP-4 package with dimensions 28 mm length, 15 mm height, and 5 mm width saves PCB space.
- Operating temperature range from -20°C to 80°C supports use in varied industrial environments.
Product Description
The Crydom CN024D24 Solid State Relay is a reliable PCB mount electronic switching device engineered for precise control of DC loads up to 3.5 amperes. This relay converts input signals into optical signals that actuate an internal photosensitive transistor, enabling robust and wear-free switching with no mechanical parts.
Designed with a Mini SIP-4 package, the relay has compact physical dimensions (28 mm length, 15 mm height, 5 mm width), ideal for tight spaces in industrial and automation control panels. Its through-hole terminal mounting ensures secure soldered connections on printed circuit boards.
With a maximum load voltage of 24 V DC and a control voltage range of 15 to 30 V DC, this relay efficiently handles low-voltage electrical loads in environments requiring minimal electromagnetic interference thanks to its zero cross switching function. The relay's MOSFET output guarantees fast and reliable load switching.
Rated for operation in temperature ranges from -20°C to 80°C, the CN024D24 is suitable for industrial applications including packaging machines, medical equipment, and process automation that demand durable, maintenance-free relays.
The device features an IP67 ingress protection rating, providing dust-tight sealing and protection against temporary water immersion, making it suitable for harsh or wet environments. Off-state leakage current is minimized to 0.001 mA, enhancing energy efficiency in control circuits.
Maximum load current: 3.5 A. Mount type: PCB with through-hole terminals. Load voltage range: 0 to 24 V DC. Control voltage range: 15 to 30 V DC. Zero cross switching function for reduced noise and contact stress. Mini SIP-4 compact package.
Operating temperature: -20°C to 80°C. IP67 rated for dust and water protection. Low off-state leakage current of 0.001 mA. MOSFET output type for rapid switching.
This Crydom solid state relay fits demanding industrial, laboratory, and commercial automation needs where reliable and maintenance-free switching is critical. It is recommended for use in electrical control panels, industrial machinery, medical devices, and packaging systems.
Explore additional Crydom Solid State Relays and automation control products on EnvMart for comprehensive electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 3.5 A, suitable for moderate power switching needs.
It supports a load voltage range from 0 to 24 V DC, making it suitable for low-voltage circuits.
The control voltage range for this relay is from 15 V DC to 30 V DC, allowing for precise switching control.
This model has dimensions of 28 mm in length, 15 mm in height, and 5 mm in width, designed for compact installations.
It features a PCB mount type with through-hole terminals, ensuring secure and stable installation.
The relay has an IP67 rating, providing dust protection and the ability to withstand immersion in water up to 1 meter for 30 minutes.
The operating temperature range is from -20°C to 80°C, suitable for varied industrial environments.
This model uses a MOSFET output type, which guarantees fast and reliable load switching.
It features a zero cross switching function, which reduces electrical noise and prolongs the relay's life.
The off-state leakage current is minimized to 0.001 mA, enhancing energy efficiency in control circuits.
This solid state relay complies with UL, CE, cUL, and RoHS standards, ensuring it meets various regulatory requirements.
It is suitable for applications in industrial machinery, medical devices, packaging systems, and process automation.
