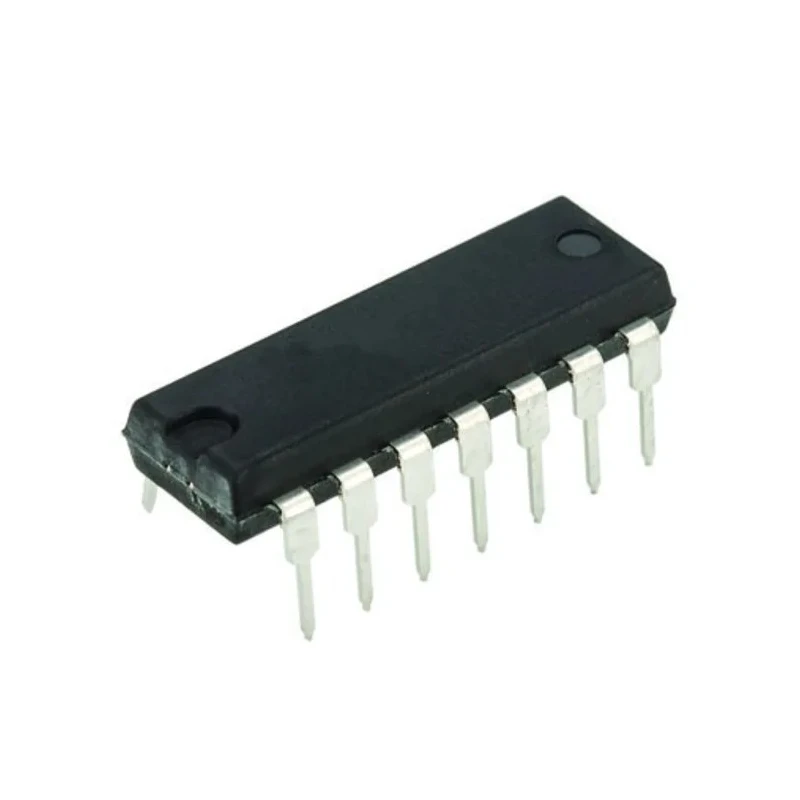

Texas Instruments Operational Amplifier 3 MHz 14-Pin 15V PDIP TL074BCN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TL074BCN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL074 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 7 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 2 nA |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
Key Features
- Features a JFET input with low input bias current of 7 nA.
- Operates over a wide supply voltage range from 5V to 15V.
- Provides a high slew rate of 13 V/μs for fast signal processing.
- Includes four operational amplifier channels in a single package.
- Compact dimensions with length 19.3 mm, width 6.35 mm, and height 4.57 mm.
- Low input offset voltage of 5 mV and input offset current of 2 nA.
- Designed for reliable operation between 0°C and 70°C.
- Ideal for audio, signal processing, and industrial control applications.
Product Description
Texas Instruments TL074BCN is a high-performance operational amplifier featuring a 3 MHz gain bandwidth product packaged in a 14-pin PDIP suitable for through-hole mounting. This JFET-input device provides exceptional low noise, low distortion, and high slew rate making it ideal for demanding analog signal processing applications.
Operating within supply voltages of 5V to 15V, the TL074BCN offers low input bias currents (7 nA) and low offset voltage (5 mV) enabling precision analog circuits including audio processing, instrumentation, and industrial control. The quad channel configuration integrates four independent op amps, maximizing space efficiency on PCB layouts.
The device dimensions are compact measuring 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, fitting standard PCB footprints with through-hole PDIP packages. It reliably operates over a temperature range from 0°C to 70°C.
JFET input for low input bias current and noise. Wide supply voltage from 5V to 15V for versatile applications. High slew rate of 13 V/μs for rapid signal transitions. Four separate operational amplifier channels in one package.
Low total harmonic distortion of 0.003% for superior signal fidelity. Low input offset current of 2 nA improves accuracy. Compact 14-pin PDIP package standard for through-hole mounting.
This operational amplifier is extensively used in industrial, laboratory, audio, and electronic manufacturing environments requiring reliable, low-noise amplification. It is a member of the TL074 series known for precision and durability.
Explore more Operational Amplifiers and related electronic components at EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL074BCN has a gain bandwidth product of 3 MHz, making it suitable for various analog signal processing applications.
It operates within a supply voltage range of 5V to 15V, allowing for versatile application across different circuits.
This model includes four independent operational amplifier channels in a single package, enhancing space efficiency on PCB layouts.
The maximum operating temperature for this operational amplifier is 70°C, ensuring reliable performance in various environments.
The dimensions of this model are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, fitting standard PCB footprints.
The input offset voltage for this operational amplifier is 5 mV, contributing to its precision in analog circuits.
This operational amplifier features a high slew rate of 13 V/μs, which is advantageous for rapid signal transitions.
The TL074BCN is packaged in a 14-pin PDIP format, suitable for through-hole mounting on PCBs.
The input bias current is 7 nA, which helps minimize noise and improve the accuracy of the amplifier.
This model exhibits a low total harmonic distortion of 0.003% typical, ensuring superior signal fidelity in applications.
The minimum operating temperature for this operational amplifier is 0°C, allowing it to function in a range of environmental conditions.
It is designed for applications in audio processing, instrumentation, and industrial control, making it versatile for various uses.
