Omron PCB Signal Relay 3V DC Coil 1A DPDT Through Hole G6KU-2P-Y DC3

Omron G6KU-2P-Y DC3 PCB signal relay is designed for precise signal switching with a 3V DC coil and a DPDT (Double Pole Double Throw) contact configuration. This relay features low power consumption of 100mW and fully sealed construction, making it ideal for use in industrial, automation, and electrical control systems.

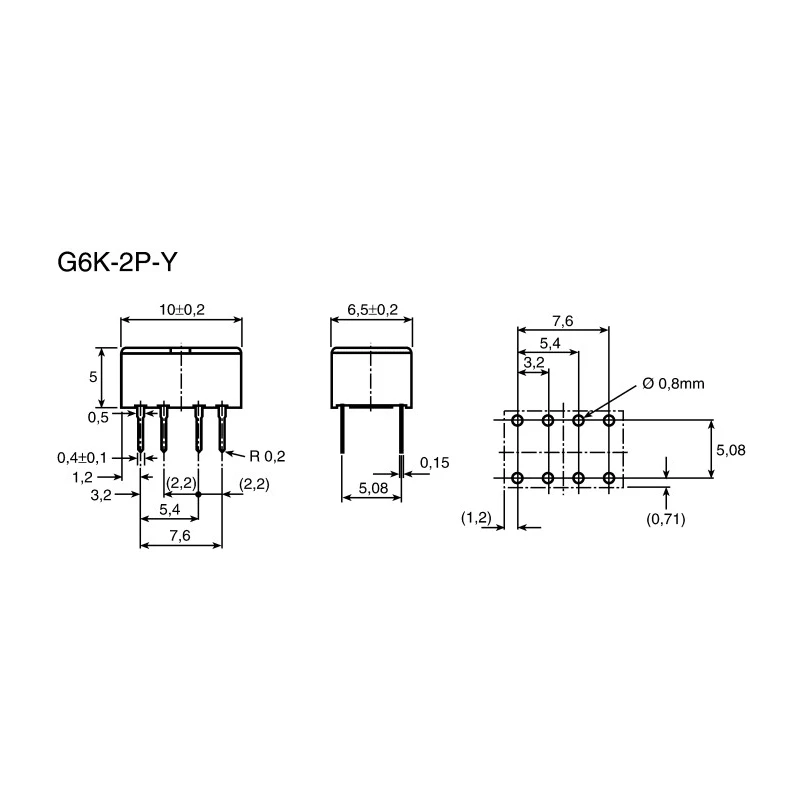

The compact sub-miniature package (5mm height, 6.5mm width, 10mm length) allows easy integration onto printed circuit boards using through hole mounting techniques. It is capable of switching currents up to 1A and supports AC voltages up to 125V and DC voltages up to 60V. The contact resistance is low at 100mΩ, with gold plated contacts enhancing reliability and signal integrity.

The relay functions efficiently across a temperature range from -40°C to 70°C, suitable for harsh environments. It complies with RoHS environmental directives and meets Bellcore surge tolerances of 2500V for transient voltage protection, ensuring robust performance.

Fully sealed construction for reliable operation in industrial environments. Low coil power consumption of approximately 100mW enhances energy efficiency. Compact sub-miniature size of H5.0 x W6.5 x L10mm suitable for PCB mounting.

Suitable for switching AC voltage up to 125V AC and DC voltage up to 60V DC. Operating temperature range from -40°C to 70°C ensures versatile usage. Contact material is gold plated for improved conductivity and durability.

Through hole terminal type enables secure PCB installation. Conforms to RoHS environmental standards and Bellcore surge specifications.

This relay is widely used in industrial automation, electrical control, telecommunications, and manufacturing systems that require reliable switching of control signals. It is well-suited for PCB integration where space optimization and low power consumption are critical.
