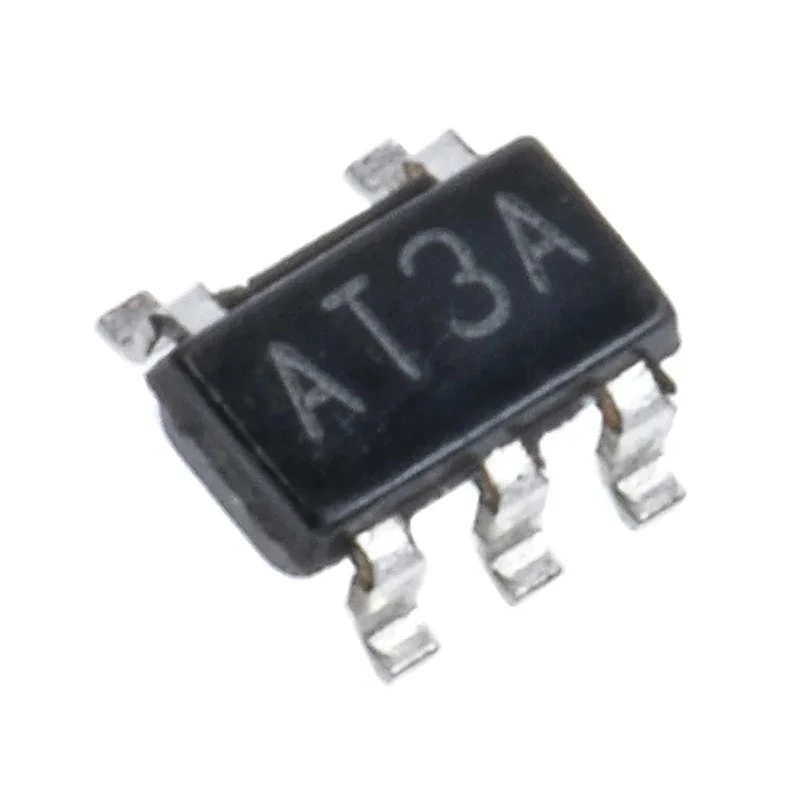

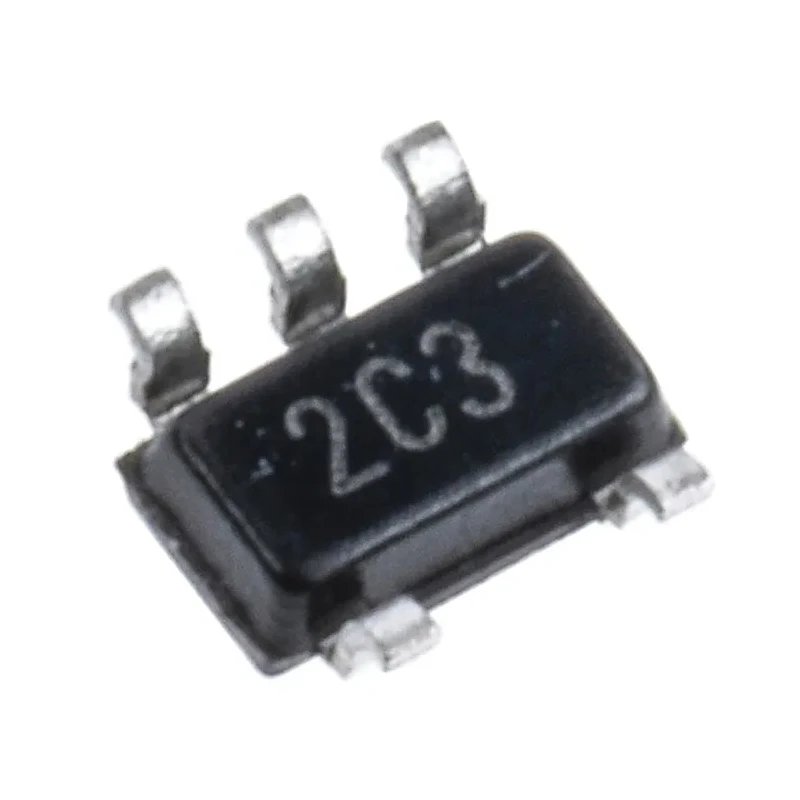

Texas Instruments Operational Amplifier 17 MHz 5-Pin SOT-23 5.5V LMV796MF/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.02mm |
| Length | 2.92mm |
| Model | LMV796MF/NOPB |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | LMV796 |
| Output Current | 47mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 17MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 1.35 mV |
| Slew Rate | 11.5V/μs |
| Input Offset Current | 10 fA |
Key Features
- Operates with a minimum supply voltage of 5V and maximum of 5.5V.
- Designed for low input bias current of 1 pA for precision applications.
- Compact surface mount SOT-23 package with small dimensions fits space-constrained designs.
- Wide operating temperature range from -40°C to 125°C supports harsh environments.
- High slew rate of 11.5 V/μs enables fast signal processing.
- Low input offset voltage of 1.35 mV ensures accurate amplification.
- Output current capability of 47 mA suits various output drive requirements.
- Compliant with RoHS and automotive AEC-Q100 standards ensuring quality and reliability.
Product Description
Texas Instruments LMV796MF/NOPB is a high-performance operational amplifier characterized by a gain bandwidth product of 17 MHz and housed in a compact 5-pin SOT-23 surface mount package. It operates within a supply voltage range of 5V to 5.5V, making it suitable for low voltage applications requiring efficient power consumption.
This device exhibits exceptionally low input bias current of 1 pA and an input offset voltage of 1.35 mV, facilitating precision signal amplification in sensitive electronic circuits. The high slew rate of 11.5 V/μs allows for rapid response to signal changes, making it ideal for high-frequency amplification needs.
Engineered with automotive standard AEC-Q100 compliance and RoHS certification, the LMV796MF/NOPB ensures robust performance and environmental compliance in automotive and industrial environments. Its operating temperature spans from -40°C to 125°C, suitable for extreme operating conditions.
The package dimensions, measuring 2.92 mm in length, 1.6 mm in width, and 1.02 mm in height, enable compact PCB layouts. With an output current of 47 mA, it supports driving a variety of external components effectively.
Operates on a low voltage supply from 5V to 5.5V for energy-efficient applications. High bandwidth of 17 MHz enables amplification of high-frequency signals. Low input bias current and offset voltage enhance precision in amplification.
Small SOT-23 package supports compact circuit design. Wide operating temperature range for reliable performance in harsh conditions. Automotive AEC-Q100 compliant for automotive and industrial use. RoHS certified ensuring environmental compliance.
This operational amplifier is well suited for use in industrial instrumentation, automotive sensor systems, consumer electronics, and other applications requiring reliable linear amplification. Its small size and electrical characteristics make it adaptable for a wide range of circuit designs. Explore our range of Operational Amplifiers to find the most suitable components for your design requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 17 MHz, enabling it to amplify high-frequency signals effectively.
It operates within a supply voltage range of 5V to 5.5V, making it suitable for low voltage applications.
The maximum operating temperature for this model is 125°C, allowing it to function in high-temperature environments.
It has an output current capability of 47 mA, which supports various output drive requirements.
This operational amplifier features a low input bias current of 1 pA, which is beneficial for precision applications.
The SOT-23 package dimensions are 2.92 mm in length, 1.6 mm in width, and 1.02 mm in height, making it compact for space-constrained designs.
The LMV796MF/NOPB has a high slew rate of 11.5 V/μs, which allows for rapid response to signal changes.
It has an input offset voltage of 1.35 mV, ensuring accurate amplification in sensitive circuits.
It is compliant with RoHS and automotive AEC-Q100 standards, ensuring quality and reliability in automotive and industrial applications.
The minimum operating temperature for the LMV796MF/NOPB is -40°C, suitable for harsh environments.
This operational amplifier has a single channel, making it suitable for various amplification tasks.
It utilizes a surface mount type, specifically designed for compact PCB layouts.
