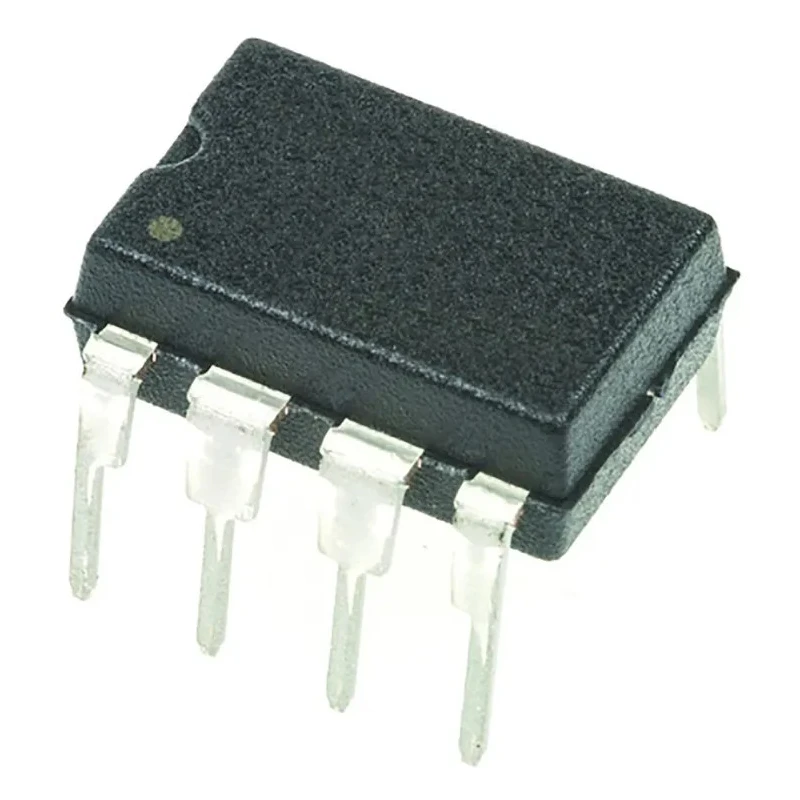

Texas Instruments Operational Amplifier 5 MHz 8-Pin 18V MDIP LF356N/NOPB

Texas Instruments LF356N/NOPB operational amplifier is a high-performance JFET input op amp featuring a gain bandwidth product of 5 MHz and configured for through-hole mounting in an 8-pin MDIP package. It is designed for electronic professionals and engineers needing reliable linear amplification in various analog circuits.

This device operates within a supply voltage range of -18V to +18V, providing flexibility for diverse design requirements. Its low input offset voltage of 13 mV combined with minimal input bias currents (8 nA) and offset current (2 nA) ensures precision amplification and reduced signal distortion. The slew rate of 12 V/μs enables the amplifier to respond quickly to rapid input signal changes, important for high-speed applications.

Compact dimensions of 9.27 mm length, 6.35 mm width, and height of 3.3 mm facilitate easy integration onto printed circuit boards. The device operates reliably across a temperature range of 0°C to 70°C, making it suitable for typical industrial and commercial environments.

This operational amplifier is widely applicable in instrumentation, audio equipment, signal conditioning, and various industrial and laboratory electronic devices where high input impedance and low noise are critical.

Manufactured in Malaysia, this product meets industry standards and is categorized within Texas Instruments' LFx5x series, known for durable and precise operational amplifiers. High gain bandwidth product of 5 MHz ensures wide frequency response.

JFET input operational amplifier design for low input bias and offset currents. Single channel with 8 pins in a compact MDIP package. Wide supply voltage range from -18V to 18V supports various applications. Slew rate of 12 V/μs for fast response.

Operating temperature range from 0°C to 70°C suitable for standard conditions. Low input offset voltage of 13 mV and input bias currents 8 nA and offset current 2 nA. Dimensions of 9.27 mm length, 6.35 mm width, and 3.3 mm height for PCB mounting.

Manufactured in Malaysia ensuring quality production standards. Ideal for use in electronic circuit designs including audio, instrumentation, and signal processing. Explore more Texas Instruments components and Operational Amplifiers on EnvMart for your electronic design and manufacturing needs.
