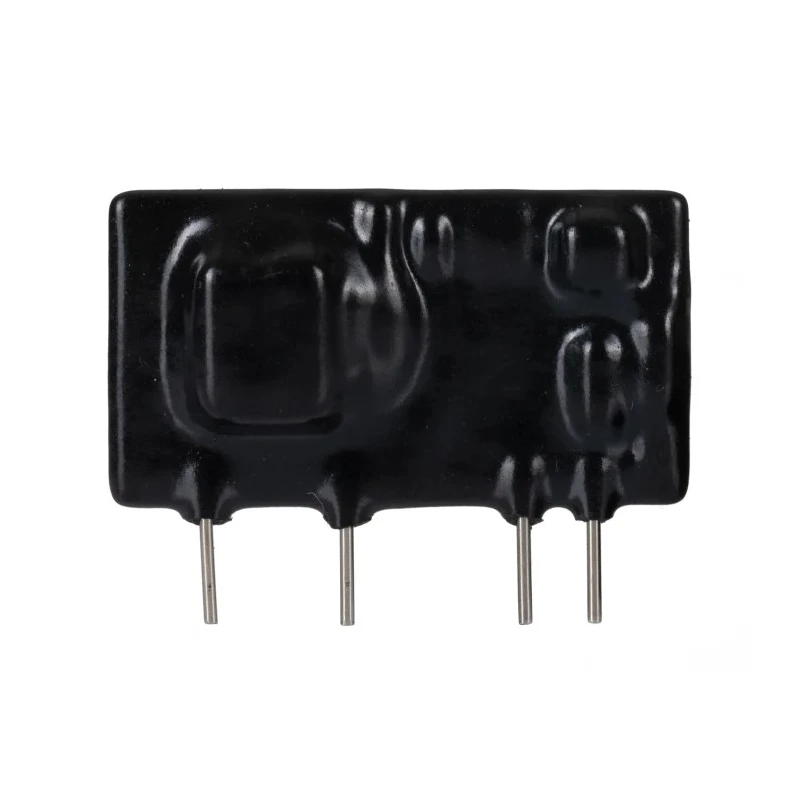

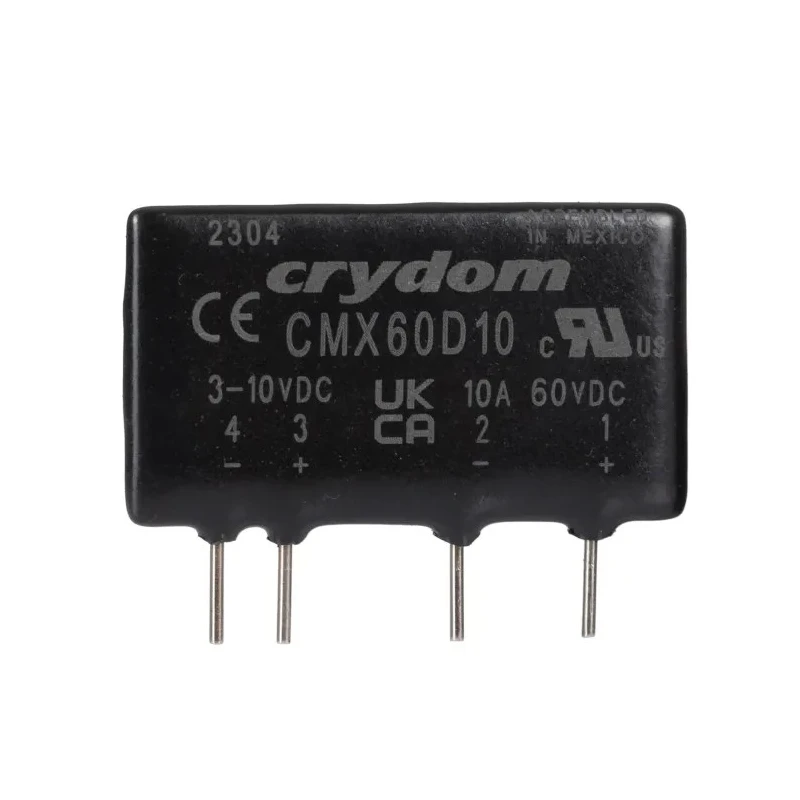

Crydom CMX Series Solid State Relay 10 A Load, PCB Mount, 60 V DC Load, 10 V DC Control CMX60D10

Crydom CMX60D10 Solid State Relay is a high-performance electronic switching device designed by Crydom, suitable for PCB mounting and capable of handling a maximum load current of 10 amperes and a load voltage of up to 60 volts DC. It offers a control voltage input between 3 and 10 volts DC enabling precise control in various industrial and automation systems.

The device is encapsulated within a thermally conductive epoxy package that promotes efficient heat dissipation, making it reliable in demanding operating environments. It has a compact form factor with a length of 43.1 mm and height of 25.4 mm, optimized for PCB integration.

This solid state relay incorporates a zero cross switching function that minimizes electrical noise and enhances the longevity of connected components. Operating temperature ranges from -30°C up to 80°C making it suitable for harsh industrial, automation, and control applications.

The CMX60D10 supports very low off-state leakage current of 0.1 mA and features an on-state resistance of 1,000,000,000 ohms, using a MOSFET output stage for efficient switching. Its capacitance is 15 pF, contributing to its stable operation under dynamic conditions.

This relay complies with EN 60950-1 safety standards, ensuring product quality and operational safety in electronic circuit designs often found in robotics, data acquisition systems, control panels, and industrial automation.

Supports maximum load current of 10 amperes for robust circuit operation. Enables PCB mounting with built-in PCB pins for quick installation. Operates with a load voltage range from 0 to 60 volts DC suitable for low- and high-power equipment.

Features a control voltage range of 3 to 10 volts DC for precise activation. Encapsulated in thermally conductive epoxy for effective heat dissipation. Wide operating temperature range between -30°C and 80°C ideal for harsh environments.

Employs zero cross switching function for noise reduction. Rapid switching times with turn-on in 1 ms and turn-off in 300 μs. Output type is MOSFET for reliable and efficient circuit control. Complies with EN 60950-1 standards ensuring safety and quality.

This Crydom Solid State Relay is a reliable choice for industrial, automation, control systems, and HVAC applications requiring durable and efficient electronic switching solutions. Suitable for engineers and designers seeking high quality PCB mount relays with excellent thermal performance.
