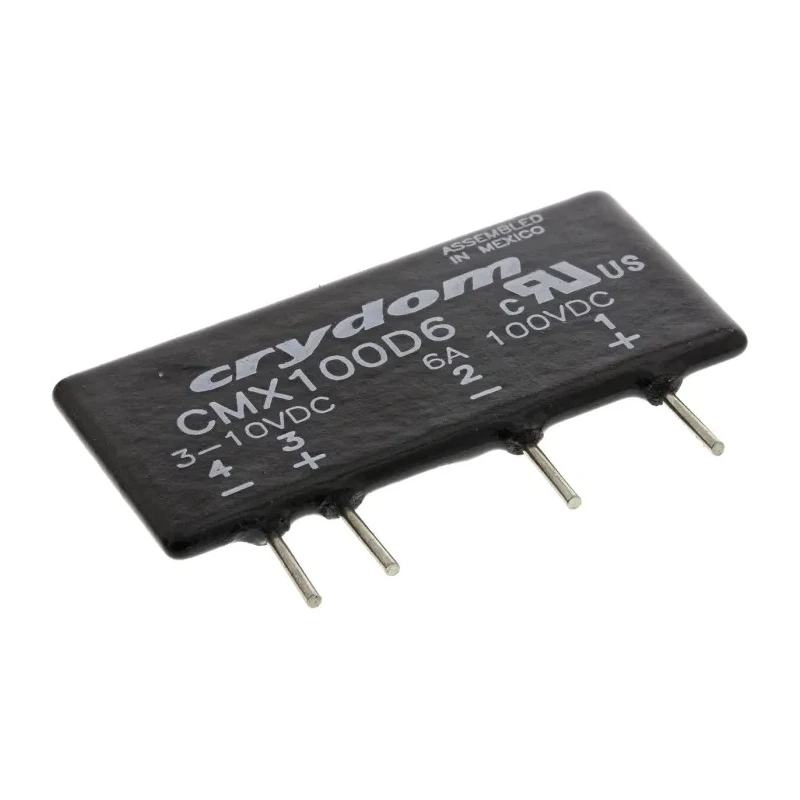

Crydom CMOS Series Solid State Relay 6 A Load PCB Mount 100 V Load 10V DC Control CMX100D6
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 25.4mm |
| Operating Temperature Range | -30 to +80°C |
| Length | 43.1mm |
| Model | CMX100D6 |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | CMX |
| Maximum Operating Temperature | 80°C |
| Capacitance | 15pF |
| Minimum Operating Temperature | -30°C |
| Switching Function | DC load |
| Maximum Load Current | 6A |
| Standards/Approvals | UL E116950, EN60950, CE |
| Maximum Load Voltage | 100V |
| Minimum Load Voltage | 0V dc |
| Minimum Control Voltage | 1V |
| Maximum Control Voltage | 10V dc |
| Off State Leakage Current | 100μA |
| On State Resistance | 1000000000Ω |
| Surge current peak | 100A |
| Input-Output capacitance | 15pF |
Key Features
- This solid state relay uses MOSFET output technology for efficient DC load switching.
- It has an ultra-low on-state resistance to minimize power loss.
- PCB mount type with an industry standard footprint for easy integration.
- Wide operating temperature range from -30°C to 80°C ensures durability in harsh environments.
- Capacitance is 15pF, contributing to low noise switching.
- Off-state leakage current is low at 100μA improving power efficiency.
- Suitable for controlling solenoid valves and DC lighting in industrial automation systems.
- Surge current peak rating of 100A handles transient overloads effectively.
Product Description
Crydom CMX100D6 solid state relay provides efficient switching for DC loads up to 6A and 100 V load voltage with a 10V DC control input. This MOSFET output relay is designed for PCB mounting with an industry standard SIP style footprint.
It is ideal for industrial automation and control applications including solenoid valves, DC coil contactors, and DC lighting control systems. The relay ensures low on-state resistance to reduce power loss and includes a low off-state leakage current for power efficiency.
Operating in a temperature range from -30°C to 80°C, it is suited for a variety of environments with surge current handling capability up to 100A peak. The input-output capacitance of 15pF helps ensure minimal noise during operation.
Physical dimensions are compact with 25.4mm height and 43.1mm length, making it easy to incorporate into printed circuit boards. Certified to meet safety and performance standards UL E116950, EN60950, and CE, it complies with industry requirements.
This solid state relay operates with DC load switching using MOSFET output technology. It features a PCB mount type design with an industry standard footprint. Designed for an input control voltage range from 1V to 10V DC.
Surge current peak rating allows handling of short high current surges up to 100A. The relay supports an operating temperature range from -30°C to 80°C for reliable use. Off-state leakage current is minimal at 100μA ensuring energy efficiency.
Low input-output capacitance of 15pF reduces interference and noise. Typical applications include industrial automation, water treatment, HVAC controls, manufacturing, and commercial electrical equipment control. Compact size and PCB mount compatibility makes installation straightforward for electronics assembly.
Product is manufactured in Mexico and conforms to international safety standards. Explore our extensive range of Solid State Relays at EnvMart for various industrial and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 6A.
It operates within a temperature range from -30°C to 80°C.
This model requires a control voltage between 1V and 10V DC.
The maximum load voltage for this relay is 100V.
The surge current peak rating is 100A, allowing it to handle short high current surges effectively.
The input-output capacitance is 15pF, which helps minimize noise during operation.
This relay has a height of 25.4mm and a length of 43.1mm.
It supports PCB mounting with an industry standard SIP style footprint for easy integration.
It is certified to meet UL E116950, EN60950, and CE safety and performance standards.
The off-state leakage current is low at 100μA, which improves power efficiency.
It is suitable for controlling solenoid valves, DC coil contactors, and DC lighting in industrial automation systems.
This relay uses MOSFET output technology for efficient DC load switching.
