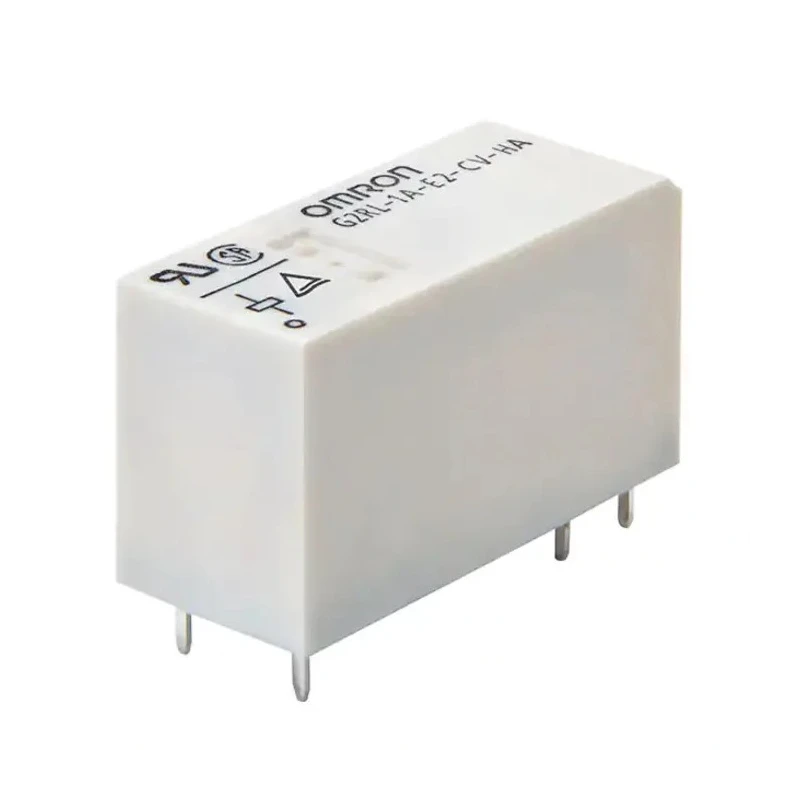

Omron Power Relay SPST PCB Mount 12V DC Coil 23A Switching Current G2RL-1A-E2-CV-HA DC12
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 16.7mm |
| Length | 50mm |
| Model | G2RL-1A-E2-CV-HA DC12 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2RL-1A-E2-CV-HA |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 23A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | EN60335-1, UL1446 |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- Operates with a 12V dc coil voltage and a coil power consumption of 400mW.
- Handles a switching current up to 23A with a silver alloy contact material for reliable conductivity.
- Designed to switch voltages up to 250V AC and 60V DC.
- Features a coil resistance of 360 ohms and coil current of 33.3 mA.
- Suitable for operating temperatures from -40°C to a maximum of 105°C.
- Compact dimensions with length 50mm, width 10mm, and height 16.7mm.
- Equipped with screw terminal type for secure electrical connections.
- Contact resistance is low at 100mΩ ensuring efficient switching.
Product Description
Omron G2RL-1A-E2-CV-HA DC12 power relay is a compact, high-performance SPST relay designed for PCB mounting applications requiring high switching current capacities and high thermal resilience. Operating with a 12V dc coil voltage and low coil power of 400mW, this relay excels in controlling loads up to 23A in challenging industrial and commercial environments.
The relay features a silver alloy contact material that provides robust conductivity with a minimal contact resistance of 100mΩ, contributing to efficient and reliable switching performance. It is capable of handling AC switching voltages up to 250V and DC switching voltages up to 60V, making it versatile for various electrical control applications.
Dimensionally compact at 50mm in length, 10mm in width, and 16.7mm in height, the Omron G2RL-1A-E2-CV-HA DC12 supports easy PCB integration while maintaining operational reliability across a wide temperature range from -40°C to 105°C. The screw terminal configuration enhances secure connectivity and ease of installation.
Designed to meet recognized safety and industrial standards EN60335-1 and UL1446, this relay is suitable for use in industrial automation, electrical equipment controls, HVAC systems, and other applications that demand robust relay performance.
The product is manufactured in Malaysia under strict quality controls, ensuring superior durability and operational excellence in demanding settings. Omron's G2RL series is well-regarded for its reliable operation in high-current and high-temperature environments.
Operates on a 12V DC coil voltage with 400mW power consumption. Supports switching current of 23A with silver alloy contacts. Switches AC voltages up to 250V and DC voltages up to 60V. Coil resistance specified at 360Ω with a coil current of 33.3 mA.
Terminal type is screw for secure wiring connections. Compact size with dimensions 50mm x 10mm x 16.7mm (L x W x H). Operating temperature ranges from -40°C to 105°C. Compliance with EN60335-1 and UL1446 standards. Low contact resistance of 100mΩ ensures efficient switching.
Manufactured in Malaysia with high-quality standards.
For professionals seeking reliable Power Relays for industrial and electrical control systems, the Omron G2RL-1A-E2-CV-HA DC12 offers a compact, high-current solution certified to international standards, ensuring operational safety and longevity. Explore more from Omron and related products in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum switching current of 23A.
It operates with a 12V DC coil voltage.
The relay has compact dimensions of 50mm in length, 10mm in width, and 16.7mm in height.
It features a Single Pole Single Throw (SPST) contact configuration.
It can switch AC voltages up to 250V and DC voltages up to 60V.
The coil power consumption is 400mW.
The contact material is silver alloy, which provides reliable conductivity.
It can operate in temperatures ranging from -40°C to a maximum of 105°C.
It is equipped with screw terminals for secure electrical connections.
The coil resistance is specified at 360 ohms.
It complies with EN60335-1 and UL1446 standards.
It is manufactured in Malaysia under strict quality controls.
