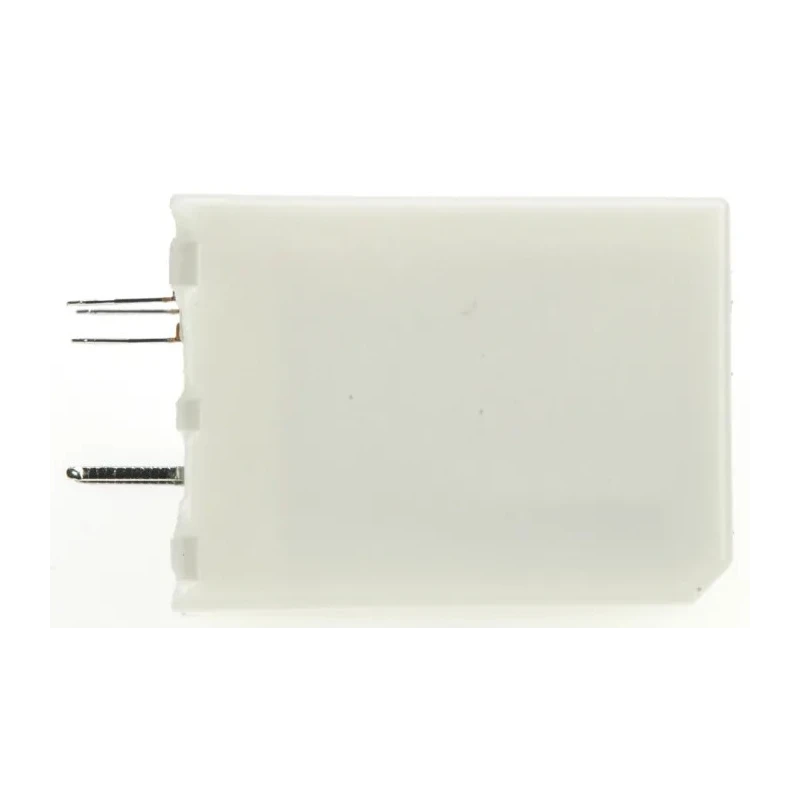

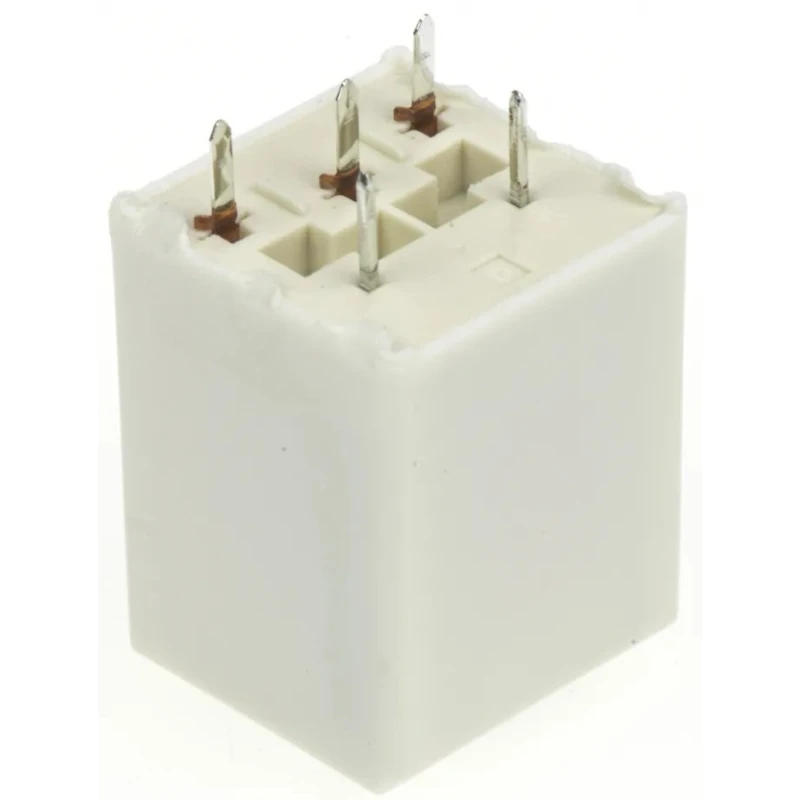

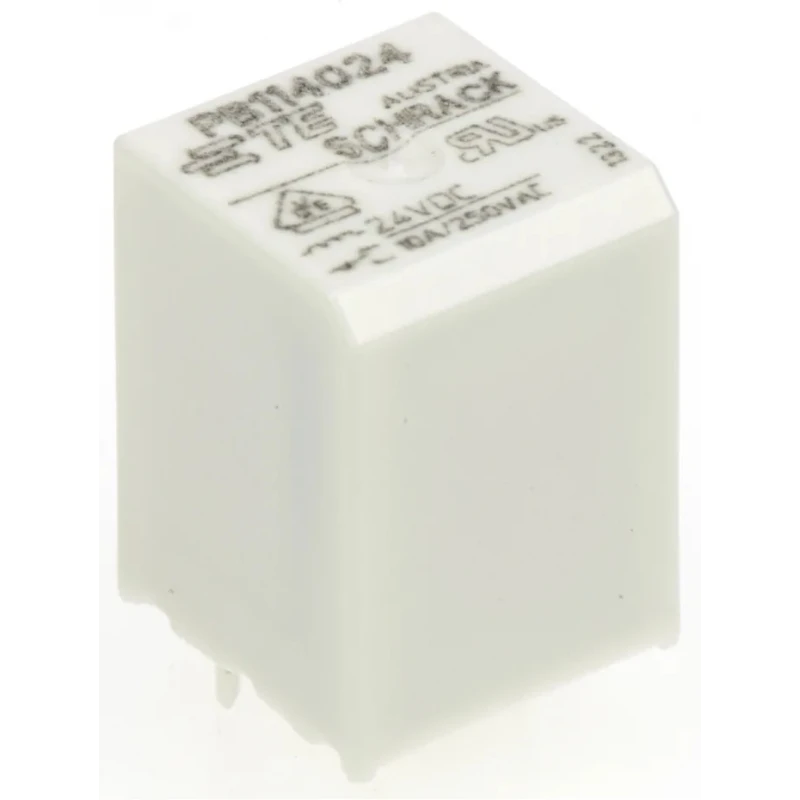

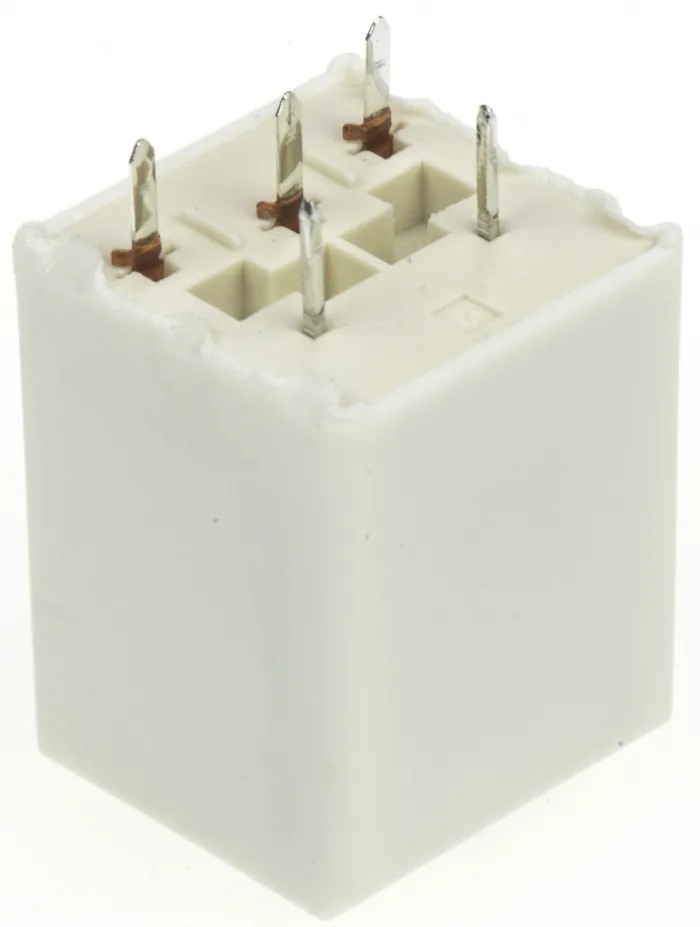

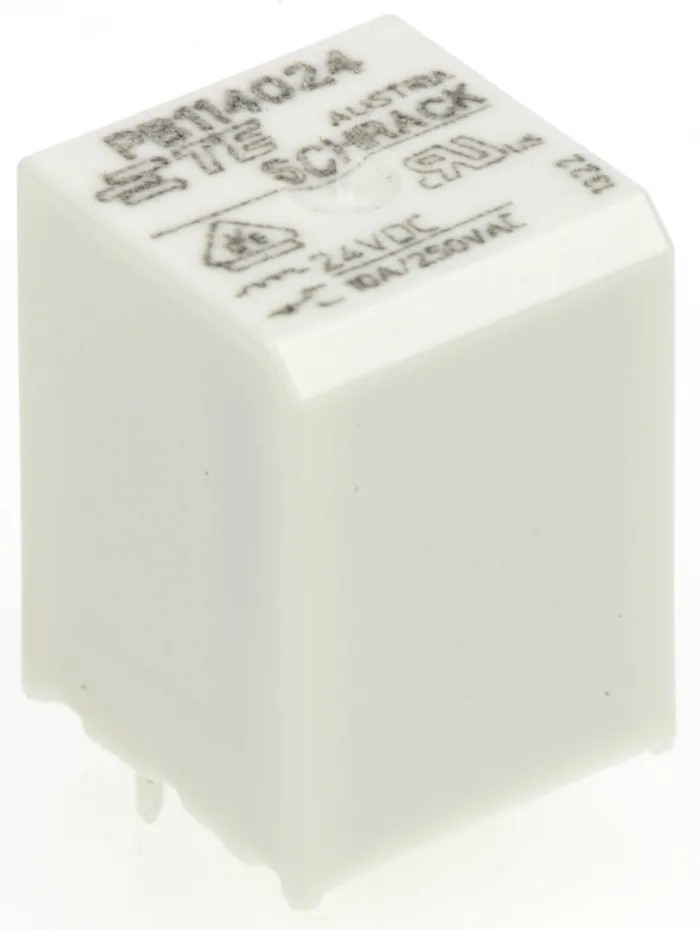

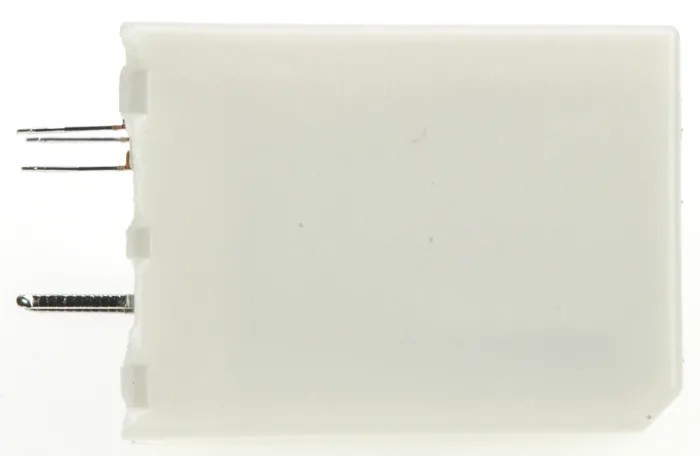

TE Connectivity Power Relay PCB Mount SPDT 24V dc Coil 10A Switching Current PB114024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 20mm |
| Temperature range | - 40 to 85°C |
| Length | 15mm |
| Model | PB114024 |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | PB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.6kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 360mW |
| Isolation Coil To Contact | 2500V |
| Clearance/creepage | ≥0.75mm |
Key Features
- Compact miniature power PCB relay with a high switching capacity.
- Coil power consumption is 360mW ensuring low energy use.
- Can switch current up to 10A at voltages up to 400V ac.
- Features solder terminal type for secure PCB mounting.
- Operates reliably in temperature range from -40°C to 85°C.
- Constructed with silver alloy contacts for high conductivity and durability.
- Includes safety features like clearance/creepage distance ≥0.75mm and 2500V isolation between coil and contacts.
- RoHS compliant product ensuring environmentally friendly manufacturing.
Product Description
TE Connectivity PB114024 Power Relay is a miniature PCB mount relay designed for reliable switching in various industrial and commercial applications. Featuring a 24V dc coil and a Single Pole Double Throw (SPDT) contact configuration, this relay supports a switching current of up to 10A, making it suitable for moderate power control tasks.

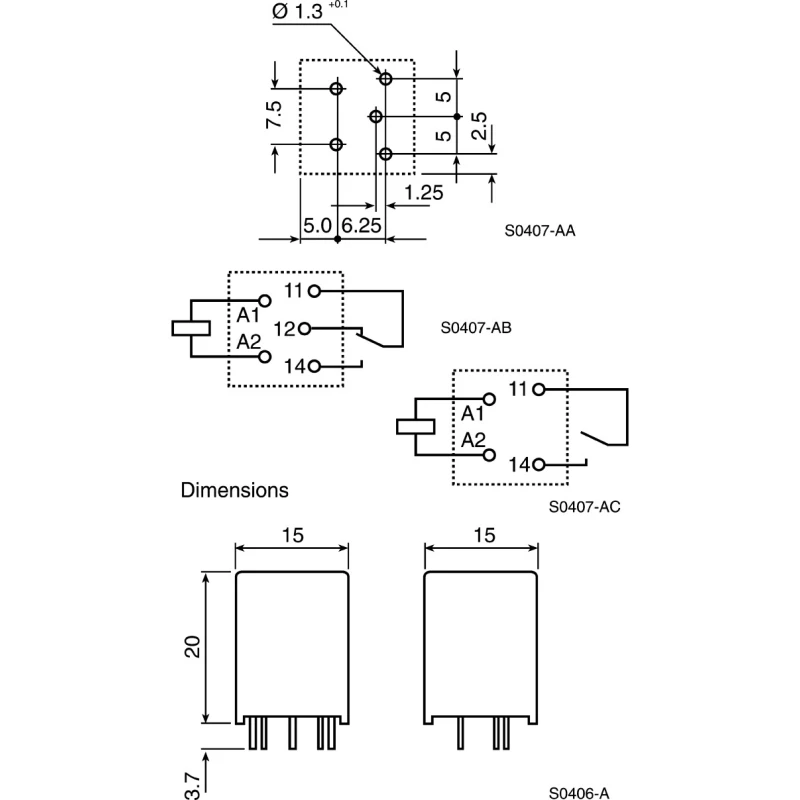

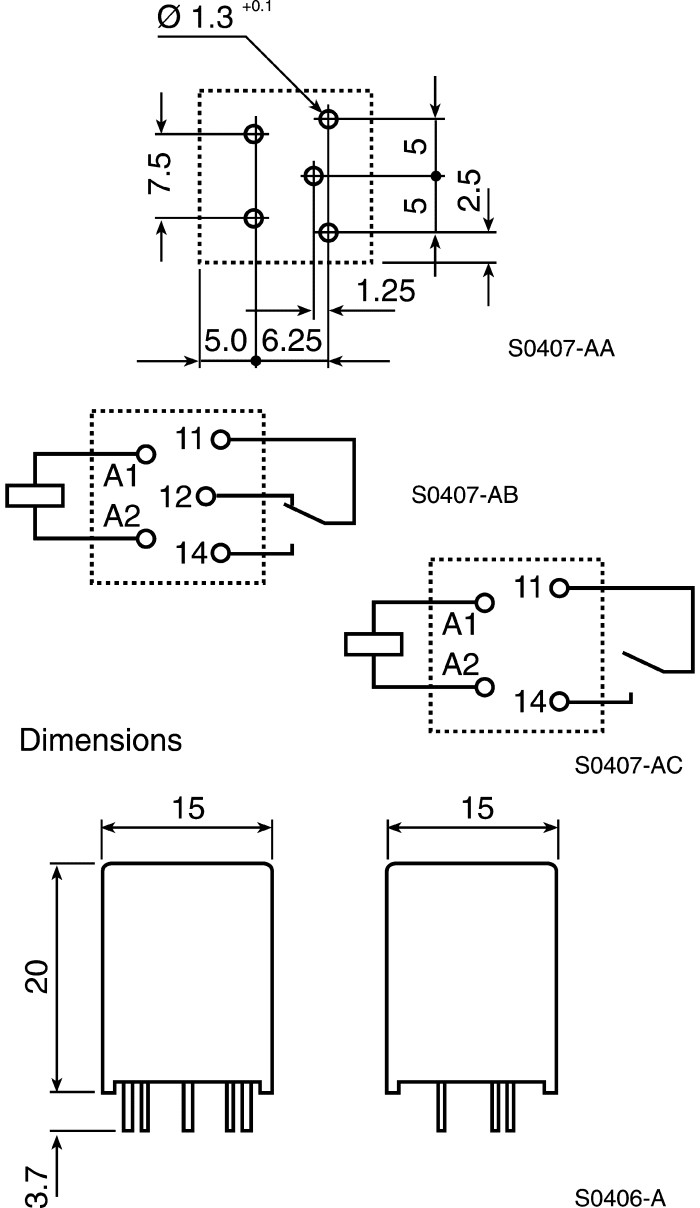

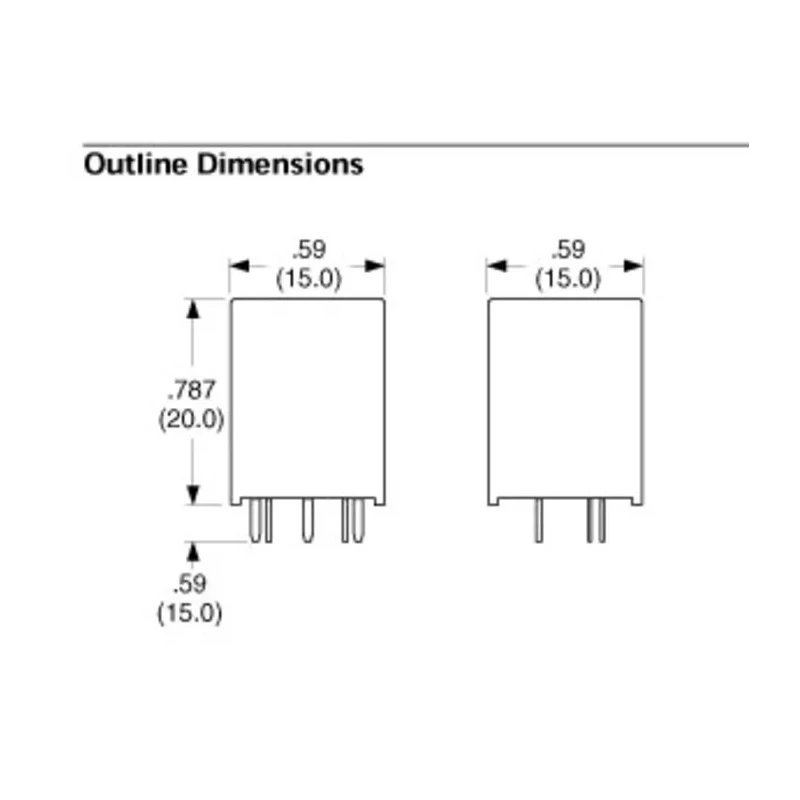

This relay offers a compact and robust design with dimensions of 15mm width, 15mm length, and 20mm height, facilitating easy integration into densely packed PCB layouts. The coil power consumption is only 360mW, which contributes to energy efficiency in operational circuits.
The relay is built with nickel silver 90/10 cadmium-free contacts, finished with a silver alloy material to ensure excellent electrical conductivity and durability. It complies with RoHS environmental directives, indicating it is manufactured without hazardous substances.
With a temperature operational range from -40°C to 85°C, the PB114024 can withstand harsh environments. Safety features include a clearance and creepage distance of ≥0.75mm, and isolation voltage between coil and contact up to 2500V, meeting standards for electrical safety.
Typical applications include white goods, small home appliances, heating and temperature controllers, and other electrical control systems requiring reliable power relay switching. This product combines compact size with high performance and industry-standard approval for versatile industrial use cases.
Compact miniature power PCB relay with a high switching capacity. Coil power consumption is 360mW ensuring low energy use. Can switch current up to 10A at voltages up to 400V ac. Features solder terminal type for secure PCB mounting.
Operates reliably in temperature range from -40°C to 85°C. Constructed with silver alloy contacts for high conductivity and durability. Includes safety features like clearance/creepage distance ≥0.75mm and 2500V isolation between coil and contacts.
Dimensions are compact at 15mm width, 15mm length, and 20mm height. RoHS compliant product ensuring environmentally friendly manufacturing. Browse the Electronics & Electricals category at EnvMart for more Power Relays and related components from trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can switch a current of up to 10A.
The coil voltage for this relay is 24V dc.
It has dimensions of 15mm in width, 15mm in length, and 20mm in height.
The relay operates reliably within a temperature range of -40°C to 85°C.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The coil power consumption is 360mW, contributing to energy efficiency.
The isolation voltage between the coil and contacts is up to 2500V.
The contacts are constructed from silver alloy, ensuring high conductivity and durability.
It features solder terminals for secure PCB mounting.
Yes, this product is RoHS compliant, indicating it is manufactured without hazardous substances.
Typical applications include white goods, small home appliances, and heating and temperature controllers.
The country of origin for this relay is Austria.
