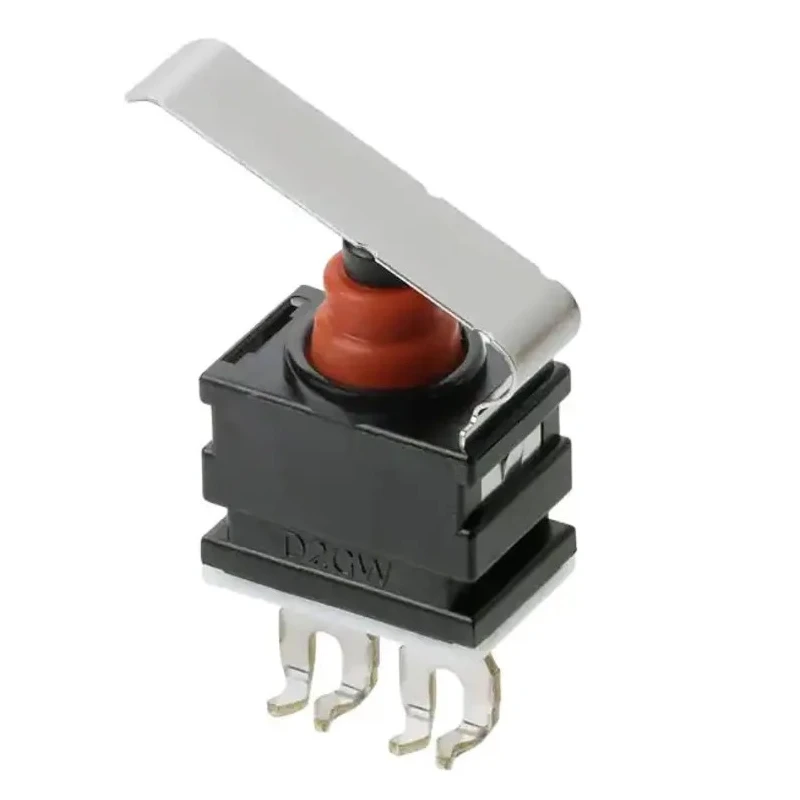

Omron Hinge Lever Subminiature Micro Switch SPST-NC, Wire Terminal, 1mA Current, 13.5 V DC, IP67 D2GW-SC1L2M
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | D2GW-SC1L2M |
| IP Rating | IP67 |
| Series | D2GW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST-NC |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Wire |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 13.5V dc |
| Switch Contact Current | 1mA |
Key Features
- The switch has a SPST-NC contact configuration suitable for reliable single-pole single-throw normally closed operation.
- It provides an IP67 rating ensuring robust protection against dust and water ingress.
- Operating temperature range from -40°C to 85°C accommodates use in harsh environments.
- The compact sealed design supports ultra subminiature form factors with quiet sliding operation.
- Its symmetrical hinge lever actuator offers versatile mounting and actuator compatibility.
- The micro-load support ensures high contact reliability even at low currents.
- Press-fit terminals allow solder-less contact for ease of installation.
- The product is RoHS compliant, conforming to environmental standards.
Product Description
Omron D2GW-SC1L2M is a highly reliable Hinge Lever Subminiature Micro Switch with a wire terminal suitable for precision electronic control applications. It features a low contact current rating of 1mA and a contact voltage of 13.5 V DC. The SPST-NC (single-pole single-throw normally closed) contact configuration ensures dependable switching performance.
This sealed ultra subminiature switch part of the D2GW series exhibits a compact design with a symmetrical shape, simplifying integration and enabling versatile actuator options. The sliding structure of the hinge lever actuator delivers quiet operation, while the robust IP67 enclosure rating provides excellent protection against dust ingress and water exposure, making it suitable for industrial, automation, electrical, and control systems.
The switch supports a wide operating temperature range from -40°C to 85°C, allowing functionality in extreme temperature environments. Its press-fit terminal design facilitates solder-less connections, improving assembly efficiency.
The device complies with RoHS standards and is manufactured in China. Its precise micro-load switch capability is ideal for applications requiring reliable contact at very low currents.
Applications include industrial automation, HVAC systems, electronic device controls, and instrumentation requiring compact, robust micro switch solutions with high durability and environmental protection.
The switch features a single-pole single-throw normally closed contact configuration. It is equipped with a hinge lever actuator for versatile operational use. The IP67 rating certifies its protection against dust and immersion.
Low contact current and voltage make it suitable for micro-load switching. Operating temperature range from -40°C to 85°C supports wide-use environments. Press-fit terminals allow for easy and solder-less installation. RoHS compliant ensuring environmentally friendly manufacturing.
Browse the Electronics & Electricals category at EnvMart for more switch and Micro Switch products designed to fit diverse industrial and electronic device needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a SPST-NC (single-pole single-throw normally closed) contact configuration, ensuring reliable switching performance.
The switch operates effectively within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
It has an IP67 rating, providing robust protection against dust and water ingress.
The switch supports a maximum contact current of 1mA, which is suitable for micro-load switching applications.
This unit is equipped with a hinge lever actuator, allowing for versatile operational use and mounting options.
It features wire terminals that allow for solder-less connections, improving assembly efficiency during installation.
Specific dimensions are not provided, but it is designed as an ultra subminiature switch, emphasizing compactness.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing practices.
It is suitable for applications in industrial automation, HVAC systems, electronic device controls, and instrumentation requiring compact and robust micro switch solutions.
The contact voltage rating for this switch is 13.5V DC, making it suitable for low voltage applications.
The switch is manufactured in China, as indicated by its country of origin.
This model is part of the D2GW series, which features a range of subminiature micro switches.
