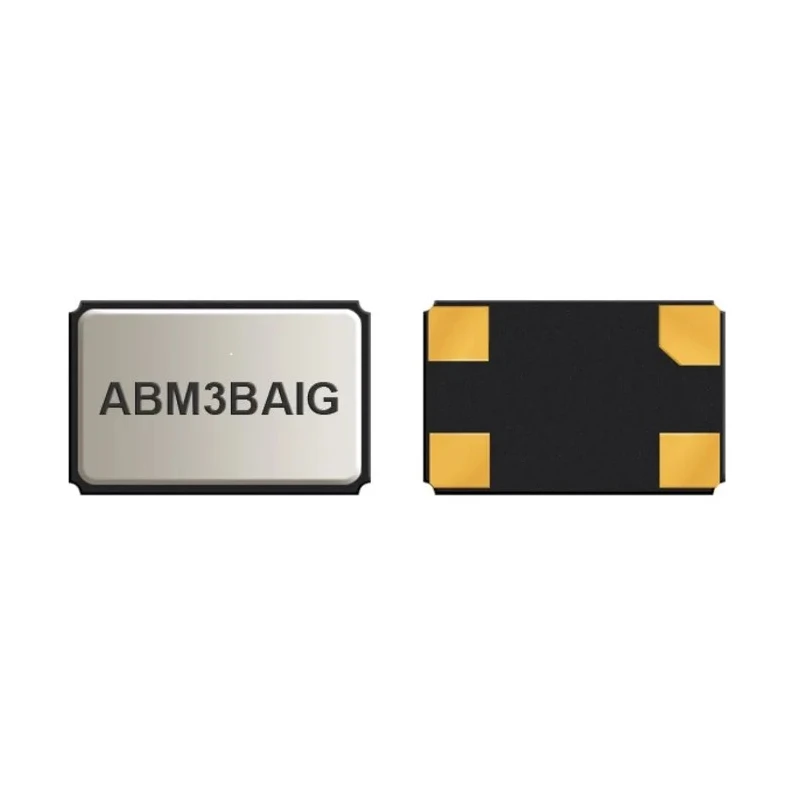

Abracon 8 MHz Surface Mount 4-Pin Crystal Unit ±50 ppm 0.9 mm Height 5 mm Length 3.2 mm Width ABM3BAIG-8.000MHZ-1Z-T

Abracon ABM3BAIG-8.000MHZ-1Z-T 8 MHz Surface Mount 4-Pin Crystal Unit is an automotive and industrial-grade ceramic base SMD crystal unit designed for precision frequency control in a wide range of electronic systems. It features a frequency tolerance of ±50 ppm and frequency stability of ±100 ppm, ensuring reliable oscillation in demanding environments.

Measuring 5 mm in length, 3.2 mm in width, and 0.9 mm in height, this compact crystal unit suits applications requiring space-efficient design without compromising performance. Its surface mount 4-pin package facilitates easy integration into printed circuit boards, enhancing automotive infotainment systems, keyless entry and startup mechanisms, GPS and navigation, advanced driver assistance systems (ADAS), and vehicle-to-vehicle communication.

Certified to the AEC-Q200 automotive standard and built with a hermetically seam-sealed ceramic package, the unit operates reliably within a temperature range of -40°C to +125°C, with Grade 0 variants available up to +150°C on request. It complies with RoHS II and ISO9001-2015 standards, emphasizing environmental safety and quality manufacturing.

The ABM3BAIG series provides 18 pF load capacitance and 150 Ω series resistance, offering stable oscillation characteristics suitable for powertrain and drive control, power conversion, and industrial automation. This product is ideal for use in automotive, industrial, manufacturing, HVAC, and electronic control applications requiring robust and accurate timing elements.

Key features include compact surface mount design, automotive-grade reliability, wide operating temperature range, and conformance to multiple international standards. The crystal unit is also Pb-free, supporting compliance with environmental regulations. Abracon’s commitment to quality ensures consistent product performance in advanced electronic systems.

This crystal unit operates at a standard frequency of 8 MHz with a load capacitance of 18 pF. Surface mount package with 4 pins allows compact, reliable PCB integration. Dimensions are 5 mm length, 3.2 mm width, and 0.9 mm height for space-saving design.

Features a frequency stability of ±100 ppm suitable for automotive and industrial applications. Meets automotive standard AEC-Q200 and is RoHS II and ISO9001-2015 compliant. Operating temperature ranges from -40°C to +125°C, with Grade 0 available up to +150°C on request.

Hermetically seam-sealed ceramic package ensures durability and long-term stability. Ideal for infotainment, keyless entry, GPS navigation, advanced driver assistance systems, and industrial control. Offers series resistance of 150 Ω for stable oscillation performance.

This Abracon Crystal Unit is an excellent choice for engineers and system designers targeting automotive and industrial markets who require a high-quality, dependable frequency source. For browsing more electronic components, explore the Electronics & Electricals category on EnvMart.
