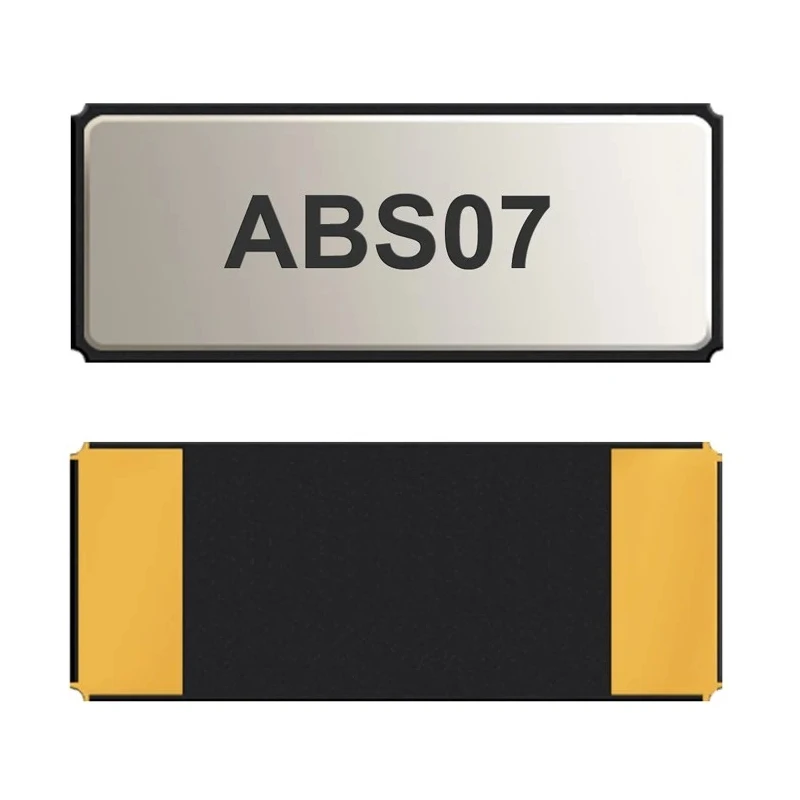

Abracon 32.768 MHz Crystal Unit Surface Mount 7 pF Load Capacitance 2-Pin 3.2 mm x 1.5 mm x 0.9 mm ABS07-32.768KHZ-7-1-T

The Abracon ABS07-32.768KHZ-7-1-T crystal unit is a high precision, low profile surface mount device optimized for frequency control in diverse electronic applications. Operating at 32.768 MHz with ±20 ppm frequency tolerance, this model ensures accurate timing in communication and measuring equipment.

This crystal features a compact surface mount package measuring 3.2 mm in length, 1.5 mm in width, and only 0.9 mm in height, making it ideal for high-density circuit boards and modern compact PCBs. The device has 2 pins and is supplied in tape and reel packaging designed for automated assembly lines.

The load capacitance of 7 pF and an equivalent series resistance of 70 kΩ enable it to maintain stable oscillation characteristics necessary for low frequency applications, including PDAs, smartphones, and wireless communication modules. It is rated for operation in industrial environments with temperature tolerance from -40°C up to 85°C, providing reliable performance under varied conditions.

The ceramic seam-sealed design offers robust environmental and thermal resistance, extending durability and operational lifespan. This crystal unit is RoHS compliant, ensuring it meets environmental regulatory standards.

Common use cases include synchronization, timing control, and stabilization in industrial instrumentation, communication devices, and consumer electronics. Standard frequency of 32.768 MHz with ±20 ppm tolerance. Low profile surface mount package: 3.2 x 1.5 x 0.9 mm.

Load capacitance: 7 pF, ensuring stable operation. Tape and reel packaging for efficient manufacturing integration. Operating temperature range: -40°C to 85°C for industrial applicability. Equivalent series resistance (ESR) of 70 kΩ tuned for low frequency.

Ceramic seam-sealed package for enhanced environmental resistance. RoHS compliant and suitable for commercial and industrial electronic designs. Browse the Electronics Components category on EnvMart for more Abracon Crystal Units and similar precision timing components.
