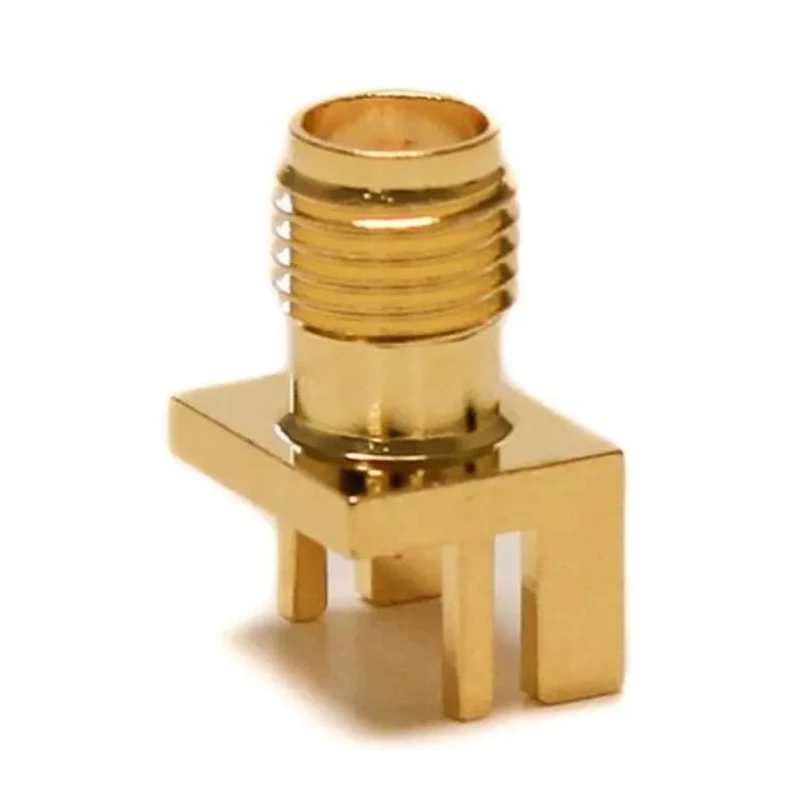

Mueller Electric SMA Series Coaxial Connector Edge Female SMA, 50 Ω, Straight Body Solder BU-1420701841
Specifications
| Country of Origin | China |
|---|---|
| Brand | Mueller Electric |
| Orientation | Straight |
| Model | BU-1420701841 |
| Mount Type | Edge |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Impedance | 50Ω |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Brass |
Key Features
- The connector type is SMA, suitable for coaxial cables requiring a 50 Ω impedance match.
- Gold-plated beryllium copper alloy contacts ensure reliable conductivity and corrosion resistance.
- The body is brass plated, resistant to environmental stress and temperature variations.
- Operating temperature ranges from -65°C to 150°C, supporting a broad range of industrial environments.
- The connector operates at frequencies up to 18 GHz, suitable for high-frequency RF applications.
- Termination type is solder, enabling secure cable attachment for long-lasting performance.
- Designed with an edge mount type and female connector gender for compatibility with specific device interfaces.
- Complies with RoHS standards, ensuring environmental compliance.
Product Description
Mueller Electric BU-1420701841 SMA Series Coaxial Connector Edge Female SMA, 50 Ω, Straight Body Solder is a high-quality coaxial connector engineered for demanding electronic and RF applications. With an impedance of 50 ohms and an operating frequency up to 18 GHz, this connector supports the transmission of signals with minimal loss, making it ideal for laboratory, industrial, telecommunications, and manufacturing environments.
The connector’s body is crafted from brass plated material for durability and corrosion resistance, while the contact is made from gold-plated beryllium copper alloy, providing excellent electrical conductivity and mechanical strength. The termination utilizes solder for reliable and permanent cable attachment.
Designed with a straight body edge mount type, this female SMA connector offers secure mating and compatibility with coaxial cables used in precision RF systems. It withstands harsh temperatures ranging from -65°C to 150°C, ensuring stable performance in various environmental conditions.
The connector type is SMA, suitable for 50 Ω impedance applications. Edge mount type for specific installation requirements. Gold-plated beryllium copper contact material for superior performance. Brass body plating enhances durability and resistance.
Operation frequency supports up to 18 GHz signals. Termination by solder ensures a robust electrical connection. Meets RoHS compliance standards. Female connector gender for compatibility. Manufactured in China under stringent quality controls.
This SMA Series Coaxial Connector by Mueller Electric is suitable for electronic components, power and connectors systems where high-frequency signal integrity and reliability are paramount. It is extensively used in industrial, laboratory, telecommunications, and manufacturing applications requiring robust coaxial connection solutions. Explore more connectors in the Coaxial Connector category to find complementary accessories and alternatives.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This SMA connector operates at frequencies up to 18 GHz, making it suitable for high-frequency RF applications.
The connector has an impedance rating of 50 Ω, which is standard for many RF applications.
The body is made of brass plating, while the contacts are constructed from gold-plated beryllium copper alloy, ensuring reliable conductivity and corrosion resistance.
It can operate within a temperature range of -65°C to 150°C, allowing it to function in various environmental conditions.
The connector uses a solder termination type, which enables secure and permanent cable attachment for reliable performance.
This model features an edge mount type, designed for specific installation requirements in various applications.
Yes, this connector complies with RoHS standards, ensuring it meets environmental compliance requirements.
This connector has a female gender, which is compatible with specific device interfaces.
The connector is manufactured in China under stringent quality controls.
It is extensively used in industrial, laboratory, telecommunications, and manufacturing applications requiring robust coaxial connection solutions.
The orientation of this connector is straight, which is typical for many coaxial applications.
This connector is suitable for coaxial cables that require a 50 Ω impedance match, commonly used in RF applications.
