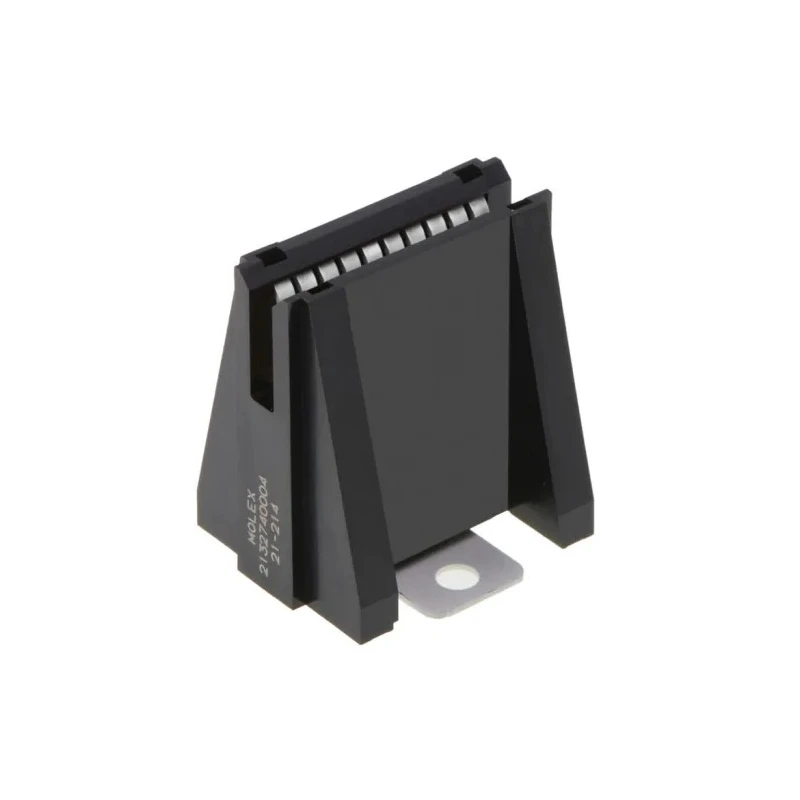

Molex PowerPlane Series Vertical PCB Socket 1-Contact 1 Row Screw Termination 600V 300A 213274-0004

Free Delivery in India | Lowest Global Shipping Charges

Molex PowerPlane Series Vertical PCB Socket 1-Contact 1 Row Screw Termination 600V 300A 213274-0004

Name: Molex PowerPlane Series Vertical PCB Socket 1-Contact 1 Row Screw Termination 600V 300A 213274-0004
Brand: Molex
SKU: 405359
Price: 18.68 USD
Availability: InStock



Category PCB Socket Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	600V
Brand	Molex
Orientation	Vertical
Current	300A
Mount Type	Vertical
Housing Material	Polyester
Contact Material	Copper Alloy
Series	PowerPlane
Termination Type	Screw
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Contact Plating	Silver
Number of Contacts	1
Contact Gender	Male
Connector System	Wire-to-Board

Key Features

The socket features a single contact and single row configuration for precise connection.
High current rating of 300A ensures suitability for demanding power applications.
Rated for voltage up to 600V for industrial and electronic power systems.
Constructed with polyester housing material for durability and insulation.
Screw termination type provides secure and reliable connection.
Operates under temperatures ranging from -40°C to 125°C for versatile environments.
Contact material is a copper alloy plated with silver to reduce resistance and voltage drop.
Designed with vertical mount and orientation to accommodate PCB layouts efficiently.

Product Description

Molex 213274-0004 PowerPlane Series Vertical PCB Socket is a high-performance power connector engineered for demanding electronic and industrial applications. The connector supports a single contact with one row and features screw termination, enabling robust and reliable wire-to-board connections. Rated for 600V and 300A, this connector is suitable for high-current needs within power electronics, manufacturing equipment, and automation systems.

The housing is made from durable polyester material, providing electrical insulation and mechanical stability. The vertical mounting style optimizes PCB assembly and space utilization. With an operating temperature range from -40°C to 125°C, this socket performs reliably under extreme environmental conditions.

The contact is fabricated from high-conductivity copper alloy plated with silver, ensuring a low-resistance interface and minimal voltage drops, enhancing overall system efficiency. The connector complies with common dimensional standards allowing direct replacement with competitor products.

Single contact and single row design. 300A maximum current rating. 600V voltage rating. Screw termination for secure connections. Polyester housing for insulation. Vertical mount and orientation. Copper alloy contact with silver plating.

Wide operating temperature range from -40°C to 125°C. Wire-to-board connector system compatible. Manufactured in China with quality control.

This PowerPlane Series PCB Socket by Molex is ideal for use in power distribution, industrial automation, commercial electronics, and other sectors requiring robust high-current connections. It offers reliable electrical performance and mechanical robustness in compact form factor.
